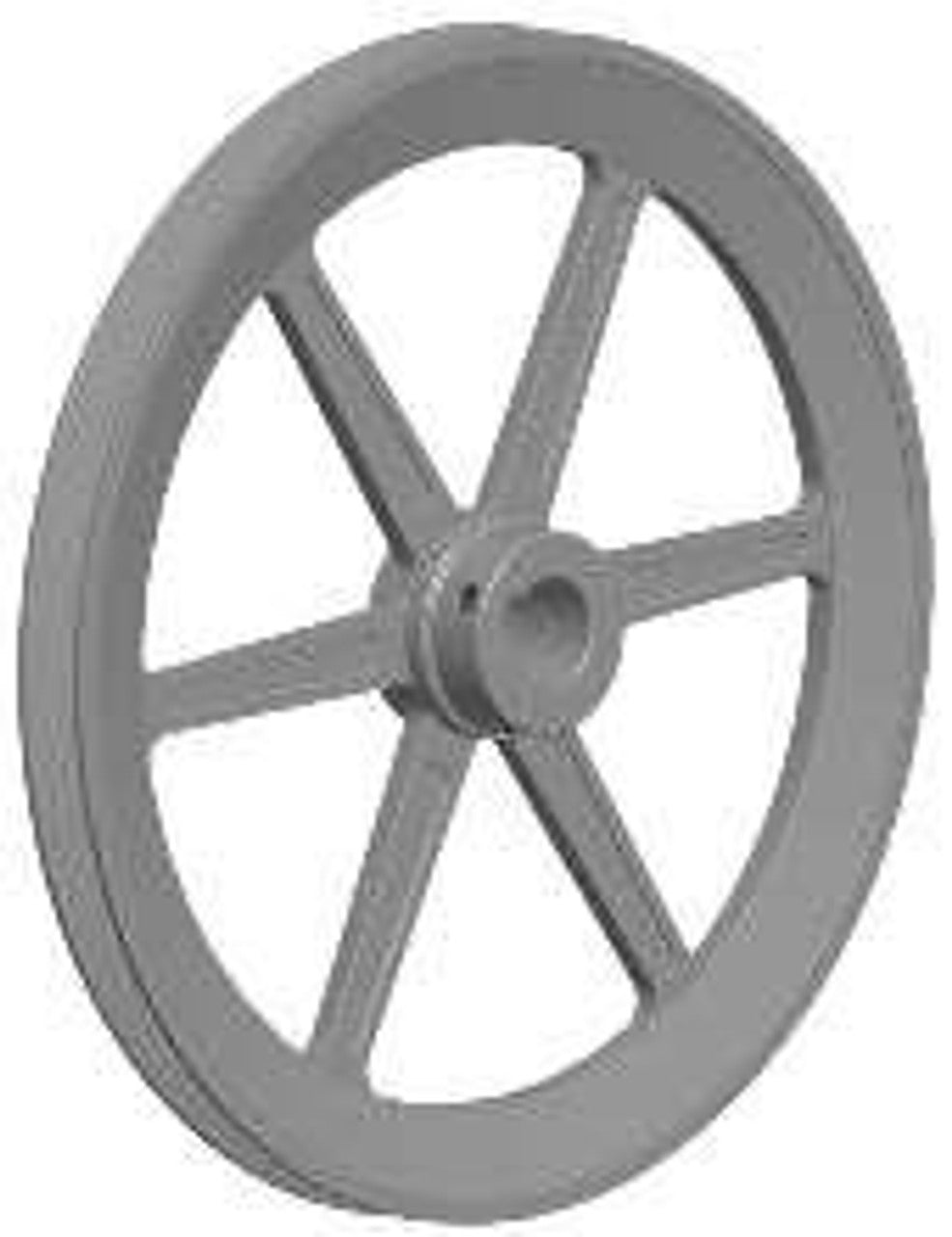

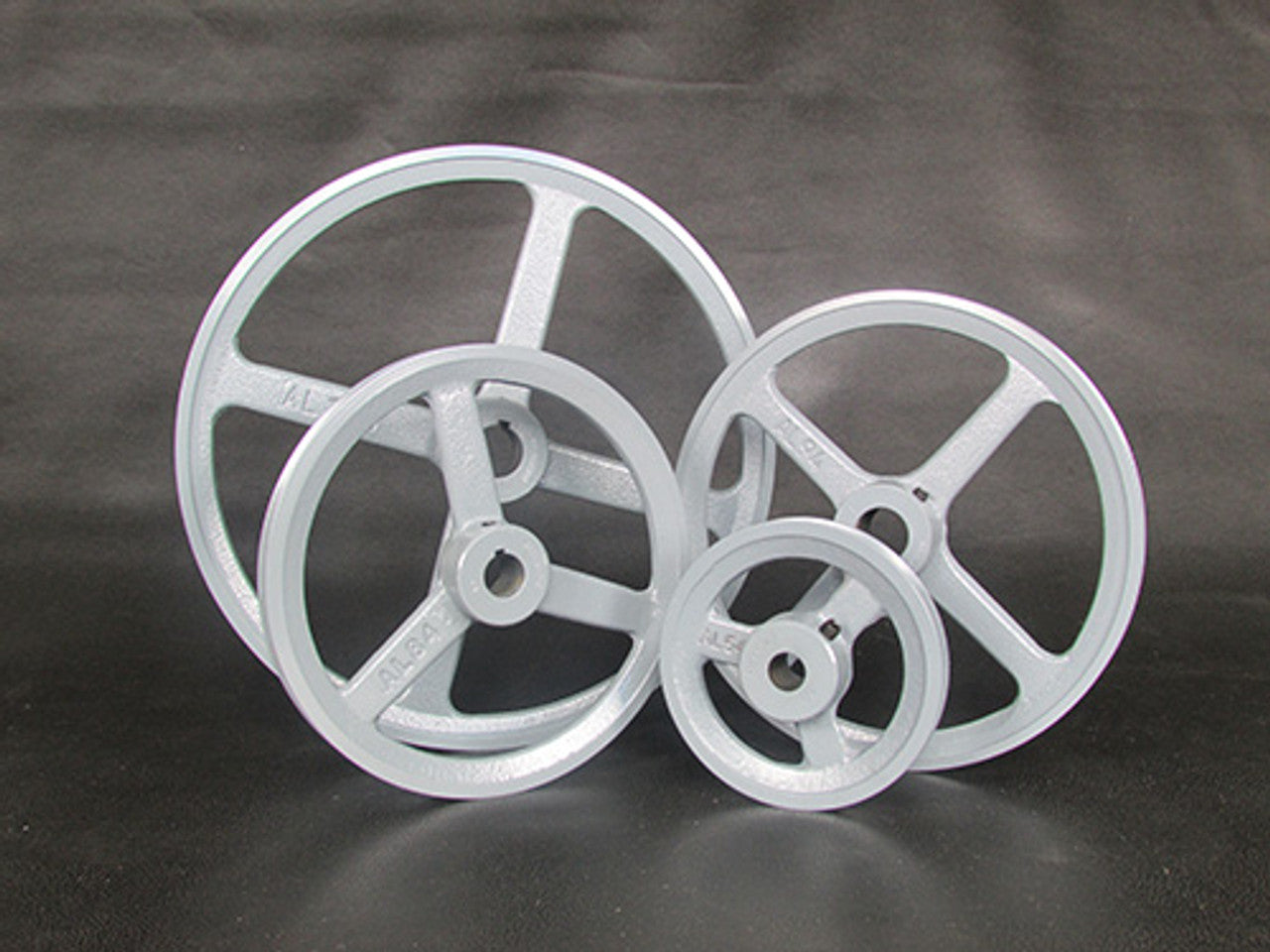

Power Drive AL94-3/4 Fixed Pitch Sheave

Product Description

The Power Drive AL94-3/4 fixed pitch sheave is a cast iron component designed for reliable use. It features a single groove and a fixed bore, making it compatible with A (4L) V-belts.

• Constructed from durable cast iron
• Single groove and fixed bore design
• Outer diameter of 8.93 inches

Product Highlights

This sheave is ideal for HVAC applications and supports effective power transmission in various systems.

Product Information

Standard Information

• Sheave Type: Fixed Pitch Sheave
• Compatible Belt Series: 4L, A

Technical Specifications

• Grooves: Single Groove
• Bore Size: 3/4 Inches
• Outer Diameter: 8.93 Inches
• Material: Cast Iron
• Keyway: Yes
• Cross Reference: MFAL94-3/4
