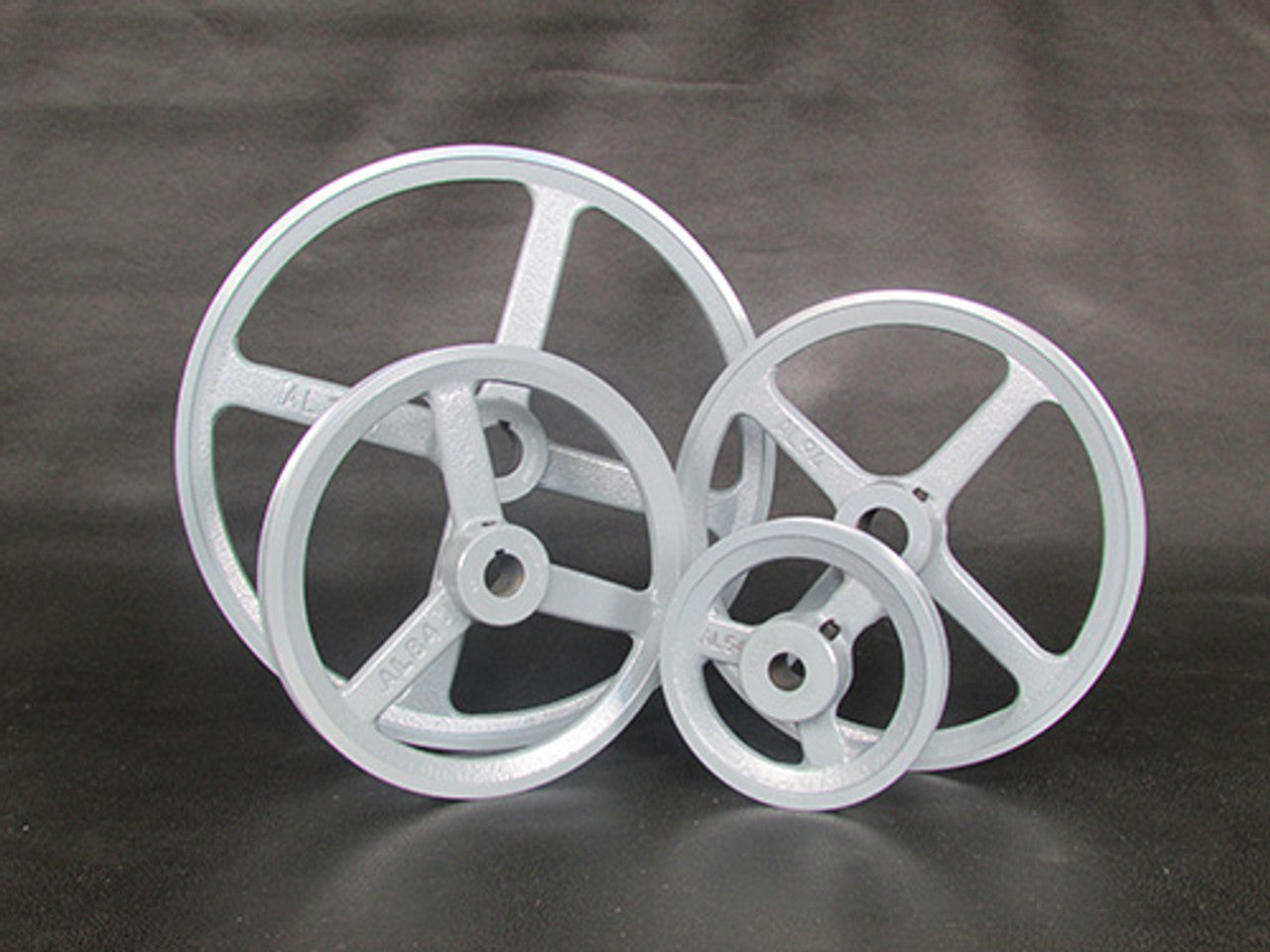

POWER DRIVE AL84-1 Fixed Pitch Sheave

Product Description

The POWER DRIVE AL84-1 Fixed Pitch Sheave is suitable for light-duty applications such as air conditioning units, fans, and furnace blowers. This sheave features a single groove and is made from durable cast iron. It works with A (4L) V-belts and is ideal for various HVAC settings. Available options include sheaves with or without a keyway.

• Single groove design
• Made from cast iron
• Compatible with A (4L) V-belts

Product Highlights

This product is essential for efficient belt operation in HVAC systems and light machinery.

Product Information

Standard Information

• Sheave Type: Fixed Pitch Sheave
• Number of Grooves: 1

Technical Specifications

• Outer Diameter: 7.93 inches
• Bore Size: 1 inch
• Compatible Belt Series: 4L, A
• Material: Cast iron
• Keyway: Yes
• Hub Outer Diameter: 1.70 inches
• P Dimension: 0.468 inches
• L Dimension: 1.062 inches
• F Dimension: 0.593 inches
• Pitch Diameter: 7.78 inches
• Series: AL
