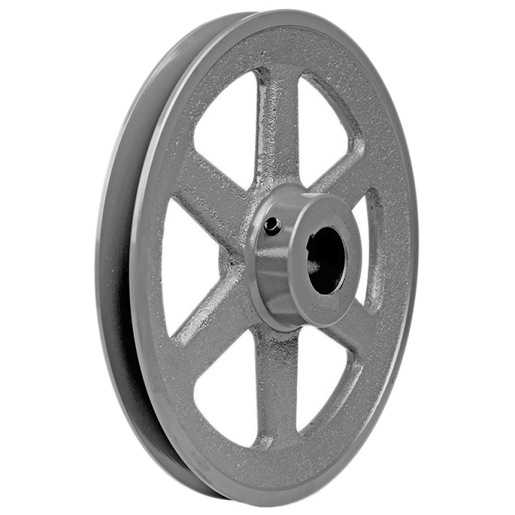

POWER DRIVE AK61-3/4 Transmission Pulley

Product Description

The POWER DRIVE AK61-3/4 is a fixed pitch transmission pulley designed for efficient power transmission. This pulley features a bore size of three-quarters of an inch and is compatible with the 3L, 4L, and A belt series. It is constructed with one groove and includes a keyway for secure attachment.

• Bore size of 0.75 inches
• Compatible with 3L, 4L, and A belt series
• Includes a keyway for secure mounting

Product Highlights

This pulley is ideal for various power transmission setups, ensuring reliable operation under varying conditions.

Product Information

Standard Information

• Manufacturer Item Number: AK61-3/4
• Mounting Method: Finished Bore

Technical Specifications

• Number of Grooves: 1
• Belt Series: 3L | 4L | A
• Keyway: Yes
• Bore: 0.75 inches
• Outside Diameter: 5.95 inches
• Pitch Diameter Minimum: 5.36 inches
• Pitch Diameter Maximum: 5.7 inches
• Belt Width Maximum: 0.5 inches
• Belt Width Minimum: 0.375 inches
