POWER DRIVE AK41H V-Belt Sheave

Product Description

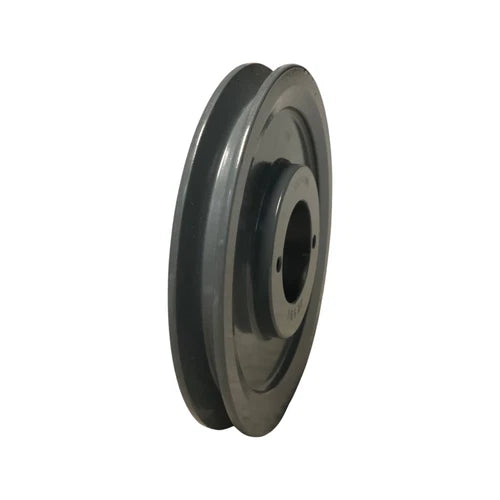

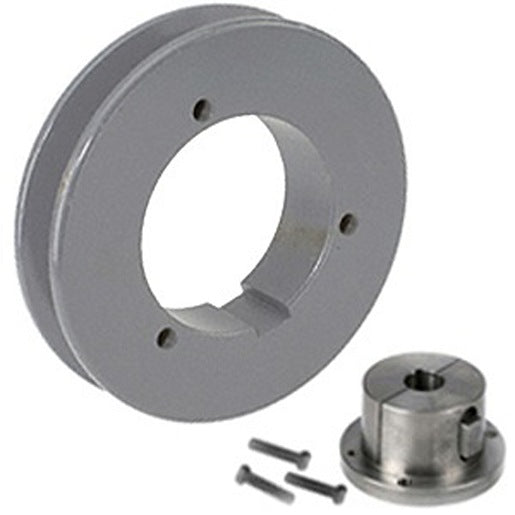

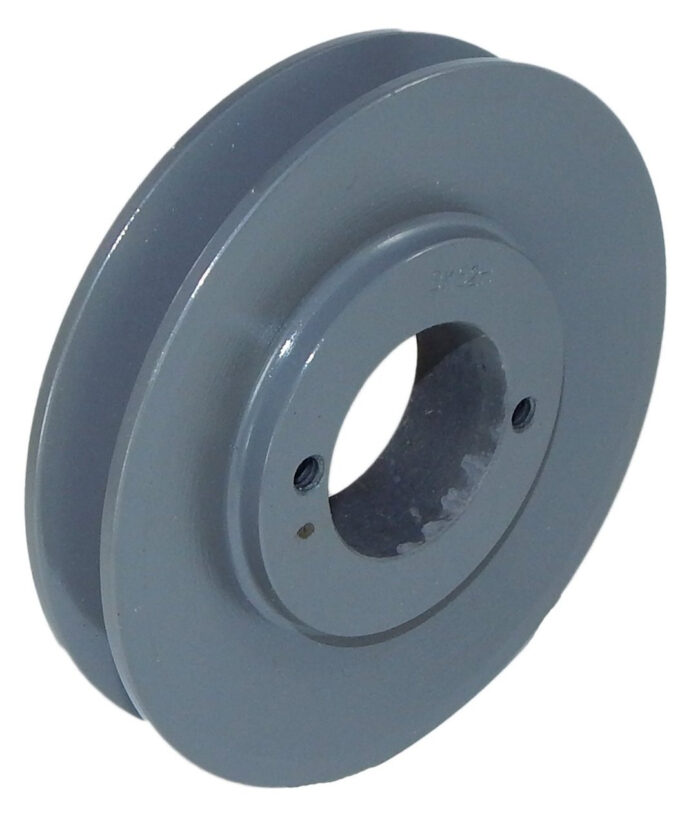

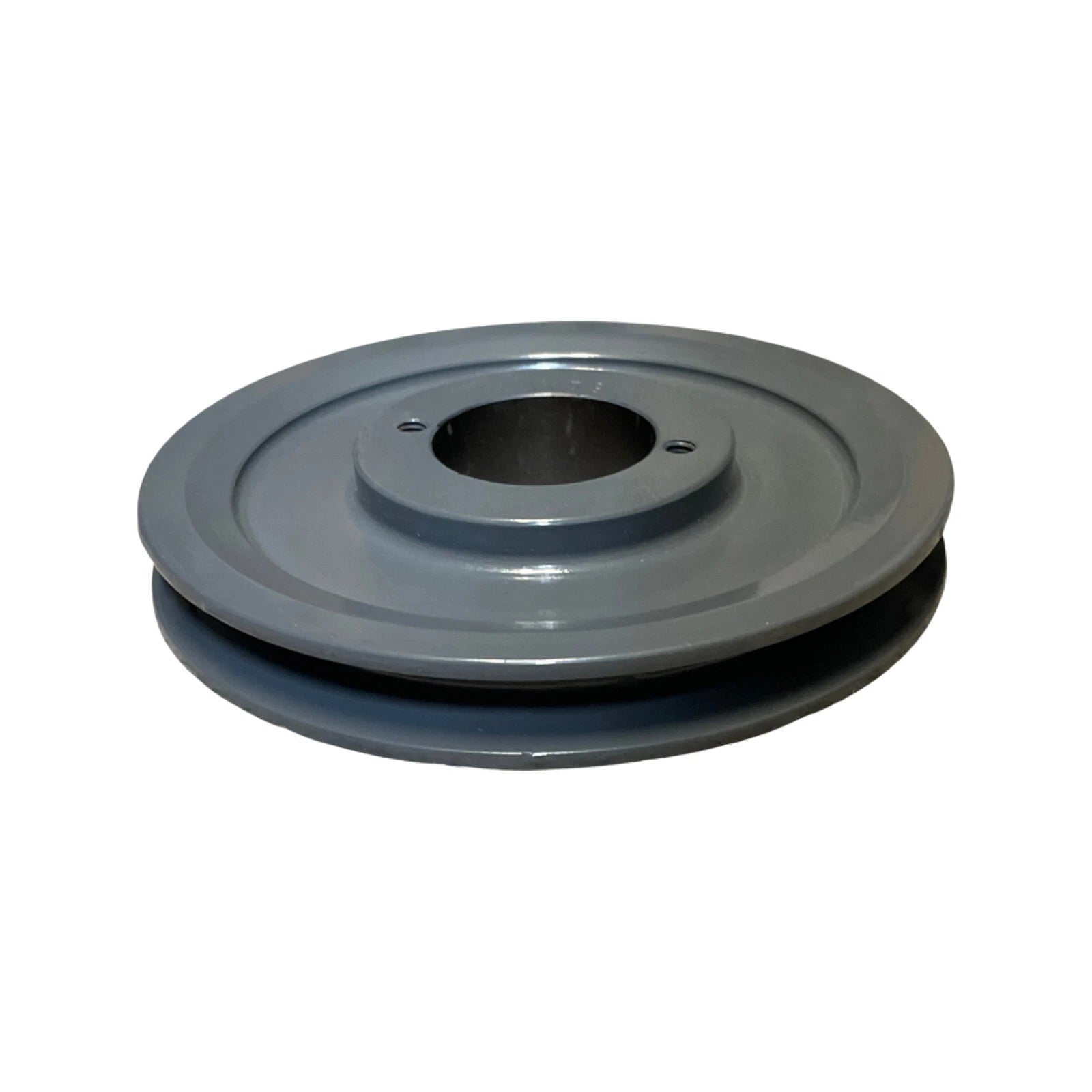

The POWER DRIVE AK41H is a fixed pitch V-belt sheave made for A, 3L, or 4L belts. It has a single groove design that offers efficient performance. The sheave requires an 'H' style bushing for secure mounting. With an outside diameter of approximately three point ninety-five inches, it is crafted from durable cast iron. Quick detachable taper bushings enhance usability.

• Single groove design for A, 3L, and 4L belts.
• Requires 'H' style bushing (sold separately).
• Constructed from cast iron for durability.

Product Highlights

The POWER DRIVE AK41H V-Belt Sheave is ideal for various applications where reliable belt performance is critical. It effectively accommodates different belt types and ensures solid mounting.

Product Information

Standard Information

• Brand: POWER DRIVE
• Manufacturer Part Number: AK41H

Technical Specifications

• Number of Grooves: 1
• Mounting Method: Bushed
• Bushing Size: H
• Belt Series: A, 3L, 4L
• Keyway: Yes
• Outside Diameter: 3.95 inches
• Pitch Diameter Minimum: 3.36 inches
• Bushing Bore Range: 3/8 to 1-1/2 inches
