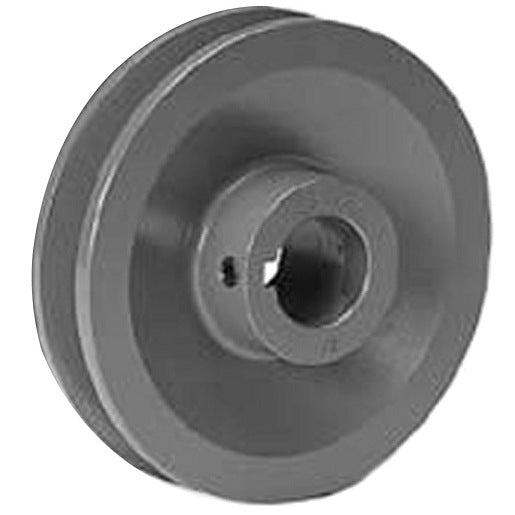

Power Drive AK27-7/8 Fixed Pitch Sheave

Product Description

The Power Drive AK27-7/8 fixed pitch sheave is ideal for power transmission in various mechanical systems. With a bore size of 0.875 inches, it is suitable for use in conjunction with 3L, 4L, and A belt series. This sheave presents a compact design with a total diameter of 2.7 inches, making it versatile for different applications.

• Fixed pitch sheave suitable for multiple belt types.
• Features a finished bore and keyway for secure mounting.
• Compatible with various belt series for enhanced functionality.

Product Highlights

The sheave’s design promotes efficient power transfer and is crafted for durability.

Product Information

Standard Information

• Type: Fixed Pitch Sheave
• Size: AK27-7/8

Technical Specifications

• Number of Grooves: 1
• Mounting Method: Finished Bore
• Bushing Size: No Bushing
• Belt Series: 3L | 4L | A
• Keyway Yes/No: Yes
• Other Features: Web Style
• Belt Width Maximum: 0.5 Inch | 12.7 Millimeter
• Outside Diameter: 2.7 Inch | 68.58 Millimeter
• Pitch Diameter Maximum: 2.5 Inch | 63.5 Millimeter
• Belt Width Minimum: 0.375 Inch | 9.525 Millimeter
• Bore: 0.875 Inch | 22.225 Millimeter
• Pitch Diameter Minimum: 2.16 Inch | 54.864 Millimeter
