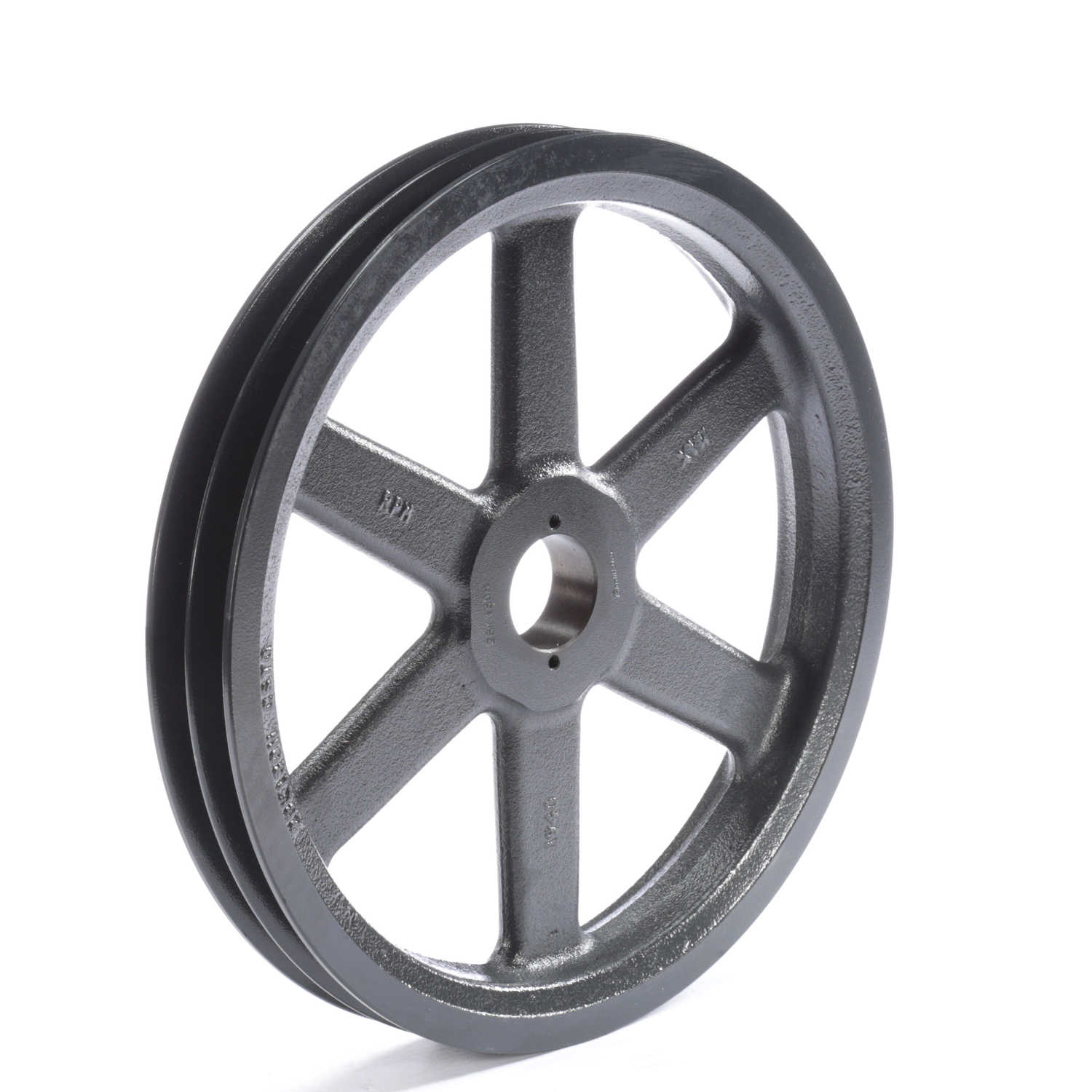

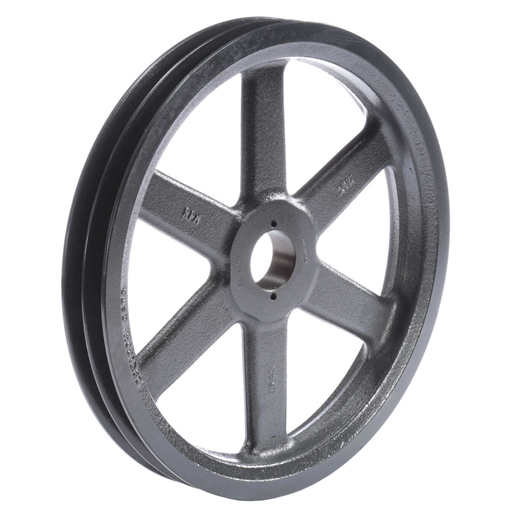

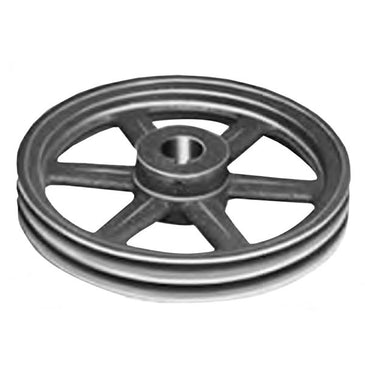

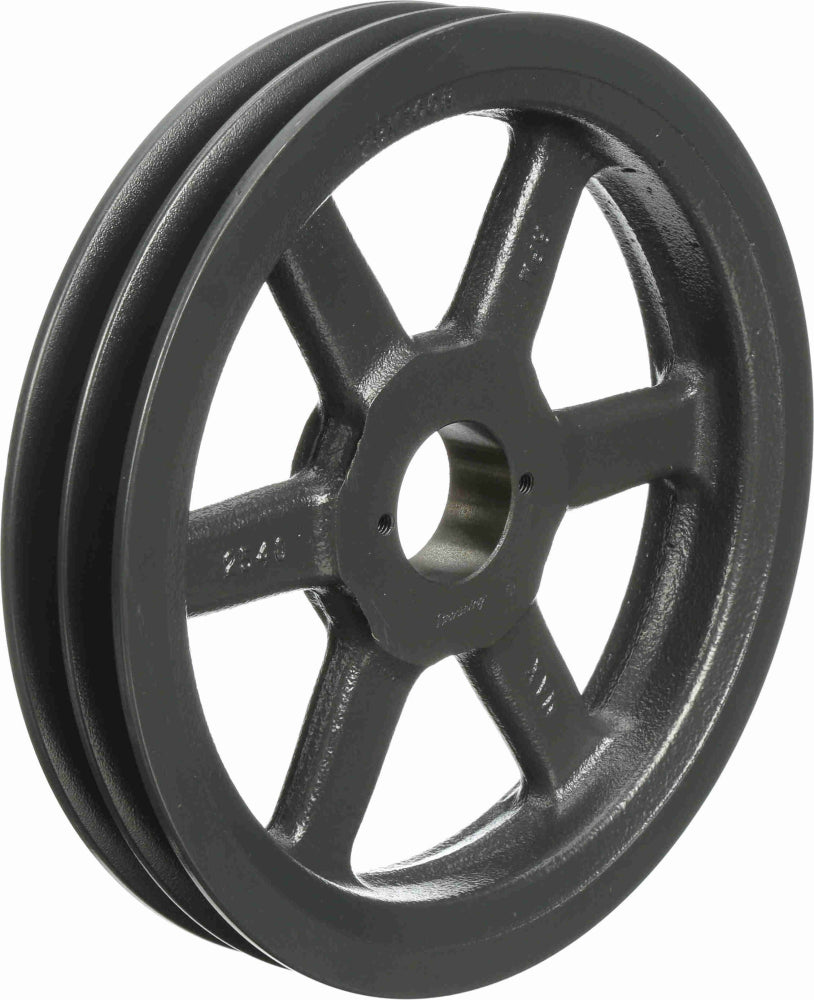

POWER DRIVE 2BK130H V-Belt Sheave

Product Description

The POWER DRIVE 2BK130H is a V-belt sheave designed for power transmission applications. This sheave features two grooves and has an outside diameter of twelve point seventy-five inches. It is bushed and utilizes the H bushing series. The sheave is compatible with various belt series including 4L, A, 5L, and B. Its pitch diameter ranges from twelve inches to twelve point four inches, accommodating a bushing bore range of three eighths to one and a half inches.

• Features two grooves for effective belt engagement.
• Utilizes H bushings for secure fitting.
• Compatible with multiple belt series for versatile applications.

Product Highlights

The 2BK130H is built for reliability in power transmission scenarios.

Product Information

Standard Information

• Manufacturer: Browning
• Part Number: 2BK130H

Technical Specifications

• Number of Grooves: 2
• Mounting Method: Bushed
• Bushing Size: H
• Belt Series: 4L, A, 5L, B
• Keyway: Yes
• Outside Diameter: 12.75 inches
• Pitch Diameter Minimum: 12 inches
• Pitch Diameter Maximum: 12.4 inches
• Bushing Bore Range: 3/8 to 1-1/2 inches
• Bore Type: Requires Bushing
• Estimated Weight: 14.05 lbs
