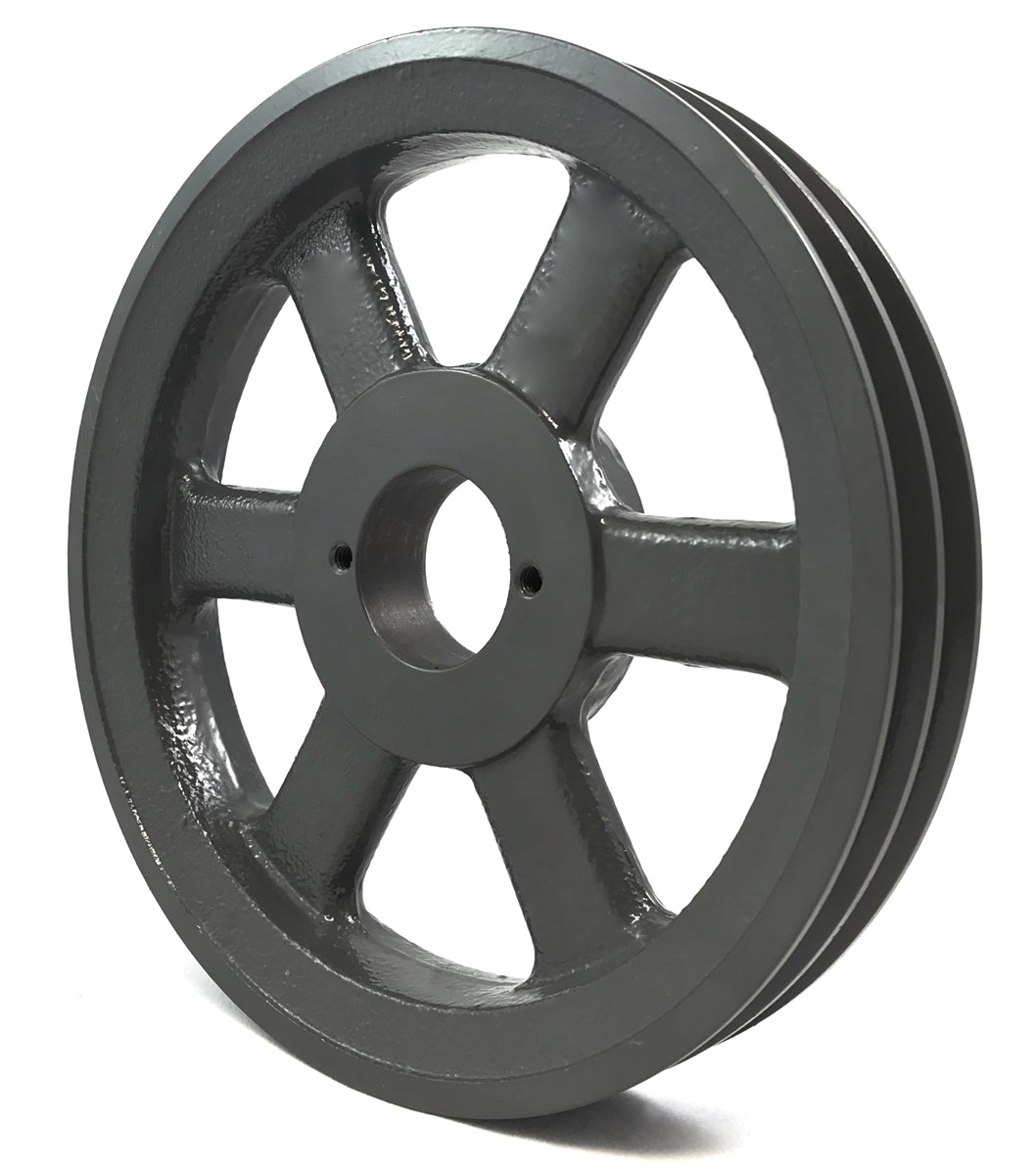

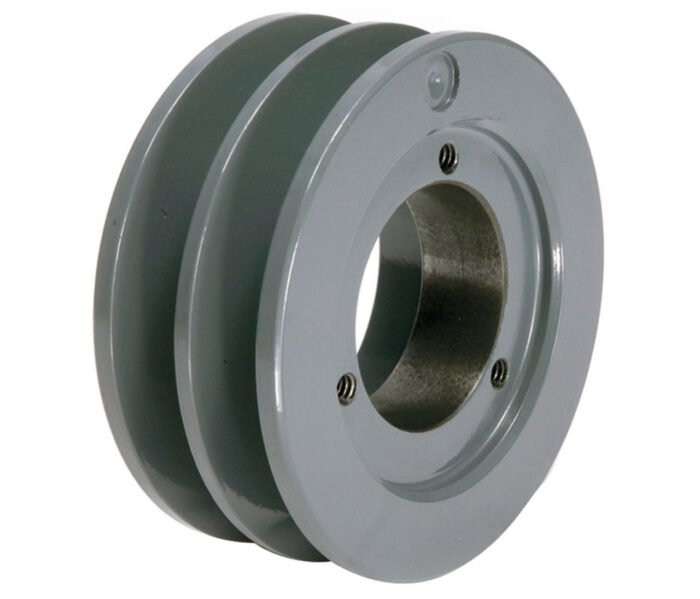

POWER DRIVE 2AK74H Double V-Belt Pulley

Product Description

The POWER DRIVE 2AK74H is a fixed pitch sheave designed with double grooves. It is compatible with A (4L) and B (5L) V-belts, making it a versatile choice for various applications. Constructed from durable cast iron, it meets ARPM Standard IP20 for reliable performance.

• Requires an H style bushing for installation.
• Constructed from grade 35 cast iron.
• Dynamically balanced for optimal function.

Product Highlights

This pulley features a phosphate coated and painted finish for enhanced durability. It can be used with double banded A-Series V-belts, two single A-Series V-belts, or two single 3L-Series V-belts.

Product Information

Standard Information

• Brand: Power Drive
• MPN: 2AK74H

Technical Specifications

• Outside Diameter (O.D.): 7.25 inches
• Pitch Diameter for 4L/A Belts (P.D.): 7.00 inches
• Pitch Diameter for 3L Belts (P.D.): 6.66 inches
• Pulley Type: 3
• Width (O.L.): 1.5 inches
• Weight: 4.9 lbs
• Material: Cast Iron
• Compatible V-Belts: A (4L) & B (5L)
• Bushing Requirement: H Style Bushing
