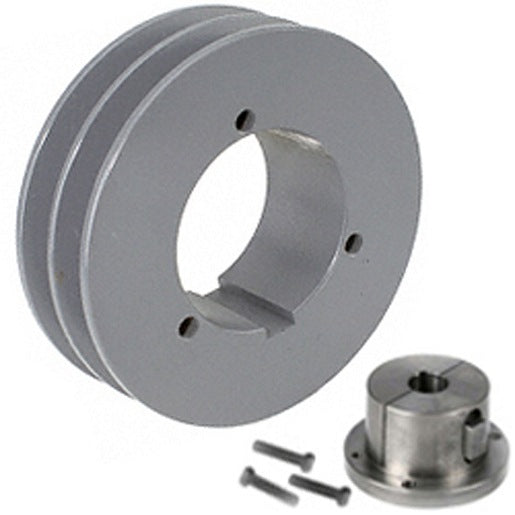

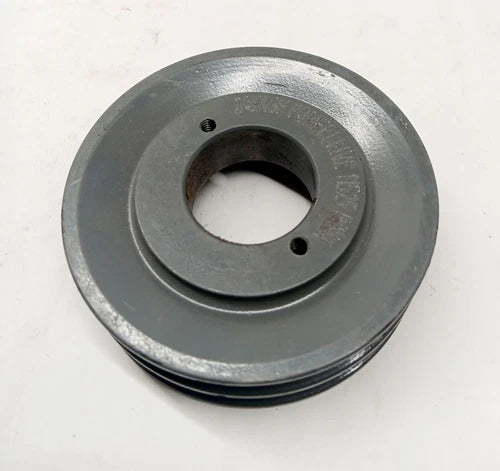

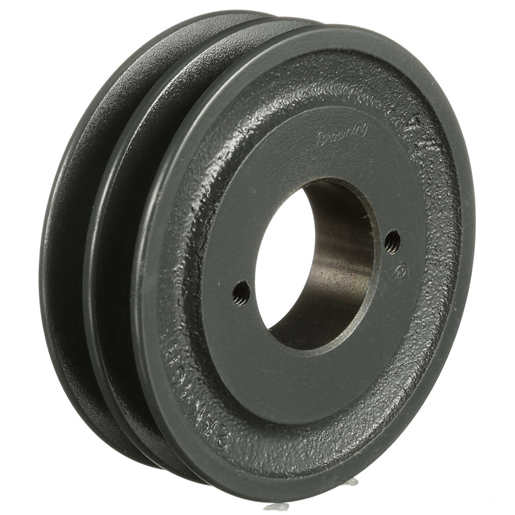

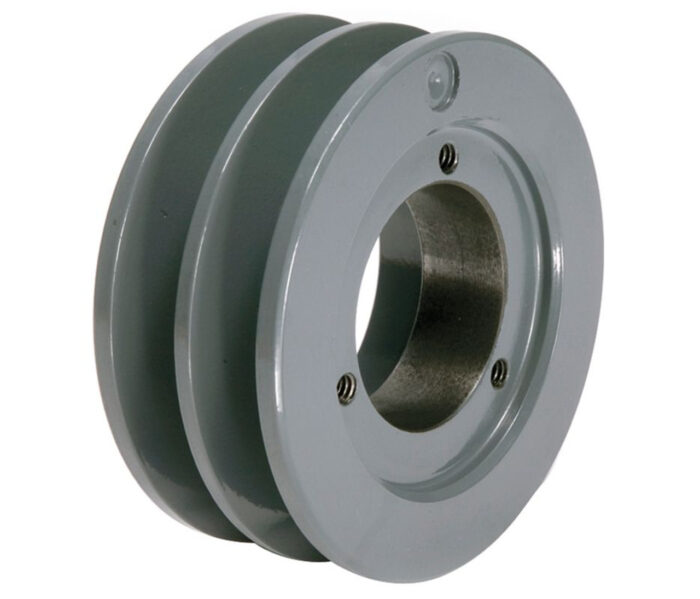

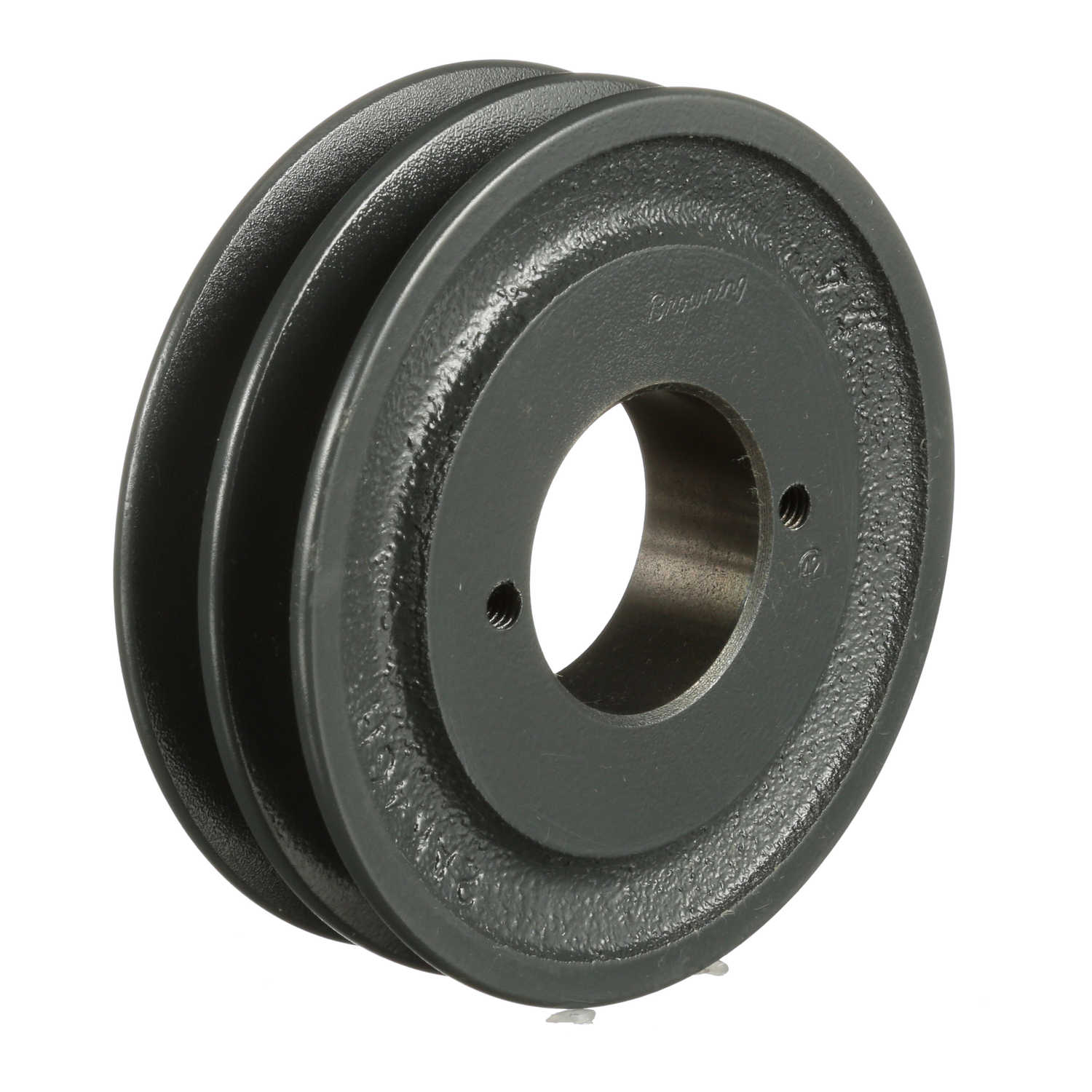

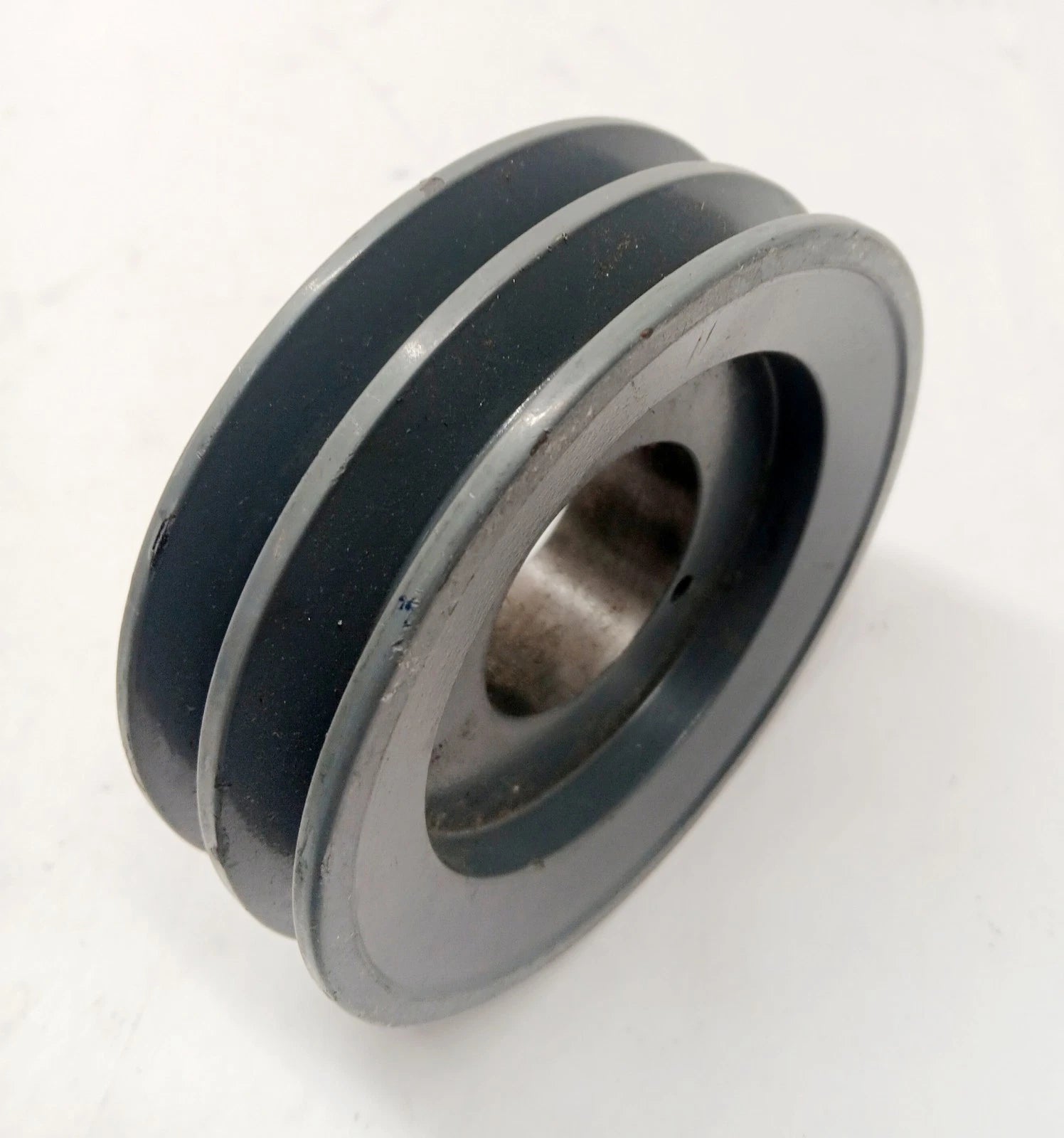

Power Drive 2AK46H Fixed Pitch Sheave

Product Description

The Power Drive 2AK46H is a fixed pitch sheave built for power transmission tasks. This sheave is made from cast iron to ensure durability and reliability in various applications.

• Constructed from cast iron
• Two grooves for A (4L) and B (5L) V-belts
• Requires an H style bushing, which is sold separately

Product Highlights

This sheave features double grooves to effectively work with A and B V-belts, making it suitable for a range of power transmission setups.

Product Information

Standard Information

• MPN: 2AK46H
• Sheave Type: Fixed Pitch

Technical Specifications

• Material: Cast Iron
• Number of Grooves: 2
• Compatible Belt Type: A (4L) & B (5L) V-Belts
• Bushing Type: QTL Quick Detachable Taper Bushings
• Bushing Size: H
• Mounting Method: Bushed
• Outside Diameter: 4.45 inches | 113.03 millimeters
• Pitch Diameter Minimum: 3.86 inches | 98.044 millimeters
• Pitch Diameter Maximum: 4.2 inches | 106.68 millimeters
• Bushing Bore Range: 3/8 to 1-1/2 inches | 9.525 to 38.1 millimeters
• Bore: 0 inches | 0 millimeters
• Keyway: Yes
