POWER DRIVE 2AK25-7/8 Sheave

Product Description

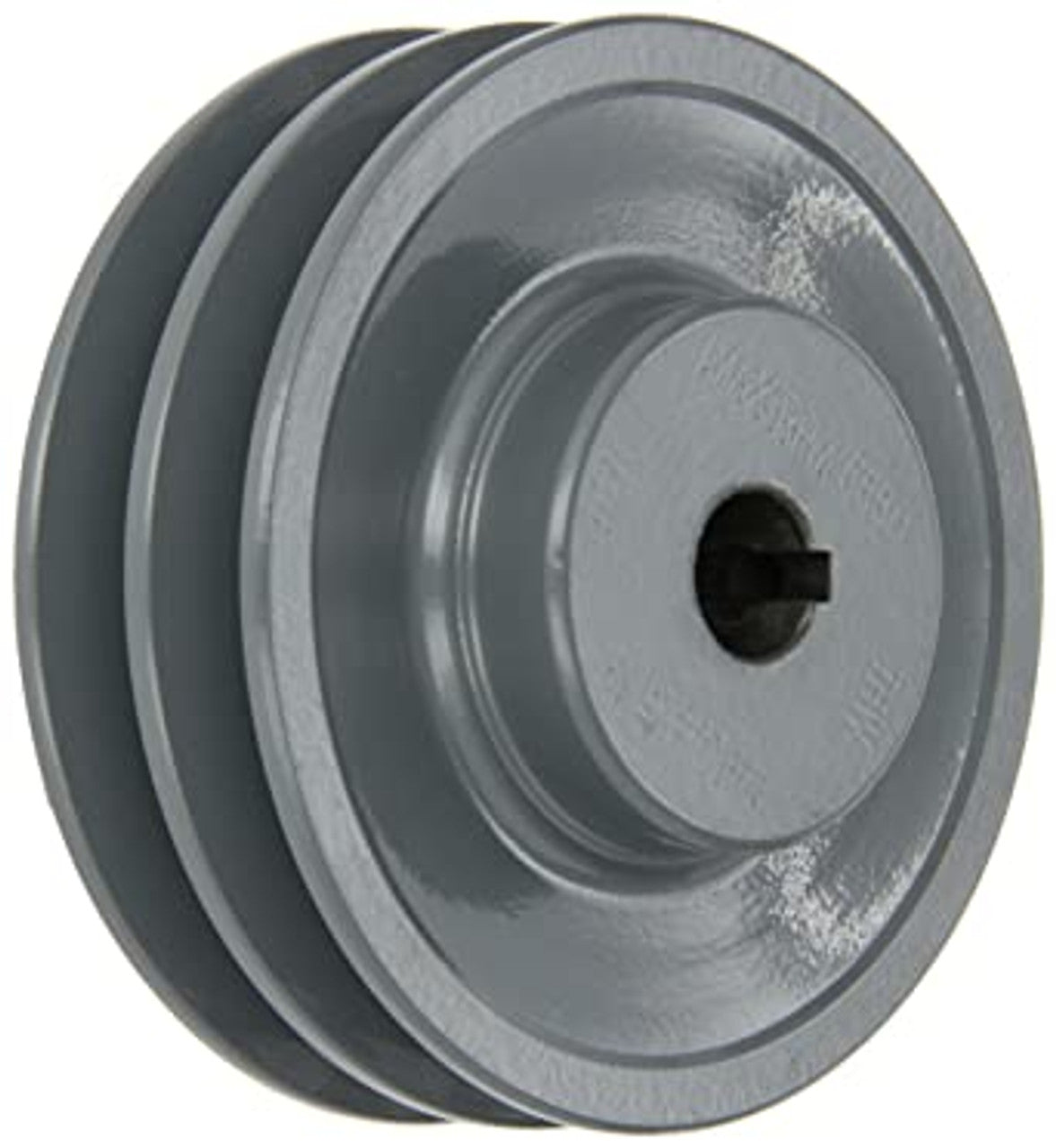

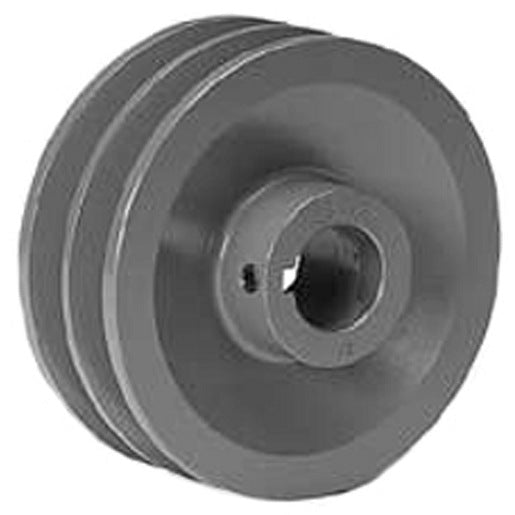

The POWER DRIVE 2AK25-7/8 is a fixed bore sheave designed for use in power transmission applications. This cast iron sheave includes two grooves that support 3L, 4L, and A series belts. It has a bore size of seven-eighths inch and an outer diameter measuring two point fifty-five inches. The sheave is equipped with a keyway, ensuring secure installation.

• Outer diameter: 2.55 inches
• Bore size: 7/8 inch
• Compatible with 3L, 4L, and A series belts

Product Highlights

Durable cast iron construction for long-lasting performance across various applications.

Product Information

Standard Information

• Brand: POWER DRIVE
• MPN: 2AK25-7/8

Technical Specifications

• Manufacturer Item Number: 2AK25-7/8
• Outer Diameter: 2.55 inches
• Shaft Size: 7/8 inch
• Bore: 0.875 inches
• Compatible Belt Series: 3L, 4L, A
• Belt Grooves in Sheave: 2
• Material: Cast iron
• Mounting Method: Finished Bore
• Keyway: Yes
• Belt Width Minimum: 0.375 inches
• Belt Width Maximum: 0.5 inches
• Pitch Diameter Maximum: 2.3 inches
• Pitch Diameter Minimum: 1.96 inches
