Potter Roemer 1144408 Water Flow Switch VSR-8

Product Description

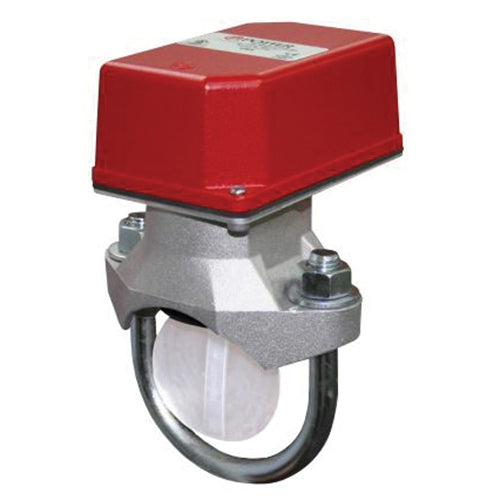

The Potter Roemer 1144408 is a vane-type water flow switch designed for wet sprinkler systems. This model is UL listed and FM approved, ensuring compliance with safety and performance standards. The switch is suitable for use on steel pipe and is available for sizes ranging from two to eight inches.

• Vane-type design for accurate flow detection.
• Contains two SPDT switches for reliable operation.
• Compatible with multiple pipe sizes and configurations.

Product Highlights

This water flow switch is essential for fire safety systems, notifying when water is flowing through the pipes.

Product Information

Standard Information

• Brand: Potter Roemer
• Manufacturer: Potter Roemer

Technical Specifications

• Contact Configuration: (2) SPDT
• Contact Rating: 10 A at 125/250 VAC, 2 A at 30 VDC Resistive, 10 mA minimum at 24 VDC
• Diameter: 8-5/8 inches
• Flow Rate: 4 - 10 gpm
• Item Name: Waterflow Alarm Switch with Retard
• Model: VSR-8
• Mounting: Horizontal/Vertical
• Pressure Rating: 450 psi Service
• Series: VSR
• Size: 8 inches
• Temperature Rating: 40 - 120 degrees F
• Type: Vane-Type
• Applications: For use with wet sprinkler systems
• Standards/Certifications: UL, cUL, CSFM, CE listed, FM and LPCB approved
