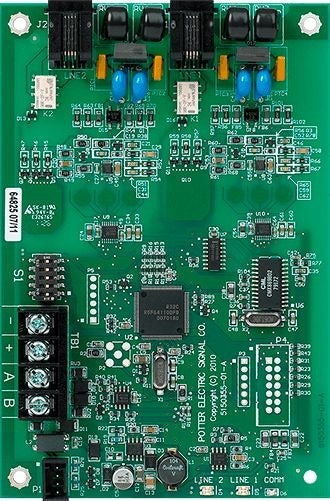

Potter Electric Signal ud-2000 Dual Line Dact

Product Description

The POTTER ELECTRIC SIGNAL ud-2000 is a Digital Alarm Communicator Transmitter (DACT) designed for fire alarm and security systems that require monitored communication to a central monitoring station. The ud-2000 supports up to two phone lines and communicates using SIA-DCS or Ademco Contact ID protocols. It automatically monitors each connected phone line for voltage, seizes the line when an alarm event occurs, connects to a remote receiver to transmit the alarm signal, and releases the line once communication is complete. An RJ-11 jack is provided for each phone line, and an RJ-11 to RJ-33 cord is included. Licensed fire alarm technicians and low-voltage contractors install this device as part of a code-compliant monitoring solution.

The ud-2000 is suited for residential and light commercial fire alarm panel installations where dual-line POTS-based monitoring is required. It connects directly to plain old telephone service (POTS) lines or an equivalent service as approved by the authority having jurisdiction (AHJ). The DACT must be positioned before any other equipment on the phone circuit to guarantee line-seizure priority. This ensures the unit can interrupt other devices and complete alarm transmission without interference. It is commonly installed alongside addressable or conventional fire alarm control panels that require off-site reporting to a UL-listed central station.

Key Features

• Supports up to two phone lines for redundant communication to a monitoring station
• Compatible with SIA-DCS and Ademco Contact ID communication protocols
• Automatic phone line voltage monitoring with line-seizure capability
• Includes RJ-11 jack for each line plus RJ-11 to RJ-33 cord
• Releases phone line automatically after alarm transmission is complete
• Designed for POTS or AHJ-approved equivalent telephone service

Compatibility

Designed for use with fire alarm control panels requiring a DACT for POTS-based dual-line reporting to a central monitoring station, where SIA-DCS or Ademco Contact ID protocol support is required.

Installation Notes

Installation must be performed by a licensed fire alarm technician or low-voltage contractor in accordance with NFPA 72 and local AHJ requirements. The ud-2000 must be installed ahead of all other equipment on the phone circuit to preserve line-seizure priority. Phone lines carry high voltage and must be run in a dedicated conduit, separate from other circuit wiring. Wire conductors connecting the DACT to the phone system must be 26 AWG or larger.

Technical Specifications

• Communication Protocols: SIA-DCS, Ademco Contact ID
• Phone Lines Supported: 2
• Phone Line Connector: RJ-11 per line
• Included Cord: RJ-11 to RJ-33
• Required Phone Service: POTS or AHJ-approved equivalent
• Minimum Wire Gauge: 26 AWG

Standard Information

• Brand: POTTER ELECTRIC SIGNAL
• Manufacturer Part Number: ud-2000
