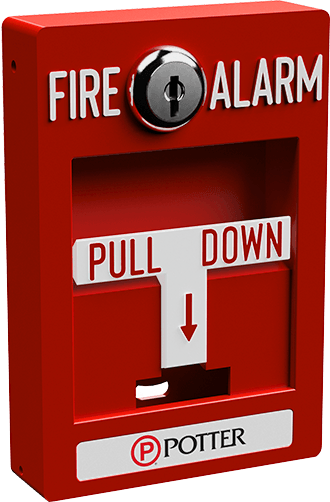

Potter Electric Signal pad100-pssa Pull Station 24VDC

Product Description

The POTTER ELECTRIC SIGNAL pad100-pssa is a single action manual pull station designed for fire alarm system installations in commercial and institutional buildings. This device provides a mechanical interface for initiating fire alarm sequences when pulled by a building occupant or first responder. It operates on 24 volts DC nominal and features a contact rating of 2 amps at 30VDC resistive. The activation force required is less than 5 pounds, meeting accessibility requirements for manual pull stations. Licensed fire alarm technicians and life safety contractors install this device as part of addressable or conventional notification system layouts.

The pad100-pssa is suited for commercial, institutional, and light industrial environments where a reliable manual initiation point is required. It integrates with Potter Electric Signal control panels, fire alarm transponders, and building management systems. Typical installations include office buildings, schools, hospitals, and multi-tenant facilities. The device handles an operating temperature range of 32 degrees F to 120 degrees F, making it appropriate for interior conditioned and unconditioned spaces within that range.

Key Features

• Single action pull mechanism requires less than 5 pounds of activation force
• 24VDC nominal operating voltage compatible with standard fire alarm panel power supplies
• Contact rating of 2A at 30VDC resistive for reliable circuit switching
• Operating temperature range of 32 degrees F to 120 degrees F
• Compatible with addressable and conventional fire alarm notification systems
• Compact form factor at 4.5 inches H x 3 inches W x 1.25 inches D

Compatibility

Designed for integration with Potter Electric Signal control panels, fire alarm transponders, and building management systems. Certified for use in commercial, institutional, and light industrial fire alarm applications.

Installation Notes

Installation must be performed by a licensed fire alarm technician in accordance with NFPA 72 and applicable local codes. Power down the fire alarm control panel circuit before wiring the pull station to avoid inadvertent alarm activation. Mount the device at the code-required height above finished floor per ADA and local authority having jurisdiction requirements. After installation, conduct a full functional test to verify proper circuit continuity and alarm initiation response at the control panel.

Technical Specifications

• Operating Voltage: 24VDC nominal
• Contact Rating: 2A at 30VDC resistive
• Mechanical Activation Force: Less than 5 pounds
• Operating Temperature Range: 32 degrees F to 120 degrees F
• Dimensions: 4.5 inches H x 3 inches W x 1.25 inches D

Standard Information

• Brand: POTTER ELECTRIC SIGNAL
• Manufacturer Part Number: pad100-pssa
