Potter Electric Signal pad100-dim Dual Input Module

Product Description

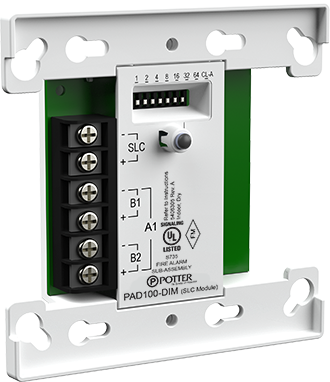

The POTTER ELECTRIC SIGNAL pad100-dim is an addressable dual input module designed for fire alarm system monitoring. It uses a single SLC loop address while monitoring two Class B circuits or one Class A circuit. Licensed fire alarm technicians install this module to supervise initiating device circuits in addressable systems. The module includes a red LED that flashes during normal polling by the control panel and increases to a fast flash rate when an input is activated, providing quick visual status feedback at the device.

The pad100-dim is well suited for residential and commercial fire alarm installations where two monitored circuits originate in the same location. A common application is simultaneous monitoring of a sprinkler waterflow switch and a valve tamper switch located in close proximity. The module mounts on a standard 4-inch square or double-gang electrical box, fitting into typical fire alarm rough-in conditions without special hardware.

Key Features

• Uses one SLC loop address to monitor two Class B circuits or one Class A circuit
• Simultaneous monitoring of sprinkler waterflow and valve tamper switches from a single module
• Mounts on 4-inch square or double-gang electrical box for flexible placement
• Red LED provides visual status: slow flash during normal poll, fast flash on input activation
• Addressable design integrates directly with compatible SLC-based fire alarm control panels

Compatibility

Designed as an OEM-style addressable dual input module for use with SLC-loop-based fire alarm control panels that support this module type.

Installation Notes

Installation must be performed by a licensed fire alarm technician in accordance with NFPA 72 and applicable local codes. De-energize the SLC loop and confirm the system is placed in test mode with the monitoring authority notified before wiring the module. Mount the module on a listed 4-inch square or double-gang electrical box and verify the assigned SLC address matches the control panel programming. Do not restore system power until all wiring connections are confirmed and the module address is validated at the panel.

Technical Specifications

• SLC Addresses Used: 1
• Monitored Circuit Types: Two Class B or one Class A
• Mounting: 4-inch square or double-gang electrical box
• Status Indicator: Red LED

Standard Information

• Brand: POTTER ELECTRIC SIGNAL
• Manufacturer Part Number: pad100-dim
