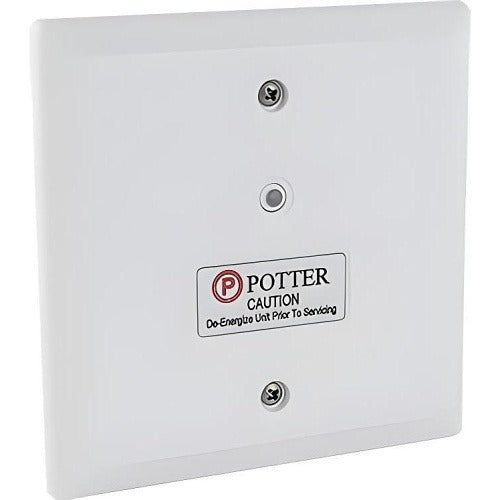

Potter Electric PAD300-IM Isolator Module

Product Description

The Potter Electric PAD300-IM is an isolator module designed for use in fire detection and life safety systems. Isolator modules protect addressable loop circuits by isolating a fault condition, such as a short circuit, so that the remainder of the loop continues to operate normally. This part is installed by licensed fire alarm technicians and system integrators working on addressable fire alarm control panel installations. The PAD300-IM is sold and installed as a single unit and is a key component in maintaining loop integrity when a wiring fault occurs.

The PAD300-IM is intended for use in addressable fire detection systems where loop circuit protection is required. It is typically installed at intervals along a Class A or Class B signaling line circuit to segment the loop and limit the impact of a short-circuit fault. This type of accessory is common in commercial and industrial fire alarm installations where system reliability and fault tolerance are critical requirements.

Key Features

• Isolates short-circuit faults on addressable signaling line circuits to maintain loop operation
• Designed for integration into addressable fire alarm detection systems
• Sold as a single unit for flexible placement along the detection loop
• Part of the Potter Electric fire detection accessory line

Compatibility

Designed as an OEM-style replacement or addition for addressable fire detection loop circuits requiring short-circuit isolation capability.

Installation Notes

Installation should be performed by a licensed fire alarm technician in accordance with NFPA 72 and all applicable local codes. Power down the fire alarm control panel and follow lockout/tagout procedures before servicing or installing any loop devices. Refer to the manufacturer product data sheet for wiring diagrams and loop placement guidelines specific to the PAD300-IM. Do not install in environments outside the conditions specified in the manufacturer documentation.
