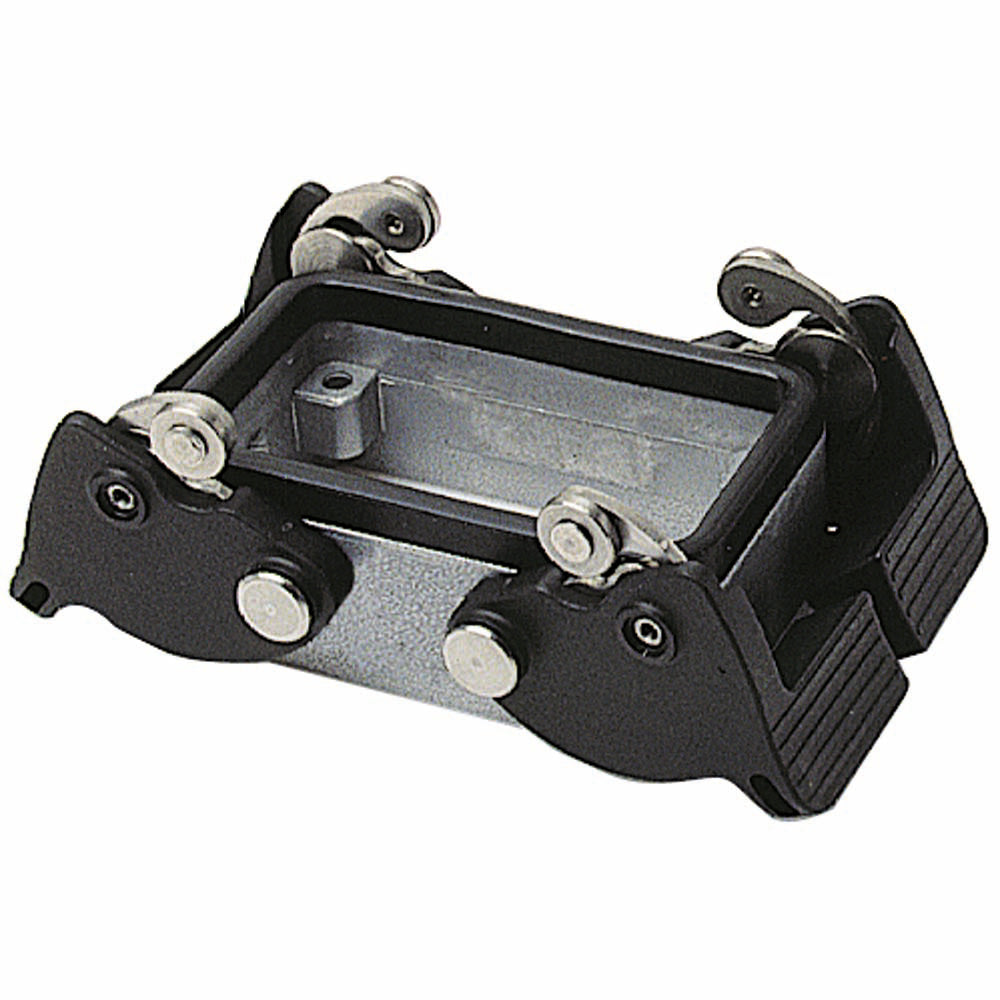

Pos-E-Kon PB116E Double Lever Locking Panel Base Rear Panel Mount

Product Description

The Pos-E-Kon PB116E is a locking panel base designed by ABB. This product features modular design for easy assembly. It is suitable for DIN standard rectangular pin and sleeve connectors. It is compatible with B16, C6, V6, D40, and DD72 series housing.

This panel base operates efficiently in a wide temperature range from -40 to 257 degrees Fahrenheit and comes with an IP65 rating for water and dust resistance.

• Double lever lock design
• Rear entry position for panel mounting
• Die cast aluminum construction

Product Highlights

Constructed with die cast aluminum and epoxy powder coating, this panel base provides durability and resistance against environmental factors.

Product Information

Standard Information

• Manufacturer: ABB
• Brand: Pos-E-Kon

Technical Specifications

• Dimensions: 5.16 in L x 2.28 in W x 1.06 in H
• Finish: Epoxy Powder Coated
• Series: B Series
• Specifications: 10/16/35 A, 600 VAC, IP65
• Suitable For Use With: B16, C6, V6, D40 and DD72 Series Housing
• Temperature Rating: -40 to 257 degrees Fahrenheit
• Type: Double Lever
• Entry Position: Rear
• Mounting Type: Panel
• Material: Die Cast Aluminum
