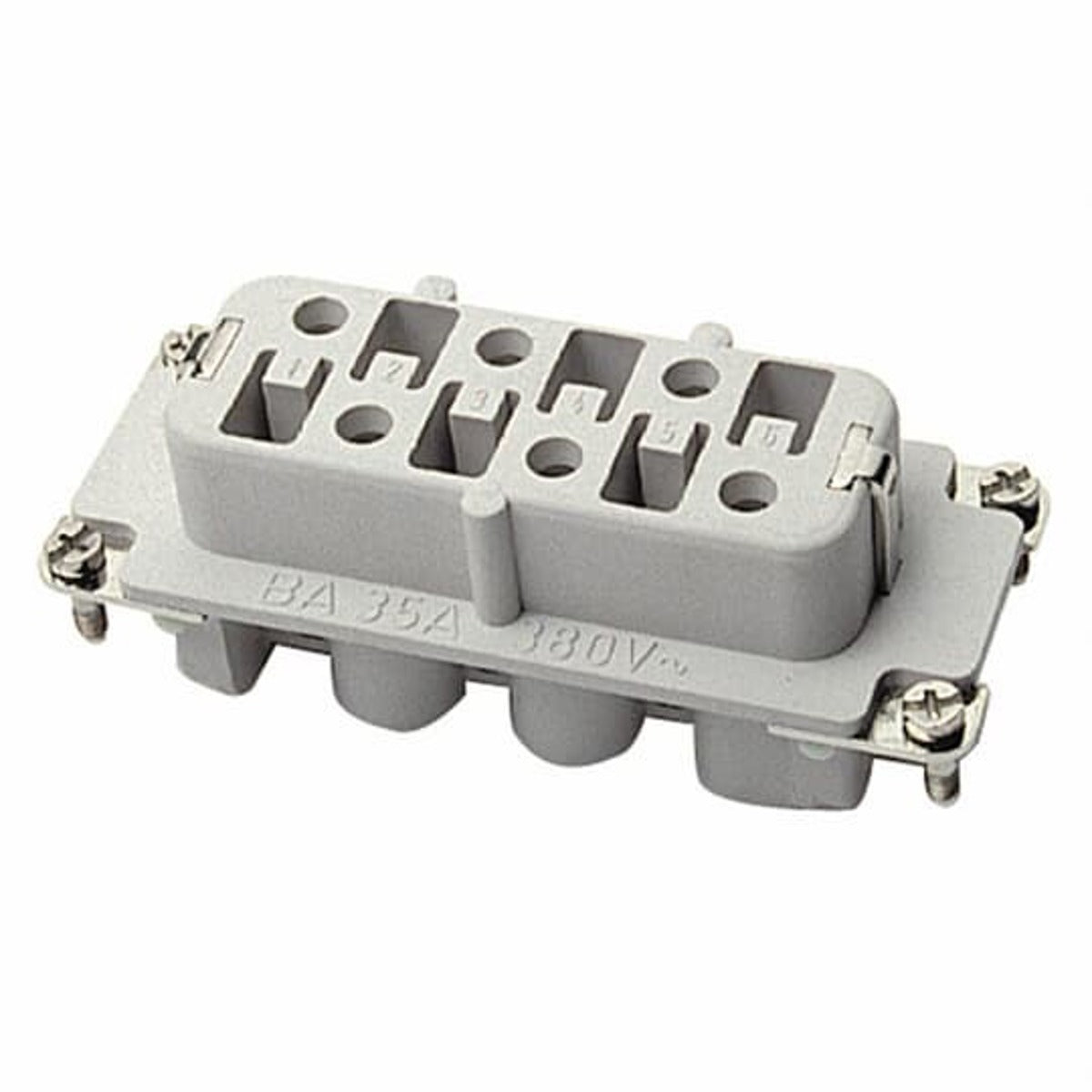

Pos-E-Kon FS106C female screw terminal insert 6 positions

Product Description

The POS-E-KON FS106C is a female screw terminal insert designed for use with C series connectors, featuring 6 contacts with ground. It is made of glass-filled thermoplastic and provides easy assembly at the customer site. This insert offers IP65 locked positions per DIN VDE 0470, IEC 529.

• For use with C series
• IP65 locked positions per DIN VDE 0470, IEC 529
• 20-10 AWG Wire Size

Product Highlights

This female screw terminal insert is designed for C series connectors and features 6 contacts with ground.

Product Information

Standard Information

• Brand: POS-E-KON
• Manufacturer Part Number: FS106C
• Country of Origin: DE

Technical Specifications

• Catalog Number: FS106C
• Manufacturer: ABB - Installation Products
• Brand: Pos-E-Kon
• Country of Origin: Germany
• Made in USA: No
• Application: For use with C series
• Material: Glass-filled Thermoplastic
• Special Features: IP65 locked positions per DIN VDE 0470, IEC 529
• UPC: 786210791098
• GTIN: 00786210791098
• Item Type: Terminal Inserts-Female
• Voltage Rating: 600 VAC
• Wire Size: 20-10 AWG
• Current Rating: 35 Ampere
• Number of Contacts: 6
• RoHS: RoHS3 Compliant
• Number of Positions: 6
• Connection Type: Female Screw
• Series: C
• Specifications: 3 Pollution Degree, 3kV Test Voltage
• Temperature Rating: -40 to 257 deg F
• Type: High-Current
• Standard & Approvals: CSA Certified, UL94 V-0 Flammability Rating
• Suitable For Use With: C Series Connector
