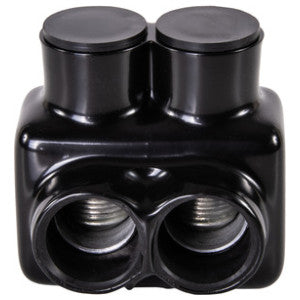

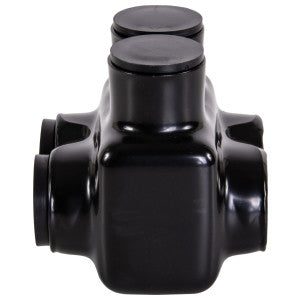

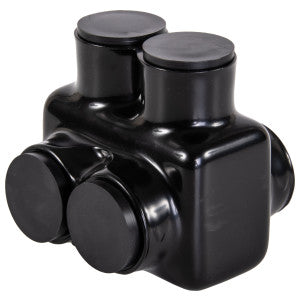

Polaris IT-250 Insulated Cable Connector 600 V (250 MCM - 6 AWG)

Product Description

Polaris IT-250 is an insulated multi-tap cable connector for 250 MCM to 6 AWG conductors. The IT-250 uses an aluminum alloy core wrapped in UV-resistant plastisol insulation, provides two side-entry ports with preloaded oxide inhibitor and removable access plugs, and installs with a hex key and torque wrench. It is dual rated for copper and aluminum conductors, rated 600 V, and temperature rated from -45 C to 90 C for splicing and wire termination in trays, panels, ducts, raceways, or troughs.

• Two side-entry ports sized for 250 MCM to 6 AWG; dual rated for copper and aluminum conductors
• Aluminum alloy body with UV-, abrasion- and chemical-resistant plastisol insulation and preloaded oxide inhibitor
• Rated 600 V; operating temperature range -45 C to 90 C; installs with hex key and torque wrench (360 in-lb torque)

Product Highlights

Dual-side insulated tap connector for 250 MCM–6 AWG, 600 V rating, aluminum alloy core with plastisol insulation and preloaded oxide inhibitor

Product Information

Standard Information

• Brand: POLARIS
• Manufacturer Part Number: IT-250
• Country of Origin: United States
