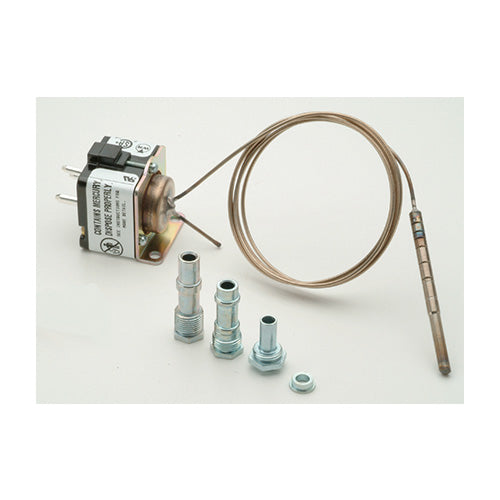

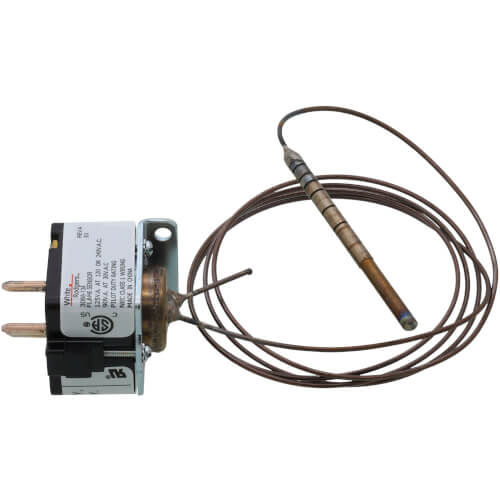

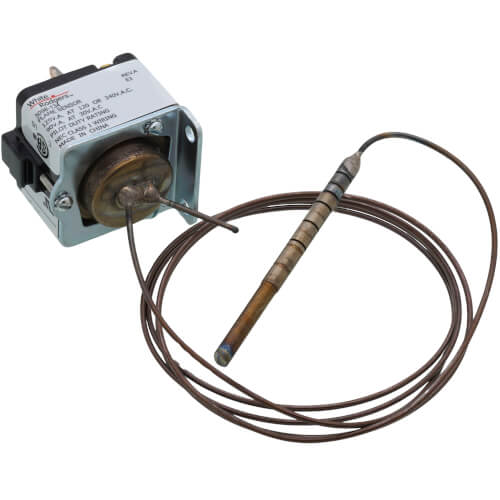

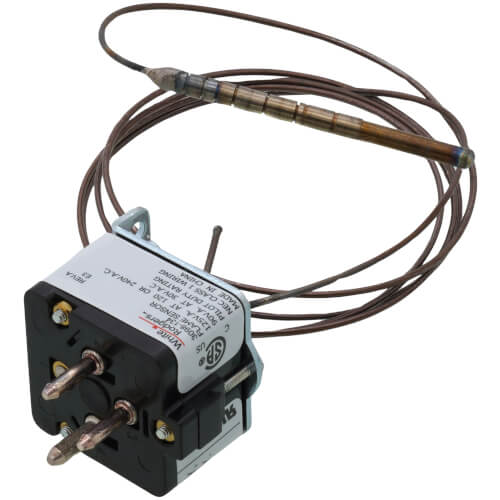

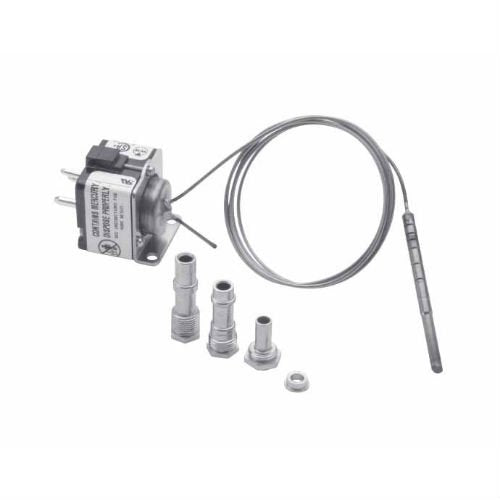

White-Rodgers 3098-134 Cycle Pilot Sensor 48 inches

Product Description

The WHITE-RODGERS 3098-134 cycle pilot sensor is a plug-in flame sensor designed for proving pilot flame and controlling main valve in cycle pilot applications. It features a 48" element and a #19 bulb style. The sensor is designed to fit with various OEM applications. It is suitable for use on proving pilot flame/cycle pilot/gas burner control.

• Plug-in flame sensor
• 48" element length
• Maximum temperature of 1450 Deg F at bulb tip

Product Highlights

This mercury flame sensor ensures reliable flame detection in combustion equipment and enhances the safety and efficiency of your combustion systems.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 3098-134
• Country of Origin: China

Technical Specifications

• CATALOG NUMBER: 3098-134
• Category: HVAC/R & Fans
• Type: Flame Sensor, Plug-In
• Used On: Proving Pilot Flame/Cycle Pilot/Gas Burner Control
• Element Length: 48 Inch
• Bulb Style: #19
• Material: Mercury
• Maximum Temperature: 1450 Deg F
• Includes: (3) Pin Plug
• Approval: CSA
• Manufacturer: WHITE-RODGERS
• Brand: White-Rodgers
• Item Number: 3098-134
• Plug Type: Three Pin
• Plug-In Bulb Style: No. 19
• Sensor Length: 48 in
• Model / MPN: 3098-134
• MPN: 3098-134, 3098134
• Product Group: HVAC Sensors
• Custom Bundle: No
