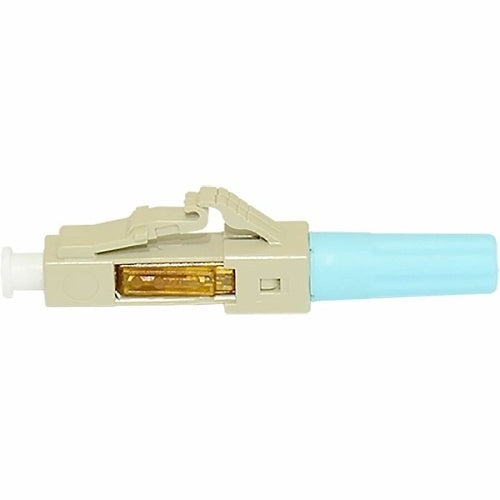

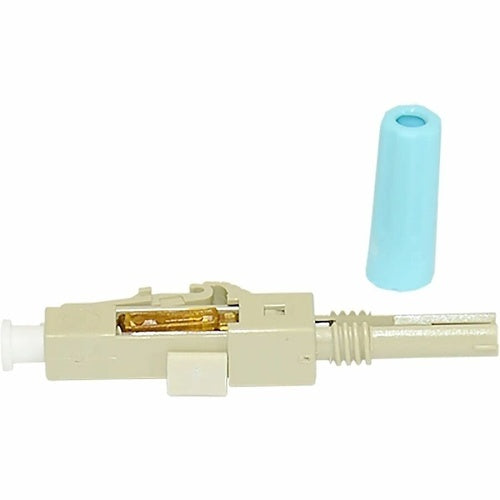

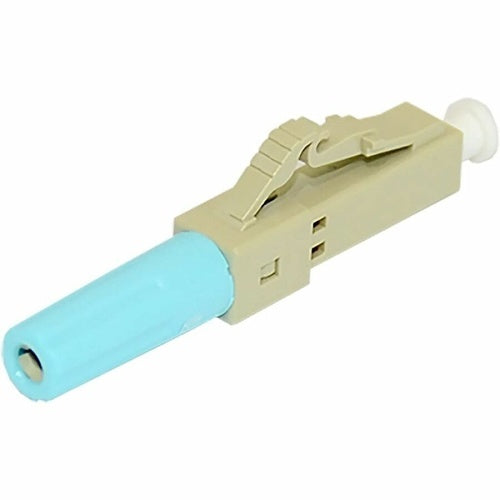

Platinum Tools MM9-LC ECO Series Multimode LC Type Fiber Optic Connector, Blue

Product Description

Platinum Tools MM9-LC is a fiber optic connector designed for reliable and quick termination of fiber cables. This connector supports 250μm, 900μm, and 2.0mm cables, accommodating both distribution and zip-cord types. It is compatible with single mode (OS1, OS2) and multimode (OM1, OM2, OM3, OM4) fibers in both standard (UPC) and angled (APC) formats. Installation does not require special tools or any adhesive, making it user-friendly. The design assures precise alignment for minimum signal loss, which is crucial in data communication.

• Field-installable and quick to terminate
• No epoxy, crimping, or polishing needed
• Built-in verification window for installation accuracy

Product Highlights

This connector allows for fast one-click installation and a termination time of around two minutes. The self-centering alignment groove aids in reliable fiber strand insertion.

Product Information

Standard Information

• Brand: Platinum Tools
• Manufacturer: Platinum Tools, Inc

Technical Specifications

• MPN: MM9-LC
• UPC: 816927020423
• Color: Blue
• Product Type: Network Connector
• Connector Type: LC Network Male
• Product Series: ECO Series
• Environmental Certification: RoHS 3
• Environmentally Friendly: Yes
