Product Description

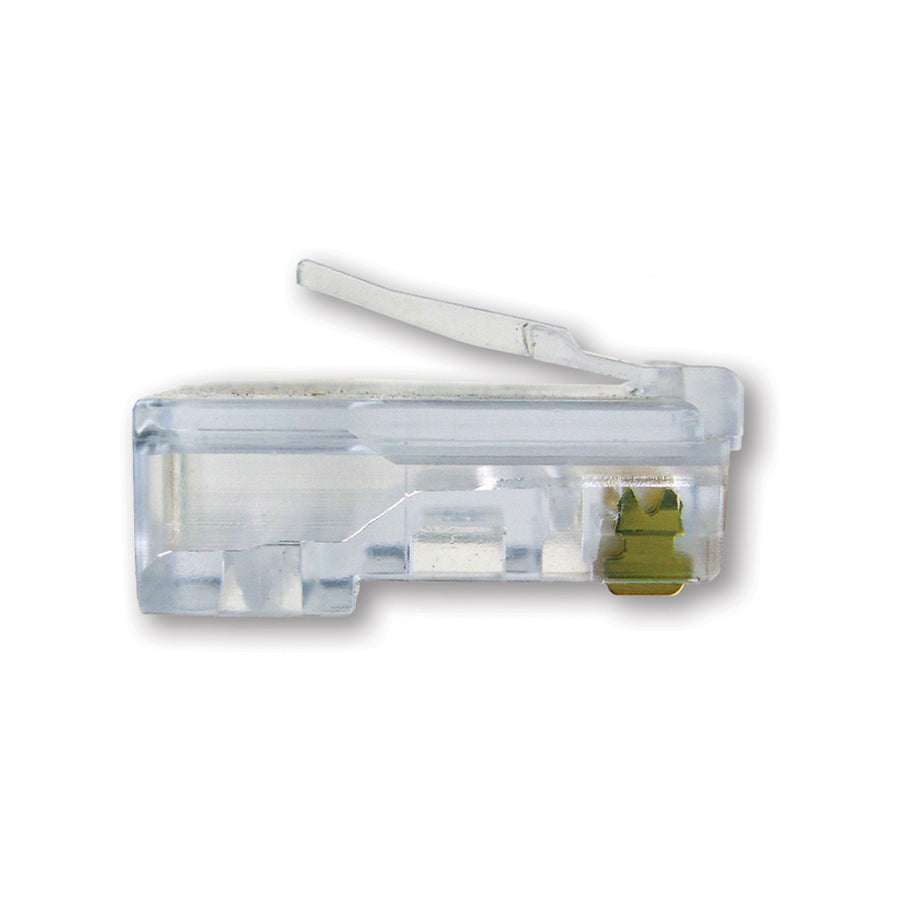

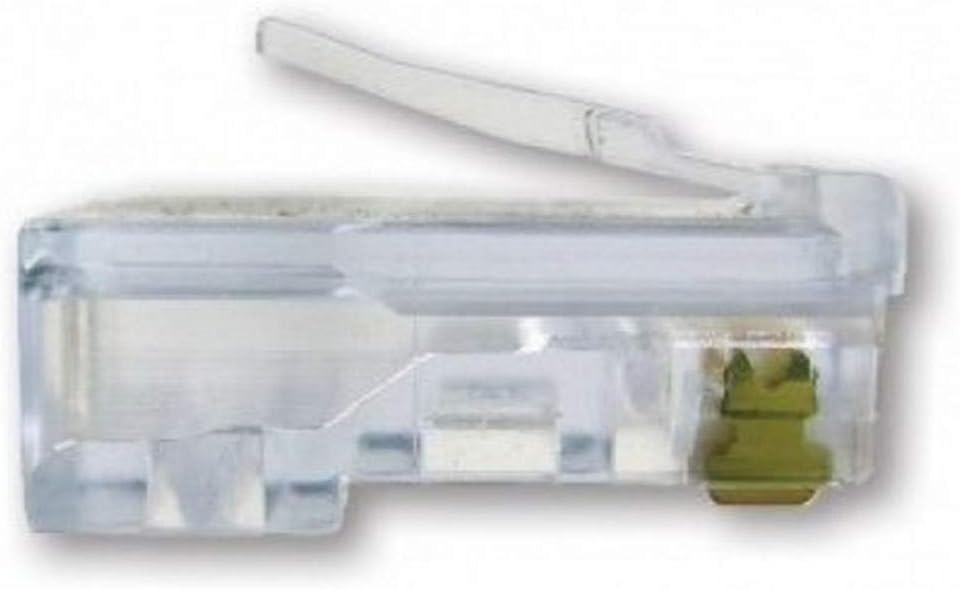

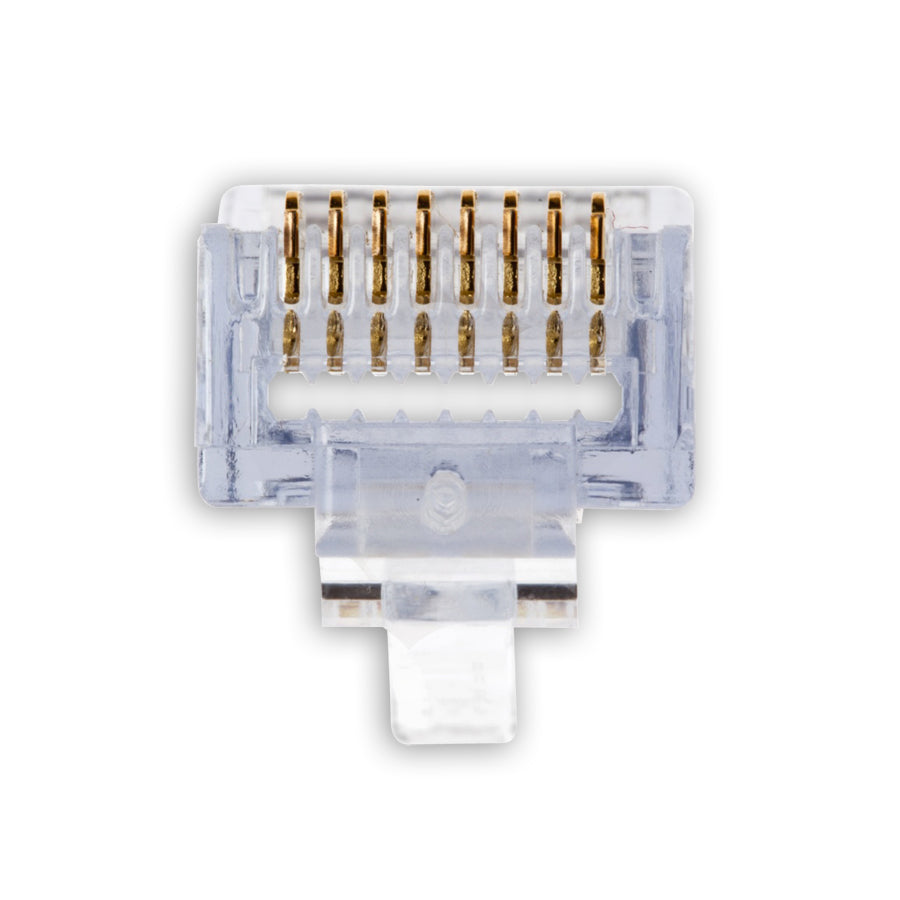

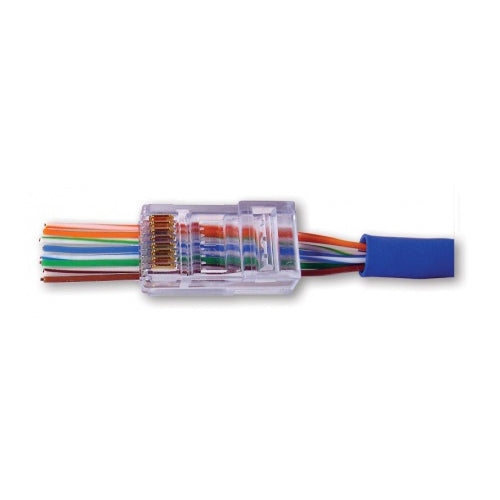

The Platinum Tools 202003J EZ-RJ45 CAT5e Connector simplifies twisted pair terminations by allowing wires to be inserted through the connector and out the front, making it easy to verify the proper wiring order. Electrical performance is optimized by seating the connector tightly. Designed for fast and easy terminations of twisted pairs.
- Allows verification of wiring order before crimping
- Optimizes electrical performance by reducing the distance between the wire twists and contacts
- Works on both solid and stranded wire
Product Highlights
Simplifies twisted pair terminations with easy wire sequence verification. Optimizes electrical performance and works with solid or stranded wire.
Product Information
Standard Information
-
Brand: Platinum Tools
-
Manufacturer Part Number: 202003J
-
Country of Origin: USA
Technical Specifications
-
Manufacturer: Platinum Tools, Inc
-
Product Line: EZ-RJ45
-
Product Name: EZ-RJ45 CAT5/5e Connectors, Jar of 100.
-
Product Type: Network Connector
-
Product Model: 202003J
-
TAA Compliant: yes
-
Connector Type: RJ-45 Network Male
-
ADI Part Number: TS-202003J
-
Contact Plating: Gold
-
Connector Details: 1 x RJ-45 Network Male
-
Packaged Quantity: 100
-
Number of Contacts: 8
-
Network Category Type: CAT5,CAT5e
-
Total Number of Ports: 1
-
Environmentally Friendly: Yes
-
Manufacturer Part Number: 202003J
-
Environmental Certification: ROHS,RoHS 3
-
Packing: Jar
-
Shielding: No
-
Wire Type: CAT5|CAT5e
-
Max Insulation Diameter (Conductors): 0.040" (1.016mm)
-
Max Cable Outer Diameter: 0.275" (6.98mm)
-
Specification Met: UL, RoHS
-
Batteries Included?: No
-
Batteries Required?: No
-
Included Components: Part
-
Type: Connectors
-
Brand: Platinum Tools
-
Sub Brand: Platinum Tools
-
Applications: Cable Installation
-
Country of Origin (subject to change): Unknown
-
Meets ANSI/EIA/TIA/TAA specifications: Yes
-
Solid or Stranded: 24 – 23 AWG
-
Contacts: 50 micron gold plated
-
Mating Cycles: 1,000
-
Operating Temperature: -40C to 85C
-
Connection: Cat5e Male Plug
-
Wire Gauge: 23 - 24 AWG
-
Cable Type: Category 5, Category 5e
-
Number of Ports: 1
-
Package Type: Jar
-
Use in category: 3, 5, 5E compliant data networks
-
Material: Polycarbonate
