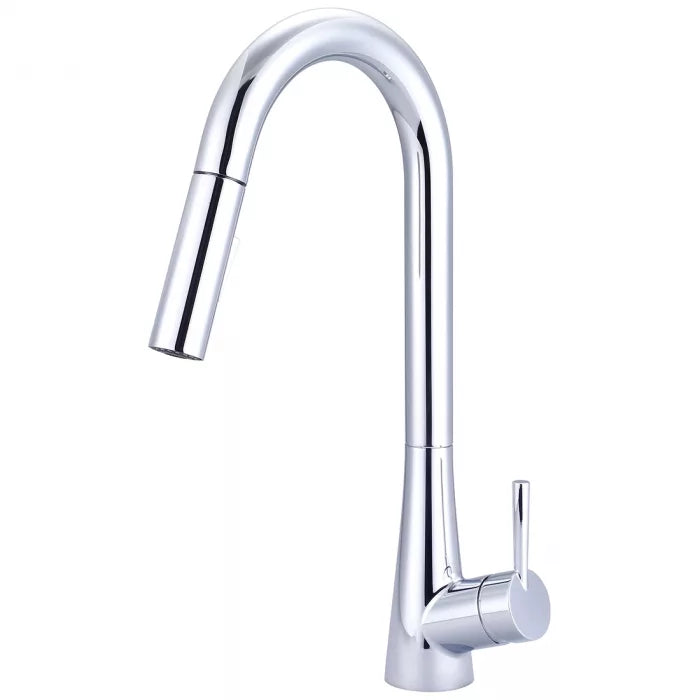

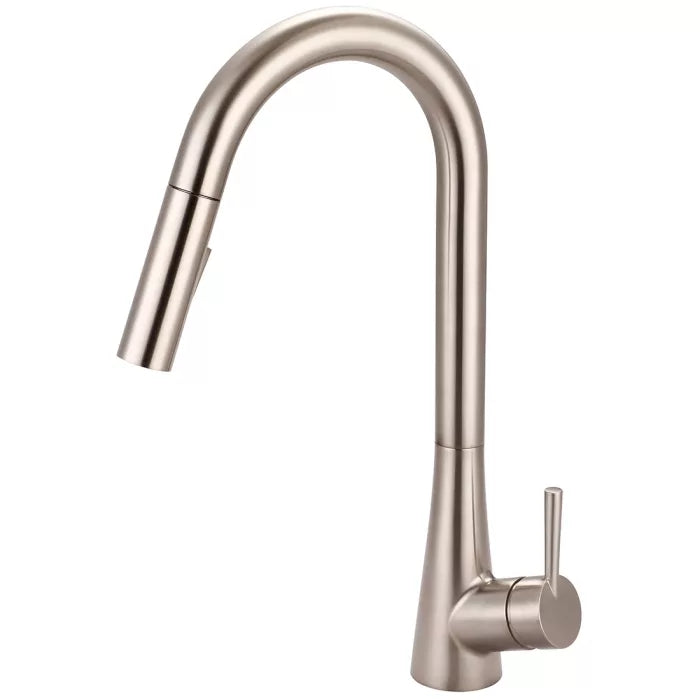

Pioneer Industries k-5025 Pull-down Kitchen Faucet 1.8 Gpm

Product Description

The PIONEER INDUSTRIES k-5025 is a single-handle pull-down kitchen faucet designed for residential kitchen sink installations. The faucet features a ceramic disc cartridge for long-term drip resistance and a pull-down spray head with two spray patterns connected via a quick-connect hose. The spout delivers a 7-5/8-inch reach and stands 8-5/8 inches above the deck to the aerator, providing clearance for standard sink bowls. Flow rate is rated at 1.8 GPM. The finish is PVD brushed nickel, which resists tarnishing and corrosion under typical use conditions. A licensed plumber or experienced installer handles this type of fixture replacement or new construction rough-in.

The k-5025 is suited for residential kitchen countertops and sink decks up to 2 inches thick. It supports both 1-hole and 3-hole 8-inch center installations, and a deck cover plate is included to cover unused holes in a 3-hole configuration. The 360-degree swivel spout accommodates double-basin sinks and wide sink configurations. Easy-install 30-inch flexible supply lines with 3/8-inch compression connections are included, making connection to standard angle stop valves straightforward. This faucet is intended for standard residential cold and hot supply lines.

Key Features

• Pull-down spray head with 2 spray patterns and quick-connect hose attachment
• Ceramic disc cartridge for reliable, long-term valve performance
• 360-degree swivel spout with 7-5/8-inch reach and 8-5/8-inch deck-to-aerator height
• Compatible with 1-hole or 3-hole 8-inch center installations; deck cover plate included
• 30-inch flexible supply lines with 3/8-inch connections included
• PVD brushed nickel finish for corrosion and tarnish resistance

Compatibility

Designed as an OEM-style replacement or new-installation faucet for residential kitchen sinks with 1-hole or 3-hole 8-inch center configurations and deck thickness up to 2 inches.

Installation Notes

Installation is performed by a licensed plumber or qualified installer following local plumbing code requirements. Shut off the hot and cold supply valves at the angle stops and relieve line pressure before removing the existing faucet or making new connections. Use the included deck cover plate when installing in a 3-hole sink to seal unused openings. Do not overtighten the mounting hardware against the underside of the sink deck, as this can crack composite or thin-gauge stainless sink materials.

Technical Specifications

• Flow Rate: 1.8 GPM
• Spout Reach: 7-5/8 inches
• Spout Height (Deck to Aerator): 8-5/8 inches
• Overall Height: 15-3/8 inches
• Swivel: 360 degrees
• Spray Functions: 2
• Handle Style: Single lever
• Faucet Hole Size: 1-1/2 inches
• Hole Configuration: 1-hole or 3-hole 8-inch center
• Maximum Deck Thickness: 2 inches
• Supply Connection: 3/8 inches compression
• Supply Line Length: 30 inches (flex, included)
• Cartridge: Ceramic disc
• Finish: PVD Brushed Nickel

Standard Information

• Brand: PIONEER INDUSTRIES
• Manufacturer Part Number: k-5025
