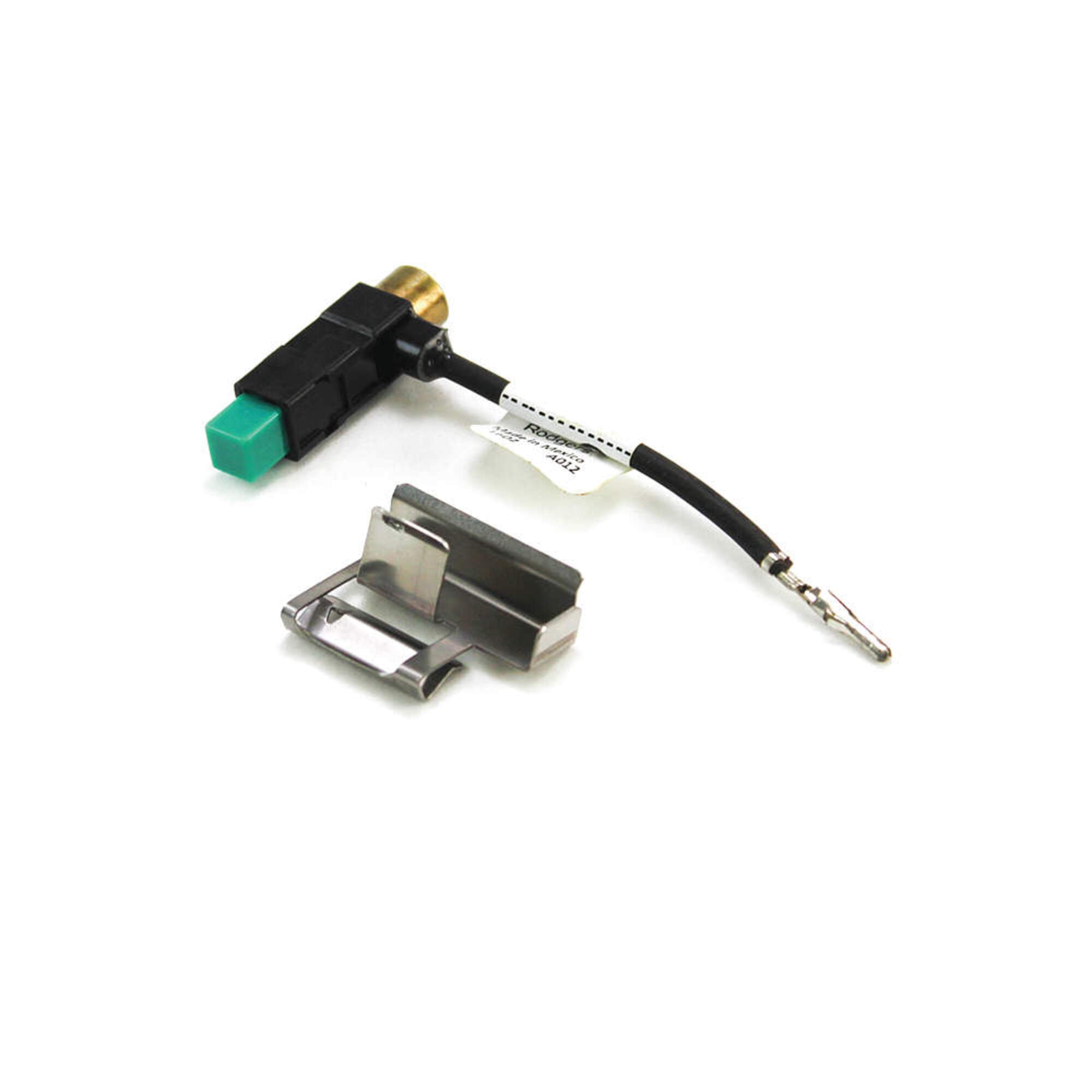

Pinnacle Sales 100109221 Igniter Bracket Assembly

Product Description

The PINNACLE SALES 100109221 is an igniter and bracket assembly designed for use in HVAC room air systems. This kit combines the igniter element with its mounting bracket as a single serviceable unit, simplifying replacement and reducing the risk of misalignment during installation. The assembly provides the structural support and electrical contact interface required for reliable ignition operation. Licensed HVAC technicians typically handle this repair as part of a no-heat or ignition failure service call.

This assembly is suited for room air HVAC applications where the igniter and bracket are replaced together as a matched kit. It is intended for use in systems where the original igniter bracket has degraded, fractured, or failed to hold the igniter in proper firing position. The kit format ensures the replacement component matches the original mounting configuration.

Key Features

• Combined igniter and bracket supplied as a single assembly for straightforward swap-out
• Maintains proper igniter positioning relative to the burner for consistent ignition
• Designed as an OEM-style replacement to restore original system function
• Reduces parts sourcing complexity by packaging bracket and igniter together

Compatibility

Designed as an OEM-style replacement igniter and bracket assembly for PINNACLE SALES HVAC room air systems.

Installation Notes

Installation of this assembly should be performed by a licensed HVAC technician. Disconnect all power to the unit before removing the original igniter or bracket. Handle the igniter element with care and avoid contact with bare skin, as oils can create hot spots that shorten igniter life. Verify the bracket is fully seated and secured before restoring power and testing ignition.

Technical Specifications

• Assembly Type: Igniter and Bracket Kit

Standard Information

• Brand: PINNACLE SALES
• Manufacturer Part Number: 100109221
