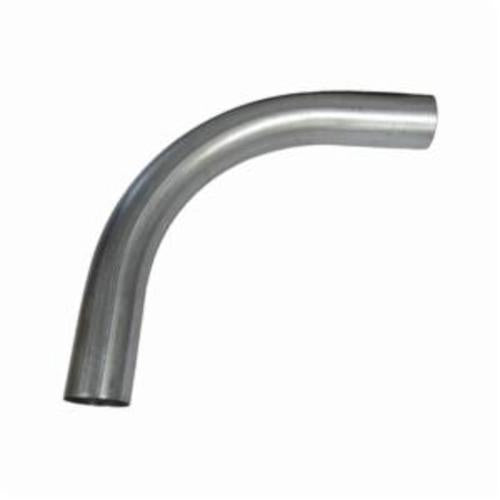

Picoma 8347 2-1/2 EMT ELBOW 90DEG Standard Radius Threaded

Product Description

The Picoma 8347 is a two-and-a-half-inch EMT elbow designed to change the direction of a raceway at a ninety-degree angle. Made from steel, this elbow comes with an inline galvanized outside diameter and an epoxy modified acrylic inside diameter, complying with NEC equipment grounding conductor standards.

• Standard radius for efficient transitions.
• Manufactured in the United States.
• Meets UL 797 and CSA C22.2 83.1 standards.

Product Highlights

The elbow is crafted to provide reliable and secure connections in electrical conduit systems, ensuring durability and efficiency in installations.

Product Information

Standard Information

• Catalog Number: 8347
• Manufacturer: Picoma Industries

Technical Specifications

• Material: Steel
• Country of Origin: United States
• Application: Used to change the direction of a raceway
• Inside Diameter: 2.371 inches
• Outside Diameter: 2.875 inches
• Trade Size: 2-1/2 inches
• Angle: 90 degrees
• Special Features: Inline galvanized OD and epoxy modified acrylic ID, EMT recognized as equipment grounding conductor by the NEC
• Standard: UL 797, CSA C22.2 83.1, ANSI C 80.3
