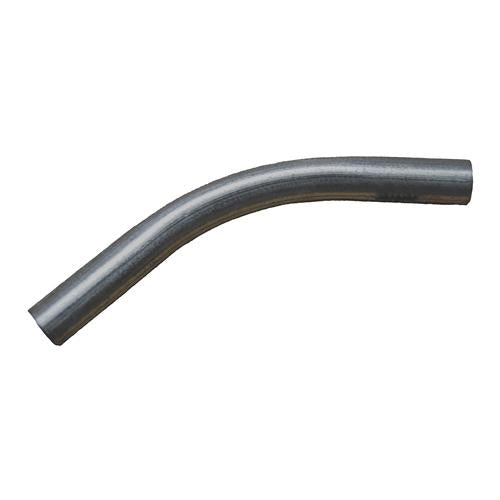

PICOMA 8288 Standard Radius Threaded Conduit Elbow 2 in 45 Degree

Product Description

The PICOMA 8288 is a standard radius threaded conduit elbow designed for changing the direction of a raceway. This elbow is made from steel and features an epoxy modified acrylic inner diameter with a galvanized outer diameter. It is compatible with EMT conduit and has a bend angle of 45 degrees with a radius of nine and one-quarter inches.

• Constructed from steel with high durability.
• Designed for use with EMT conduit.
• Features a thickness of zero point zero six five inches.

Product Highlights

Ideal for directing EMT conduit runs in residential or commercial electrical installations.

Product Information

Standard Information

• Type: Standard Radius Threaded
• Trade Size: 2 in

Technical Specifications

• Angle: 45 degrees
• Radius: nine and one-quarter in
• Material: Steel
• Inner Diameter: 2.067 in
• Outer Diameter: 2.197 in
• Wall Thickness: 0.065 in
• Applicable Standards: UL 797, CSA C22.2 83.1, ANSI C 80.3
• Country of Origin: USA
