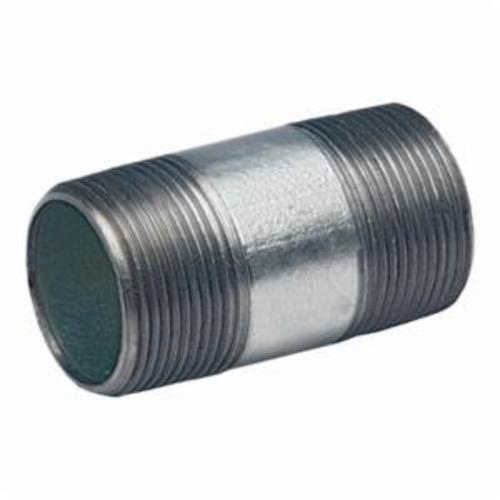

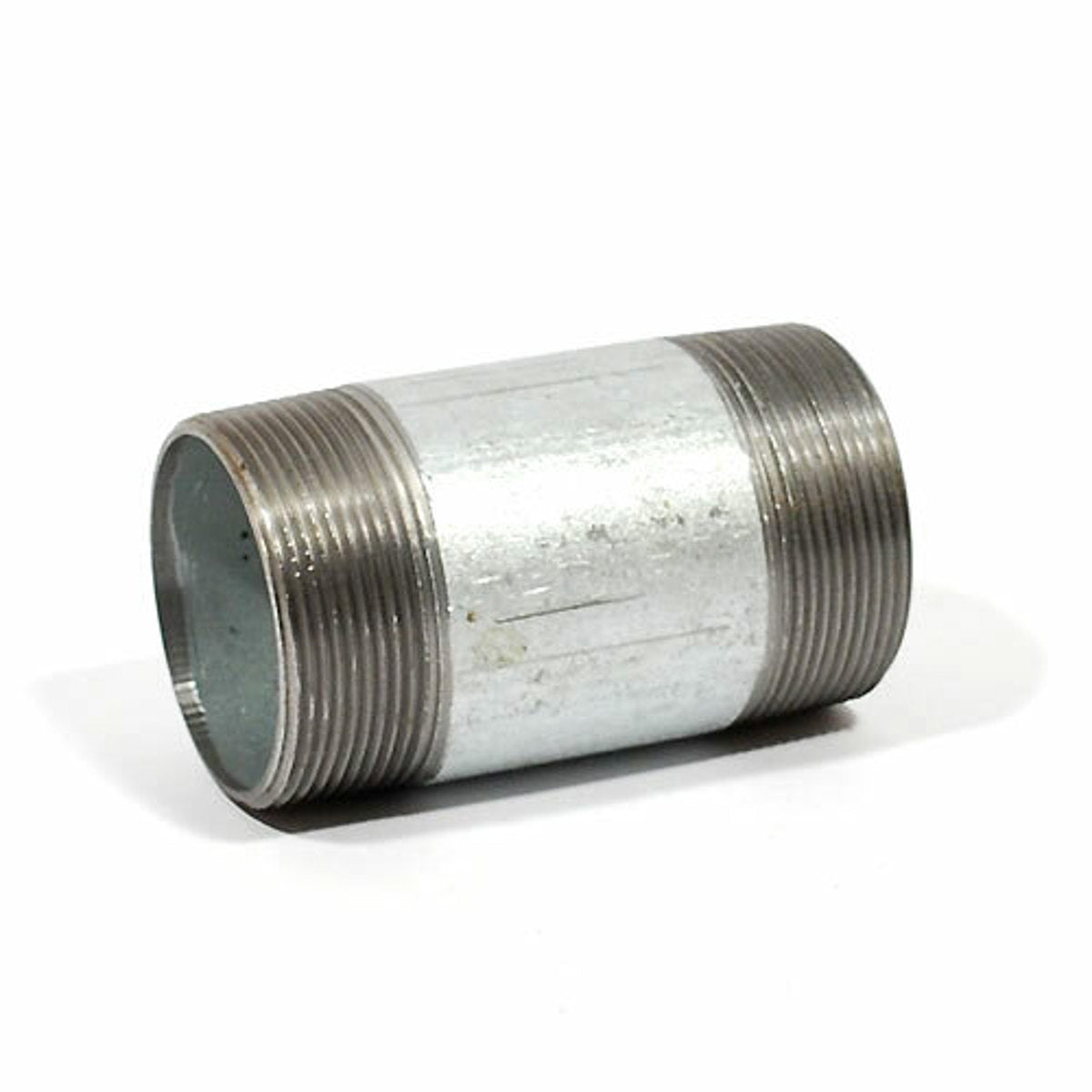

The PICOMA 5641 galvanized conduit nipple measures 1-1/4 x 4 inches. It is made and melted in the United States, and features a hot-dip galvanized OD and ID. This RMC is recognized as an equipment grounding conductor by the NEC and is threaded for installation. Designed for connecting enclosures, boxes, gutters and wireways.
Made and Melted in the United States
Hot-Dip Galvanized OD and ID
RMC Recognized as Equipment Grounding Conductor by the NEC
Product Highlights
The PICOMA 5641 conduit nipple is ideal for connecting enclosures and boxes. It is made in the USA and hot-dip galvanized.
Product Information
Standard Information
Brand: PICOMA
Manufacturer Part Number: 5641
Country of Origin: United States
Technical Specifications
Catalog Number
5641
Manufacturer
Picoma Industries
Brand
Picoma
Country of Origin
United States
Made in USA
Yes
Application
A nipple is a conduit 2 feet or less in length and used to connect enclosures, boxes, gutters, wireways, etc., together
Flexibility
No
Special Features
Made and Melted in the United States, Hot-Dip Galvanized OD and ID, RMC Recognized as as Equipment Grounding Conductor by the NEC
Standard
UL 6, CSA C22.2 45, ANSI C 80.1 and Federal Specification WW-C-581
Item Type
Rigid Conduit Nipple
Length
4.000 Inch
Inside Diameter
1.394 IN
Outside Diameter
1.660 IN
Trade Size
1-1/4 in
Finish
Hot Dipped Galvanized
Material
Steel
Mfg Standards/Approvals
Buy American Act Compliant|RoHS Compliant|UL 6|CSA C22.2 45|ANSI C 80.1|ASME B1.20.1|Federal Specification WW-C-581
