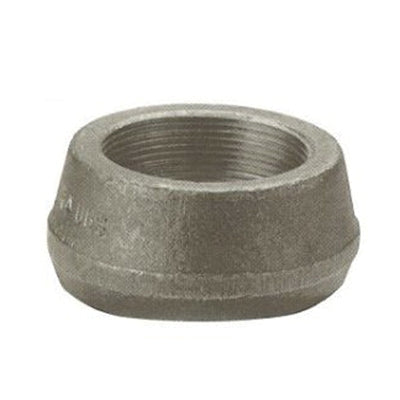

Phoenix TOL01.5X5-3 Threadolet Class 3000 1-1/2 x 5 - 3

Product Description

The Phoenix TOL01.5X5-3 is a Threadolet designed for high-performance applications. It features a forged carbon steel construction that provides strong and reliable performance in piping systems. With a connection size of one and a half by five - three inches, this fitting is suitable for various plumbing and industrial applications.

• Trans-O-Con design ensures 100% pipe strength and unrestricted fluid flow.
• Fast and easy installation without the need for cutting, shaping, or beveling.
• Low initial cost with proven strength and quality standards.

Product Highlights

The TOL01.5X5-3 is ideal for use on welding tees and both reinforced and non-reinforced branches in various piping systems.

Product Information

Standard Information

• Brand: Phoenix
• Manufacturer: Phoenix Forge

Technical Specifications

• Connection Size: 1-1/2 x 5 - 3 inches
• Connection Type: FNPT
• Inside Diameter: 1.719 inches
• Item Name: Threadolet
• Length: 1.375 inches
• Material: Carbon Steel
• Method of Manufacturer: Forged
• Outside Diameter: 2.436 inches
• Pressure Class: Class 3000
• Standards/Certifications: ASME SA105, B16.11, MSS SP-97, ASME B31.1, B31.4, B31.3, B31.8, B1.20.1, MSS SP-97, SP-25, NACE MRO175
• Applications: Used on welding tees, reinforced branches, non-reinforced branches
