Phoenix Contact 0201139 Insertion Bridge 10-Position 6.2 mm Pitch

Brand: PHOENIX CONTACT
SKU: 0201139
Availability: In Stock

Ships same day if ordered by 12 pm
$15.57
$15.57
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

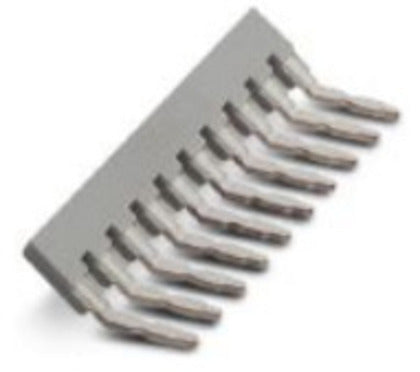

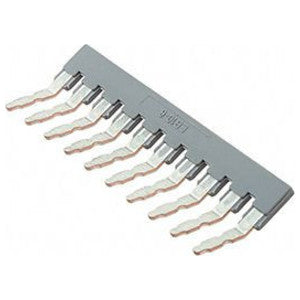

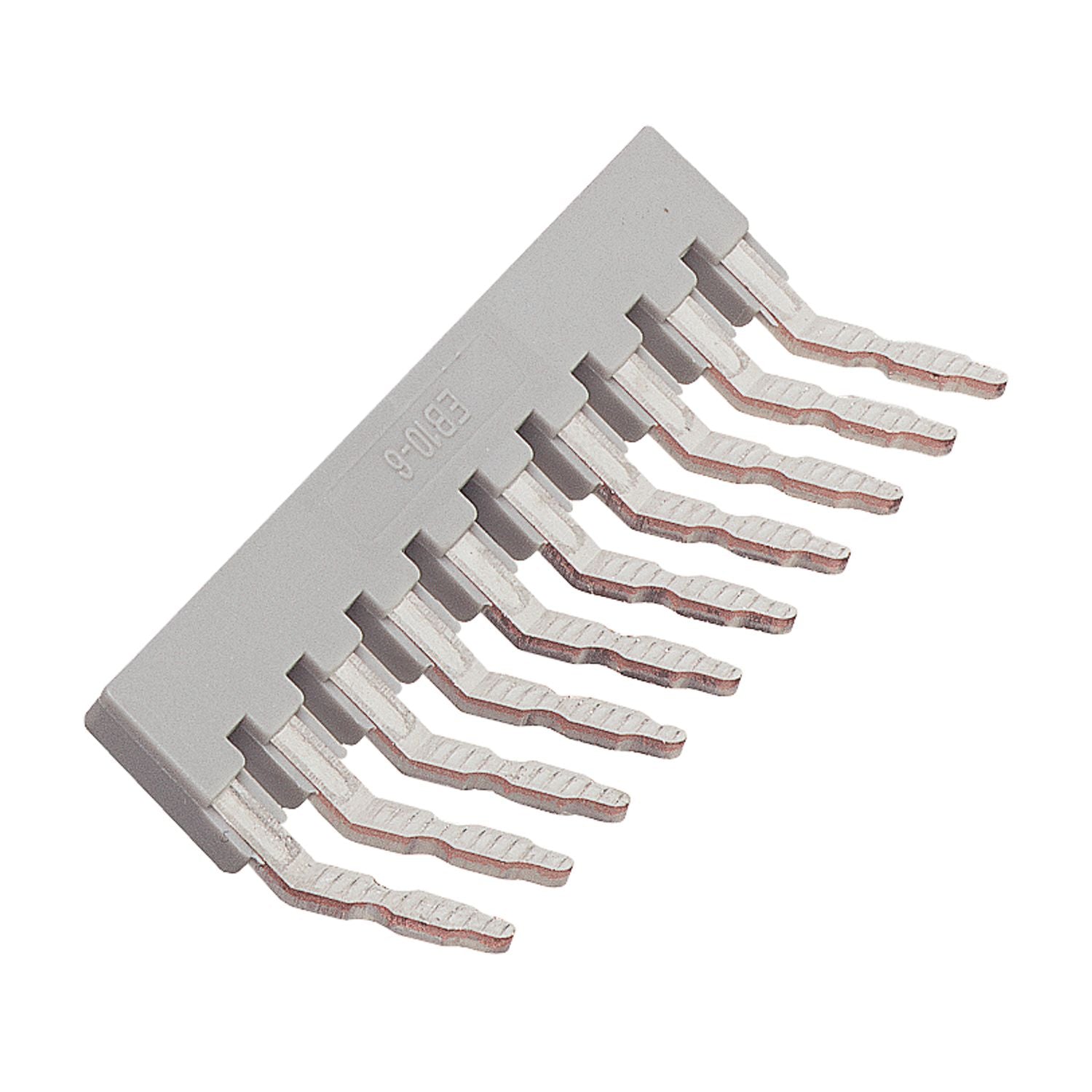

The PHOENIX CONTACT 0201139 is a 10-position grey insertion bridge designed for use with modular terminal blocks. It features a 6.2 mm pitch and is fully insulated and divisible. This insertion bridge is suitable for cross connections in terminal centers and is designed for use with the UK 5N feed-through terminal block.

  • 10-position insertion bridge
  • Designed for modular terminal blocks
  • Fully insulated and divisible

Product Highlights

This insertion bridge is suitable for cross connections in terminal centers and is designed for use with the UK 5N feed-through terminal block.

Product Information

Standard Information

  • Brand: PHOENIX CONTACT
  • Manufacturer Part Number: 0201139
  • Country of Origin: Poland
Technical Specifications
ECCN
EAR99
UNSPSC
39121400
Color Family
Gray
Pitch (Spacing)
6.2 mm
No. of Positions
10
Application
For cross connections in the terminal center
Construction Style
IEC
Manufacturer Part Number
0201139
Material
CuZn (nickel-plated)
Number of Poles
10
Standards/Approvals
RoHS Compliant|EAC Certified|UL 94-V-2 Flammability Rating
Suitable For Use With
UK 5N Feed-Through Terminal Block
Type
Insulated
Number of positions
10
Pitch
6.2 mm
Color
gray (RAL 7042)
Flammability rating according to UL 94
V2
Insulating material
PA
Ambient temperature (operation)
-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)
-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)
-5 °C ... 70 °C
Ambient temperature (actuation)
-5 °C ... 70 °C
Permissible humidity (operation)
20 % ... 90 %
Permissible humidity (storage/transport)
30 % ... 70 %
Mounting type
Screw mounting
Alternate Mfr Part Number
EB 10- 6
Approvals
EAC
Brand
PHOENIX CONTACT
Insulation Type
Insulated
Number of Circuits
10
Primary Type
Bridge
Series
EB Series
Style
Flat Pins - Angled
For Use With/Related Products
CLIPLINE Series
Contact Material
Copper Alloy
Contact Finish
Nickel
