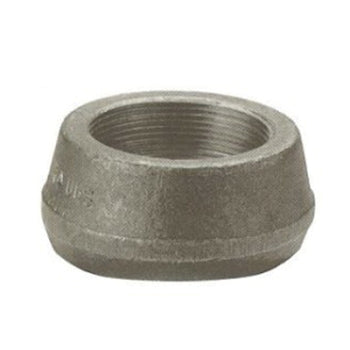

Phoenix 12810450 Threadolet Class 3000 (1/4 x 36 - 1/2 in)

Product Description

Phoenix 12810450 is a Threadolet made from forged carbon steel designed for high strength and flow efficiency. This product is suitable for a variety of plumbing applications.

• Features Trans-O-Con design for enhanced pipe strength.
• Fast and easy installation process.
• Eliminates the need for cutting or shaping pipes.

Product Highlights

This Threadolet is built to deliver reliable performance in piping systems.

Product Information

Standard Information

• Brand: Phoenix
• Manufacturer: Phoenix Forge

Technical Specifications

• Connection Size: 1/4 x 36 - 1/2 in
• Connection Type: FNPT
• Inside Diameter: 0.437 in
• Item Name: Threadolet
• Length: 3/4 in
• Material Specifications: ASTM A105, ASTM A350 LF2
• Material: Carbon Steel
• Method of Manufacturer: Forged
• Outside Diameter: 7/8 in
• Pressure Class: Class 3000
• Sub Brand: Trans-O-Con
• Applications: Used on welding tees, reinforced branches, non-reinforced branches
• Standards/Certifications: ASME SA105, B16.11, MSS SP-97, ASME B31.1, B31.4, B31.3, B31.8, B1.20.1, MSS SP-97, SP-25, NACE MRO175
