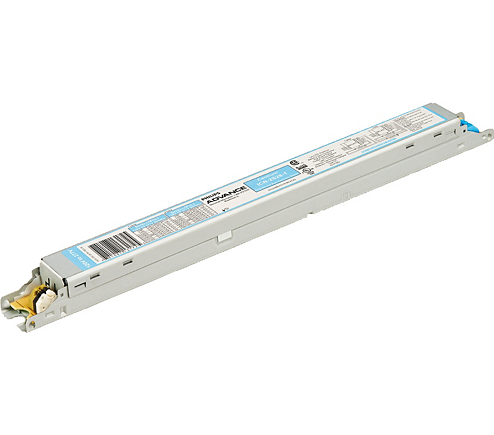

Philips ICN2S39T35M SIG 501668 277V FLU BALLAST

Product Description

The Philips ICN2S39T35M is an electronic fluorescent ballast designed for efficient operation of F39T5/HO lamps. This ballast operates at an input voltage range of one hundred twenty to two hundred seventy-seven volts and delivers a rated lamp power of thirty-nine watts. It ensures reliable performance with features that include automatic restart and programmed start ignition methods.

• Input Current: 0.73 A (Max)
• Total Harmonic Distortion: 10%
• Power Factor: 0.98

Product Highlights

This ballast is suitable for use with one or two lamps and can be used outdoors. It is UL recognized and comes with a CSA certificate.

Product Information

Standard Information

• Manufacturer: Philips Lighting
• Ballast Type: Electronic Fluorescent

Technical Specifications

• Input Voltage: 120 to 277 V
• Rated Lamp Power: 39 W
• Ignition Time: 1.5 s
• Number of Lamps: 1/2 piece/unit

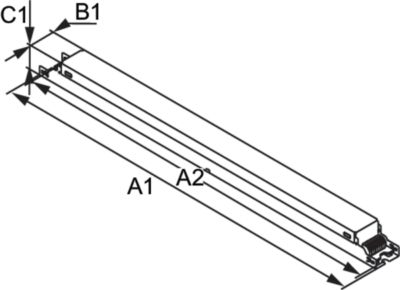

• Housing Dimensions: 14.17 x 1.18 x 1.06 inches
• Weight: 441 g
• Wire Type: Solid
• Wire Gauge: 18 AWG
