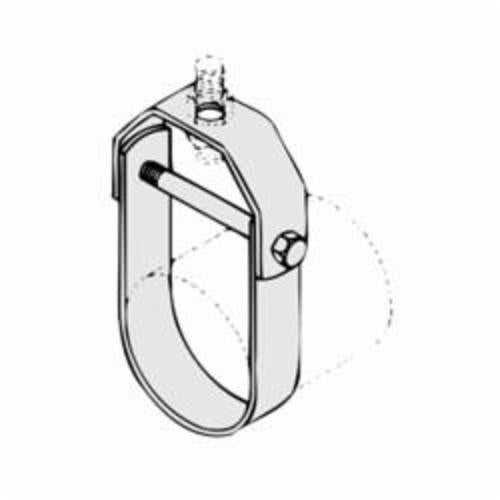

Phd Manufacturing 451 0050eg Standard Clevis Hanger, 1/2 in Pipe, 730 lb Load

Product Description

The PHD MANUFACTURING 451 0050EG standard clevis hanger is designed for the suspension of non-insulated stationary pipe lines. It supports a 1/2 in pipe with a 3/8 in rod and has a load capacity of 730 lb. Constructed from carbon steel with an electro-galvanized finish, it measures 2-7/8 in in height.

• UL listed in the US and FM approved for 2-1/2 to 8 in only
• Features an upper locknut to ensure proper performance
• Includes a 1/4 in cross bolt

Product Highlights

Standard clevis hanger for suspending non-insulated stationary pipe lines. Features carbon steel construction with electro-galvanized finish.

Product Information

Standard Information

• Brand: PHD MANUFACTURING
• Manufacturer Part Number: 451 0050EG
• Country of Origin: US

Technical Specifications

• Manufacturer Part Number: 451 0050EG
• Manufacturer: PHD Manufacturing
• Brands: PHD
• Height: 2-7/8 in
• Finish: Electro-Galvanized
• Load Rating: 730 lb
• Material: Carbon Steel
• Model: 451
• Trade Size: 1/2 in
• Load Capacity: 730 lb
• Pipe Size: 1/2 in
• Rod Size: 3/8 in
• Series: FIG 451
• Type: Standard
• Nominal Size: 1/2 in
• UNSPSC: 31162306
