Pete'S Plugs 110 Pete's Plug 1/4 inches MPT

Product Description

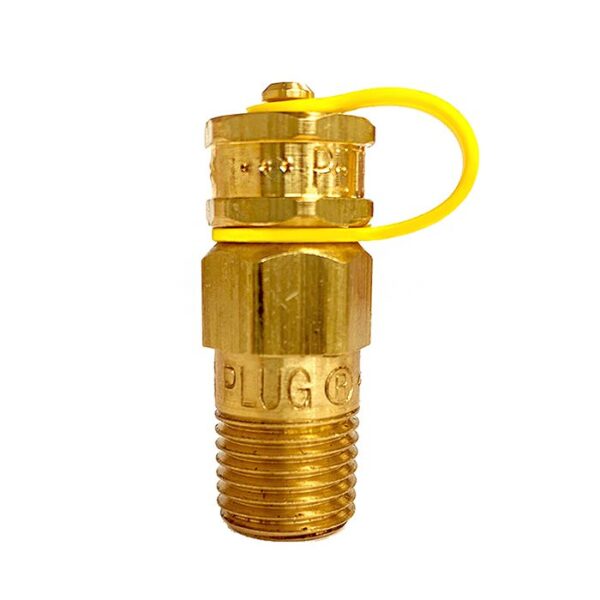

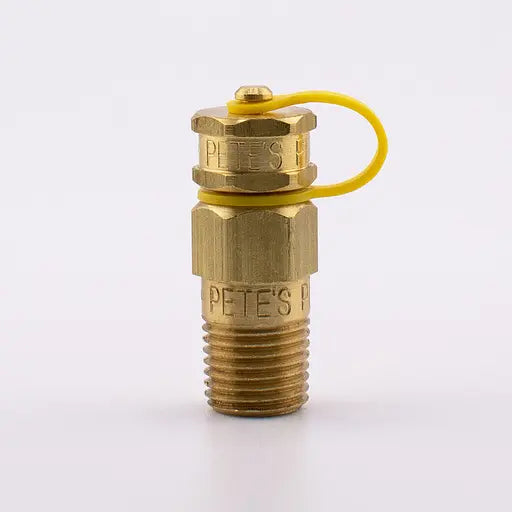

The Pete's Plugs 110 is a test plug, commonly known as "Pete's Plug". Built for extreme performance and long-term reliability, it is engineered for demanding sealing applications where durability and chemical resistance are essential. It features 1/4" NPT threads and a 1 1/2" length. The Nordel core ensures long-lasting performance.

• Brass body and cap material
• Nordel core
• Color coded Nordel cap strap

Product Highlights

The Pete's Plugs 110 is ideal for pressure and temperature testing in pressurized systems. It provides a cost-effective alternative to permanent gauge installations.

Product Information

Standard Information

• Brand: PETE'S PLUGS
• Manufacturer Part Number: 110
• Country of Origin: USA

Technical Specifications

• MPN: 110
• Brand: PETE'S PLUGS
• SKU: PETP-110
• Base Unit: EA
• Core: Nordel
• Thread: 1/4" NPT
• Length: 1 1/2"
• Temp Range - Continuous During Operating with Cap Off: 45¼F to 275¼F
• Temp Range - Continuous Static with Cap On: 30¼F to 275¼F
• Temp Range - Intermittent During Operating with Cap Off: 275¼F
• Temp Range - Intermittent Static with Cap On: 275¼F
• Maximum Pressure During Operating with Cap Off: 400 psig
• Maximum Pressure Static with Cap On: 500psig
• Body Material: Brass
• Core Material: Nordel
• Strap Color Indication: Yellow
• Model: 100 1/4" BRASS NORDEL VALVE CORE
• Country of Manufacture: United States
• Valve Operation: Manual
• Country of Origin: United States
