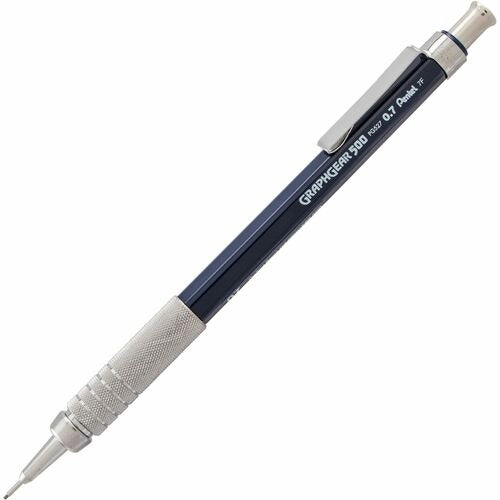

Pentel PENPG527C Graphgear 500 Drafting Pencil 0.7mm

Product Description

The PENTEL PENPG527C GraphGear 500 is a mechanical drafting pencil built for precision technical drawing and drafting work. It accepts 0.7mm lead and uses a 4mm fixed sleeve that stays extended during use, making it compatible with drafting templates and straightedges. The barrel is weighted for balanced handling, and the metallic mesh grip provides consistent control during extended drawing sessions. Preloaded with Pentel Super Hi-Polymer HB lead, the pencil delivers strong, dark lines without sharpening. A built-in lead hardness indicator on the top of the barrel lets the user track lead grade at a glance. A top-click advance mechanism and a stationary eraser with tip complete the feature set.

The PENPG527C is suited for technical drafting, engineering drawing, architectural work, and detailed illustration. The fixed sleeve design makes it practical for template work where a retractable tip would catch on stencil edges. The blue barrel version is a standard choice in office, classroom, and drafting studio environments. It is used by drafters, engineers, architects, students, and design professionals who need consistent, fine-line output from a mechanical pencil.

Key Features

• 0.7mm lead size for fine, consistent line weight
• 4mm fixed sleeve for use with drafting templates and straightedges
• Metallic mesh grip for control during extended use
• Weighted barrel for balanced, fatigue-reducing handling
• Built-in lead hardness indicator on the top barrel
• Preloaded with Pentel Super Hi-Polymer HB lead — no sharpening required
• Includes stationary eraser and eraser tip

Compatibility

Compatible with Pentel Super Hi-Polymer 0.7mm lead refills and Pentel Z21 eraser refills.

Installation Notes

No tools are required to load lead or replace the eraser. To advance lead, press the top-click mechanism while holding the pencil upright. When replacing the eraser, remove the top cap and pull out the eraser unit before inserting the Z21 refill. Keep the fixed sleeve clear of debris to maintain accurate template alignment.
