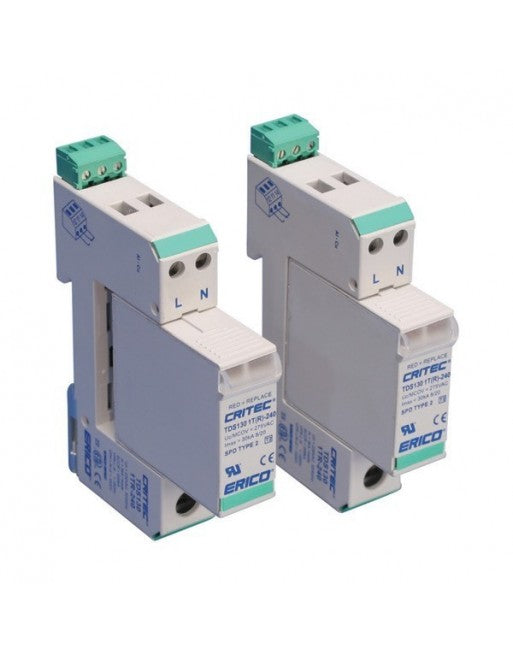

Pentair TDS1301T150 Surge Protection Device

Product Description

The PENTAIR TDS1301T150 is designed to provide reliable surge protection for electrical systems. It utilizes TD technology with thermal disconnect for enhanced safety. The device accommodates multiple protection modes including Line to Neutral (L-N), Line to Protective Earth (L-PE), and Neutral to Protective Earth (N-PE). It is suitable for DIN rail mounting, making installation straightforward. A mechanical flag indicates the operational status of the device. The enclosure is made from UL 94V-0 thermoplastic, ensuring durability and safety.

• Provides comprehensive surge protection for electrical systems.
• Features thermal disconnect technology.
• DIN rail mounting for easy installation.

Product Highlights

This surge protection device is essential for safeguarding electrical components from voltage spikes and surges.

Product Information

Standard Information

• Part Number: TDS1301T150
• Brand: PENTAIR

Technical Specifications

• Nominal System Voltage (Un): 120 - 150 VAC
• Max Continuous Operating Voltage (Uc): 170 VAC
• Voltage Protection Rating (VPR): 800 V @ 3 kA L-N, 500 V @ 3 kA L-PE
• Nominal Discharge Current (In): 8 kA 8/20 µs
• Max Discharge Current (Imax): 20 kA 8/20 µs
• Back-Up Overcurrent Protection: 63 A
• Mounting Type: 35 mm top hat DIN rail
• Enclosure Rating: IP 20
• Operating Temperature: -40 to 80 °C
• Weight: 0.12 kg
