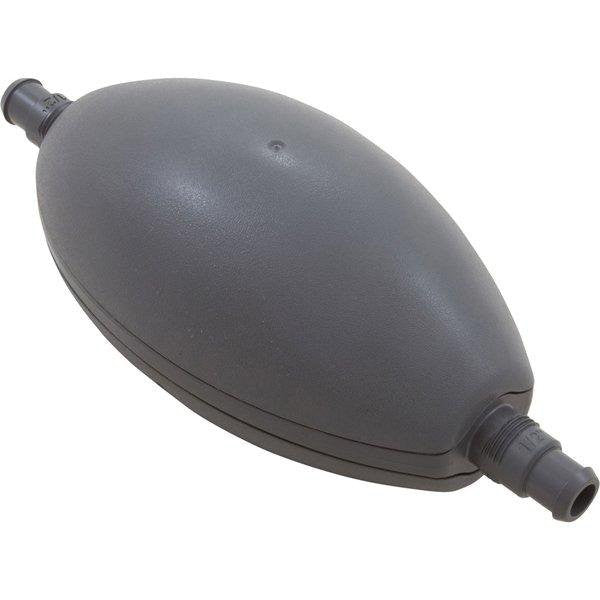

Pentair ll10pm Back-up Valve Gray Pool Cleaner

Product Description

The PENTAIR ll10pm is a gray back-up valve designed as a direct replacement component for Kreepy Krauly automatic pool cleaners. The back-up valve controls the timed reversal of water flow within the cleaner, redirecting the unit when it becomes stuck at a wall, step, or other obstruction. This valve is a critical operational component that keeps the cleaner moving in a random pattern across the pool floor. Installation is performed by pool service technicians during routine cleaner maintenance or component replacement service calls.

The ll10pm is used in residential inground pool applications where Kreepy Krauly Legend and Legend Platinum automatic suction-side pool cleaners are in service. It is specifically applicable to Kreepy Krauly Platinum cleaners from 2012 model year, Pentair Letro Legend Platinum and Truck Series cleaners built before 2012, Kreepy Krauly Legend models LL505G and LL505GG, and Pentair Kreepy Krauly Legend Platinum cleaners from 2011 and earlier. This part carries the gray color designation consistent with the Platinum series cleaner line.

Key Features

• Gray finish matches Kreepy Krauly Platinum series cleaner components
• Controls timed water-flow reversal to redirect the cleaner away from obstacles
• OEM-style direct replacement for specified Kreepy Krauly Legend and Legend Platinum models
• Compatible across multiple production years of the Legend and Legend Platinum cleaner lines

Compatibility

Compatible with Kreepy Krauly Platinum cleaners 2012 model year, Pentair Letro Legend Platinum and Truck Series cleaners built before 2012, Kreepy Krauly Legend LL505G and LL505GG cleaners, and Pentair Kreepy Krauly Legend Platinum cleaners from 2011 and earlier.

Installation Notes

Back-up valve replacement on suction-side pool cleaners is typically performed by a pool service technician. Before servicing, disconnect the cleaner from the suction line and remove it from the pool. No special tools are generally required for valve replacement on this cleaner type, but refer to the cleaner service manual for disassembly sequence. Verify the replacement valve orientation is correct before reassembly to ensure proper timed reversal function.

Technical Specifications

• Color: Gray
• Component Type: Back-Up Valve
• Application: Suction-Side Automatic Pool Cleaner

Standard Information

• Brand: PENTAIR
• Manufacturer Part Number: ll10pm
