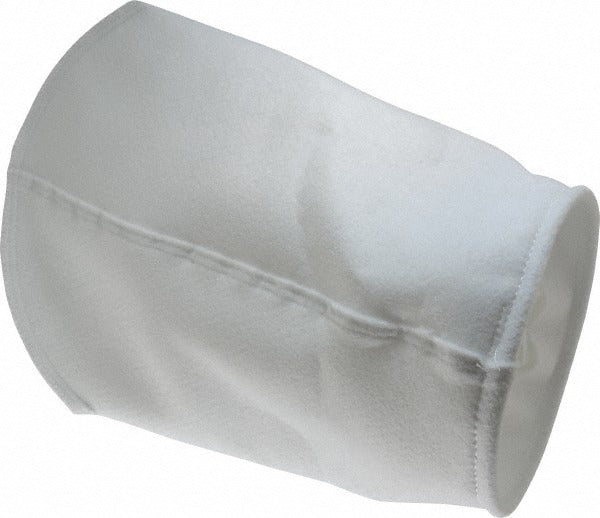

Pentair KE50K1S High Flow Bag Filter 50 Micron 90 Gpm

Product Description

The PENTAIR KE50K1S is a Size 1 high-flow bag filter rated at 50 microns with a maximum flow rate of 90 GPM. Built with a polyester filter media, it measures 7 inches in diameter and 16.5 inches in length, providing 2 square feet of filter area. This filter is designed for industrial and commercial liquid filtration systems where high flow capacity and particulate removal are critical. It handles process fluids up to 300 degrees F, making it suitable for a wide range of fluid handling applications. Licensed plumbers, pipefitters, and industrial maintenance technicians are the primary installers.

The KE50K1S fits standard Size 1 high-flow bag filter housings used in commercial and industrial process filtration, water treatment, and similar liquid filtration systems. Its 50-micron rating removes medium-fine particulate from process streams without the pressure drop associated with finer-rated media. The 90 GPM maximum flow rate accommodates high-demand systems where conventional standard-flow bags would restrict throughput. This filter is well suited for applications requiring consistent filtration efficiency across repeated change-out cycles.

Key Features

• 50-micron polyester filter media for medium-fine particulate removal
• 90 GPM maximum flow rate supports high-throughput liquid filtration systems
• 2 square feet of filter area in a Size 1 form factor
• Rated to 300 degrees F maximum working temperature
• 7-inch diameter and 16.5-inch length for standard Size 1 high-flow housing fitment

Compatibility

Designed as a Size 1 high-flow bag filter replacement for standard industrial and commercial bag filter housings that accept Size 1 high-flow configuration inserts.

Installation Notes

Installation should be performed by a qualified plumber, pipefitter, or industrial maintenance technician. Depressurize and isolate the filter housing completely before opening and replacing the bag. Verify that the housing inlet and outlet valves are fully closed and that residual pressure has been relieved before servicing. Follow applicable local plumbing codes and the housing manufacturer guidelines for proper bag seating and housing closure torque procedures.
