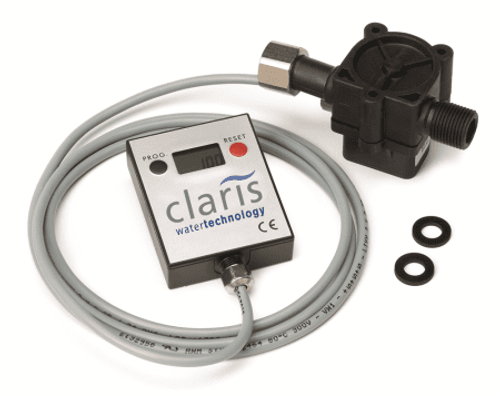

Pentair EV433932 Flowmeter

Product Description

The Pentair EV433932 flowmeter is designed to monitor the usage rate of CLARIS water filter systems. It helps determine the optimal time for cartridge replacement based on actual filtrate volume measurement. This device calculates and displays remaining filtration capacity in liters, ensuring efficient water filtration.

• Monitors CLARIS water filter usage rate.
• Calculates and displays remaining filtration capacity in liters.
• Indicates filter cartridge replacement needs.

Product Highlights

The flowmeter operates within specific pressure and temperature ranges for reliable performance in swimming pool and spa applications.

Product Information

Standard Information

• Brand: Pentair
• MPN: EV433932

Technical Specifications

• Connection: In 3/8 BSP F nut / out 3/8 BSP M
• Operating Pressure: 2 - 8 bar (29 - 116 PSI)
• Flow Rate: 10 - 100 (.04 - .44 gpm)
• Pressure Loss: 0.2 (3 PSI)
• Precision: +/-5 [%]
• Water Temperature: 39 - 86 °F (+4 - +30 °C)
• Ambient Temperature: 39 - 104 °F (+4 - +40 °C)
• Dimensions: 3.15 x 1.81 x 1.69 inches (80 x 46 x 43 mm)
• Installation Position: Horizontal is recommended
