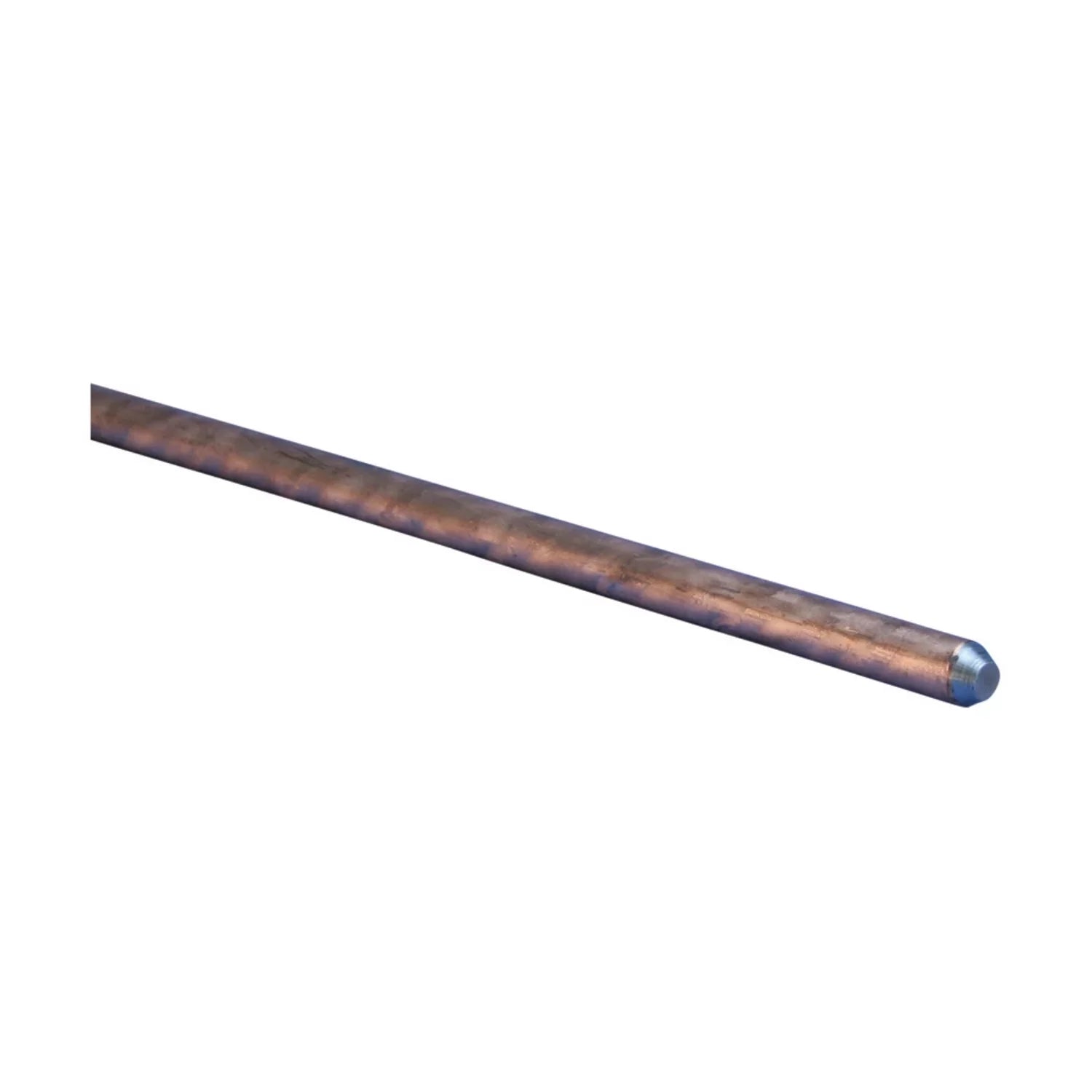

Pentair 615800 nVent ERICO Copper-Bonded Ground Rod

Product Description

The Pentair 615800 is a copper-bonded ground rod designed for effective grounding solutions. It features a core made of high-strength steel and is coated with 99.9% pure electrolytic copper. This design ensures strength and corrosion resistance, crucial for durability in various environments. The pointed tip allows for easier installation in the ground, while the markings on the rod make it easy to identify specifications for inspections.

• Constructed with a high carbon steel core for strength.
• Coated with a 99.9% pure electrolytic copper layer for corrosion resistance.
• Meets IEC EN 62561-2 and ANSI/NEMA GR1 standards.

Product Highlights

The Pentair 615800 ground rod is effective for grounding electrical systems, helping to ensure safety and performance.

Product Information

Standard Information

• Material: Copper-Bonded Steel
• Ground Rod Diameter, Nominal: 5/8 inches

Technical Specifications

• Ground Rod Diameter, Actual: 0.56 inches
• Length: 10 feet
• Plating Thickness: 10 mil
• Tensile Strength: 80,000 psi Min
