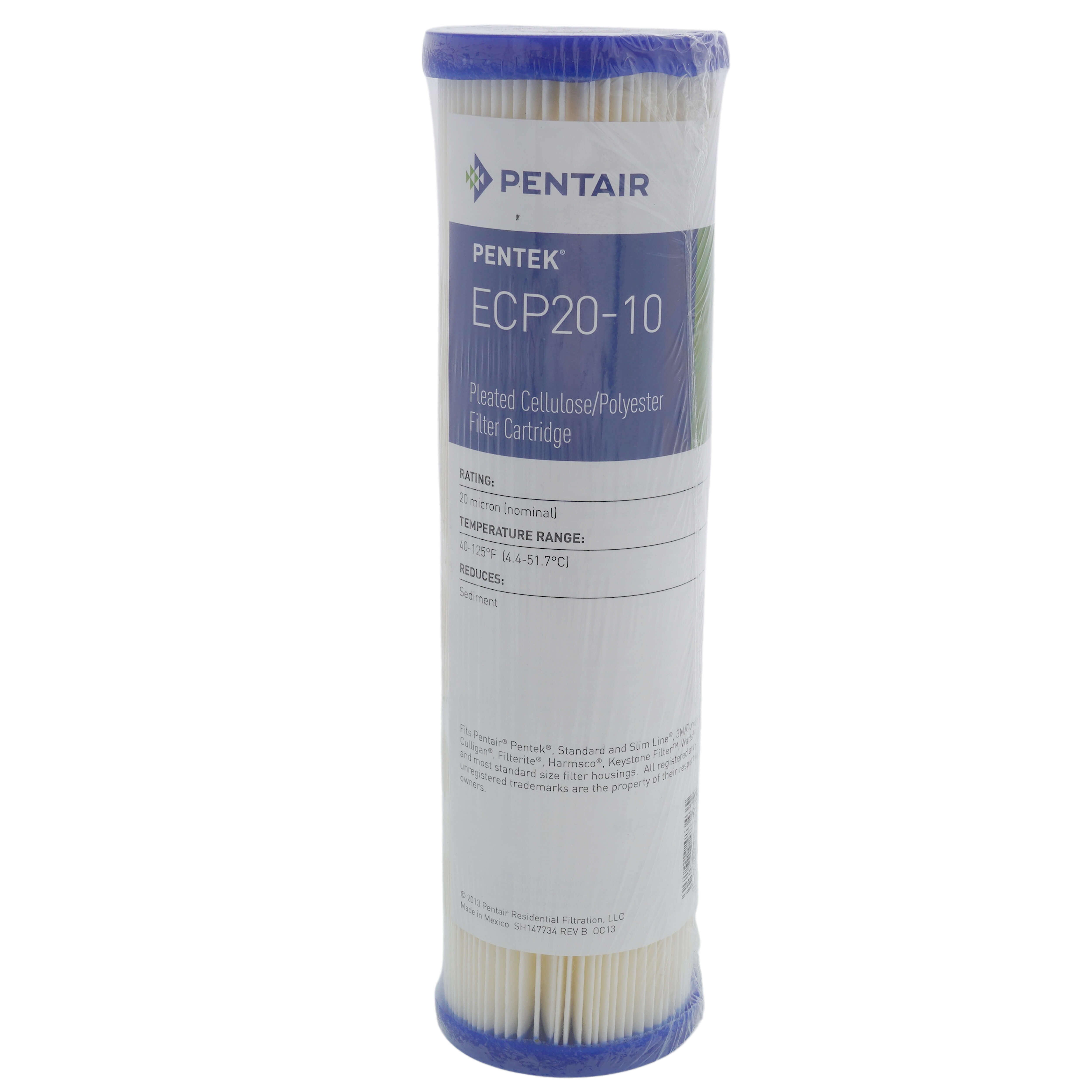

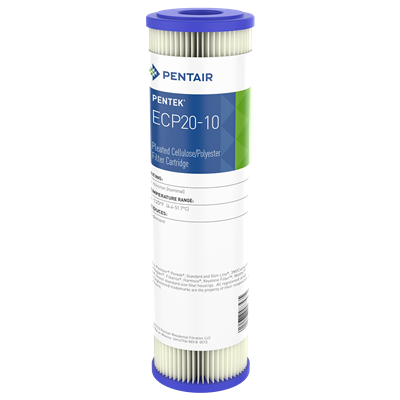

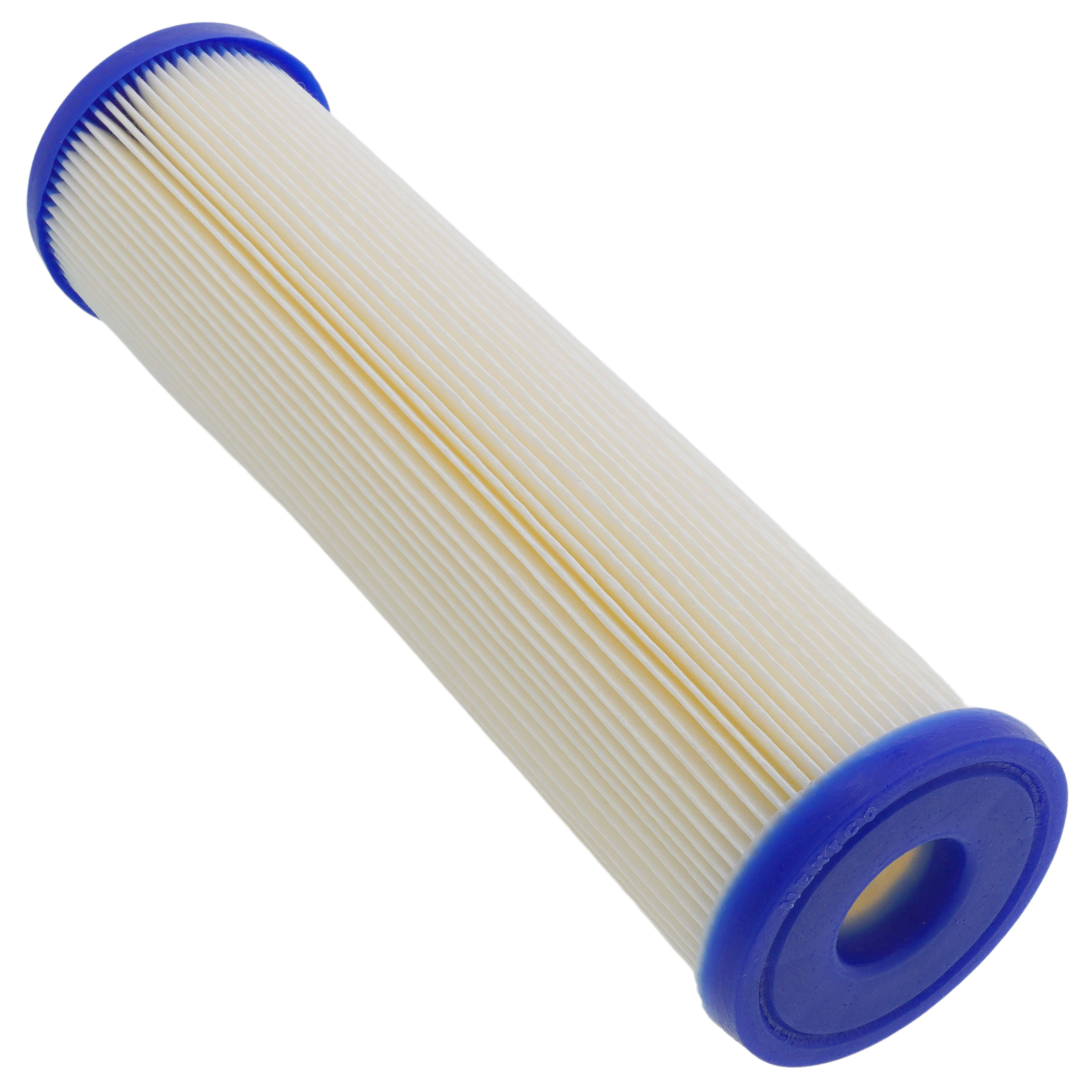

Pentair 255483-43 Ecp20-10 Pleated Cellulose Polyester Sediment Filter Cartridge (20 Microns) ECP20-10

Product Description

The PENTAIR 255483-43 Ecp20-10 is a pleated cellulose polyester sediment filter cartridge. This cartridge features a special formulation of resin-impregnated cellulose and polyester fibers, providing higher wet strength than regular cellulose cartridges. It also provides high flow rates and dirt-holding capacity, while maintaining extremely low pressure drop.

• Replaces Pentek CP and HFCP Series Cartridges
• Special formulation of resin-impregnated cellulose and polyester fibers
• Provides higher wet strength than regular cellulose cartridges

Product Highlights

This filter cartridge is ideal for point-of-entry filtration, offering minimal unloading and media migration with a nominal 20-micron rating.

Product Information

Standard Information

• Brand: PENTAIR
• Manufacturer Part Number: 255483-43

Technical Specifications

• Type: Sediment
• Height: 9.75"
• Material: Polyester
• Application: Point of Entry
• Filter Type: Pleated Cellulose
• Product Type: Filter Cartridge
• Micron Rating: 20 Micron
• Flow Rate (GPM): 10
• Diameter (Inches): 2.625"
• Max Water Temp (F): 125
• Reduction Claim: Sediment
• Brand: Pentair / Pentek
• MPN: 255483-43
• Series: ECP
• Model: ECP20-10
• Micron: 20
• Min. Temp (F): 40
• Max Temp (F): 125
• Specifications: Cellulose Polyester (Filter Media); Vinyl Plastisol (End Caps); Polypropylene (Big Blue End Caps); Polypropylene (Core)
