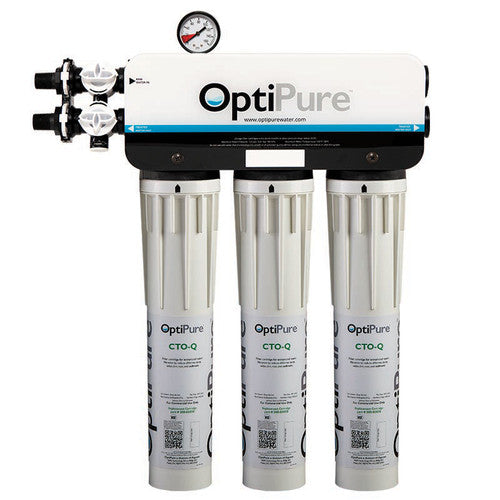

Pentair 170-52133 OptiPure QTCR-3 Triple Filter System

Product Description

The Pentair 170-52133 OptiPure QTCR-3 Triple Filter System is designed for effective water treatment. It uses three parallel-plumbed 'Qwik-Twist' cartridges for efficient filtration. The system provides sediment filtration down to 0.5 microns and reduces chlorine, taste, and odor in drinking water.

• Features a mounting bracket for easy installation.
• Includes a full-flow inlet shut-off valve for convenience.
• Equipped with a multi-function valve for shutoff, bypass, and maintenance flush options.

Product Highlights

This filter system features a built-in pressure gauge for monitoring filter conditions and is certified under NSF Standard 42. It operates with a pressure range of 10-125 psi and a temperature range of 35-100 degrees Fahrenheit. The system achieves a service flow rate of 6.75 gallons per minute and has a reduction capacity of 67,500 gallons.

Product Information

Standard Information

• Brand: Pentair
• MPN: 170-52133

Technical Specifications

• Dimensions: 23.25 inches H x 18.75 inches D x 4.75 inches W
• Connection - Inlet & Outlet: 0.5 inches NFPT
• Operating Pressure Range: 10-125 psi (0.7 - 8.6 bar)
• Inlet Water Temperature Range: 35 - 100 degrees Fahrenheit (2 - 38 degrees Celsius)
• Shipping Weight: 14 lbs.
• Performance: Reduces chlorine, taste, and odor
• Reduction Capacity: 67,500 gallons (225,488 liters)
• Service Flow Rate: 6.75 gallons per minute (17.03 liters per minute)
• Sediment Reduction: 0.5 micron (nominal)
