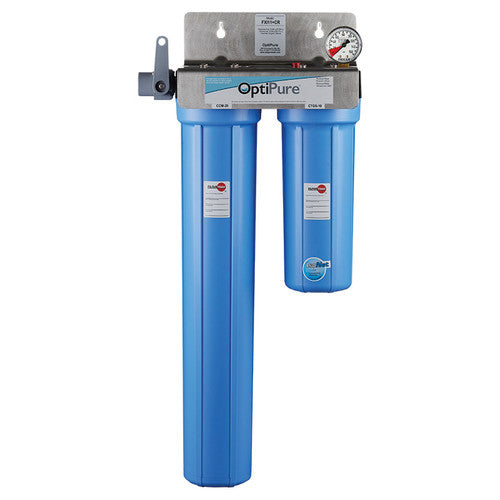

Pentair 160-50185 OptiPure FXI11+CR Dual Housing System

Product Description

The Pentair OptiPure FXI11+CR Dual Housing System, part number 160-50185, is designed for effective water filtration. The system utilizes gradient-density sediment filtration down to 0.5 microns, activated carbon filtration, and catalytic carbon filtration, ensuring clean and safe water.

• Chlorine reduction capacity of 20,000 gallons at a service flow rate of 3 gallons per minute.
• Features a mounting bracket, full-flow inlet shut-off valve, and built-in pressure gauge.
• Includes IsoNet scale and corrosion inhibitor (70 grams).

Product Highlights

This filtration system is effective for both residential and light commercial applications, optimizing water quality while minimizing waste through removable drop-in cartridges.

Product Information

Standard Information

• MPN: 160-50185
• Brand: Pentair

Technical Specifications

• Dimensions: 24.6 inches height x 11.3 inches width x 5.8 inches depth
• Connection - Inlet & Outlet: 1/2 NFPT
• Operating Pressure Range: 10-125 psi
• Inlet Water Temperature Range: 35 - 100°F
• Shipping Weight: 14 lbs.
• Chlorine Reduction Capacity: 20,000 gallons
• Service Flow Rate: 3 gallons per minute
• Sediment Reduction: 0.5 microns nominal
• Scale & Corrosion Inhibitor: IsoNet (70 grams)
