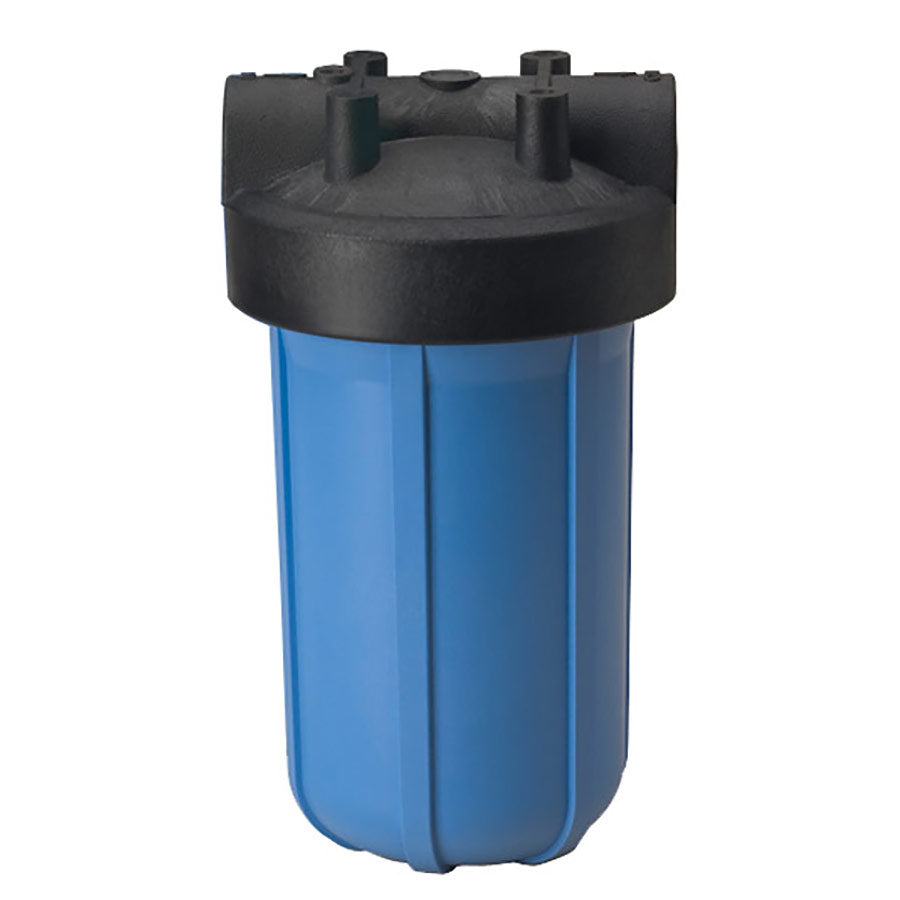

Pentair 150238 Big Blue Filter Housing 10 Inch Single Port

Product Description

The PENTAIR 150238 is a Big Blue whole-house filter housing designed for high-flow and heavy-sediment filtration applications. The single-port housing accepts standard 10 x 4.5 inch filter cartridges, providing the extra-large sump volume needed to reduce pressure drop and extend service intervals in demanding water treatment systems. The sump body is constructed from reinforced polypropylene, offering broad chemical compatibility and resistance to the mechanical stress common in commercial and residential point-of-entry installations. Licensed plumbers and water treatment technicians are the primary installers of this housing in residential and light commercial service lines.

This housing is suited for point-of-entry residential installations, light commercial water treatment systems, and anywhere high-flow sediment or particulate filtration is required. The oversized 4.5 inch cartridge diameter allows for greater media volume per vessel, which means fewer housings are needed to achieve target flow rates compared to standard 2.5 inch cartridge systems. It is a common choice for whole-house sediment pre-filtration, well water systems, and irrigation supply lines where high-volume throughput is a priority.

Key Features

• Accepts 10 x 4.5 inch cartridges for high-capacity, high-flow filtration
• Reinforced polypropylene sump construction for durability and chemical resistance
• Single-port inlet and outlet configuration simplifies plumbing layout
• Compatible with a wide range of 4.5 inch diameter replacement cartridges
• Extra-large sump volume reduces the number of vessels required in high-flow installations

Compatibility

Compatible with standard 10 x 4.5 inch diameter filter cartridges across a wide range of media types. Designed for use in residential and light commercial point-of-entry water filtration systems requiring large-format Big Blue cartridges.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local IPC requirements. Shut off the main water supply and relieve system pressure before installing or servicing the housing. Do not exceed the rated pressure or temperature specifications for this housing. Use thread sealant rated for potable water on all NPT connections.

Technical Specifications

• Cartridge Size: 10 x 4.5 inches
• Number of Ports: 1
• Housing Material: Reinforced polypropylene
• Application: High-flow and heavy-sediment filtration

Standard Information

• Brand: PENTAIR
• Manufacturer Part Number: 150238
