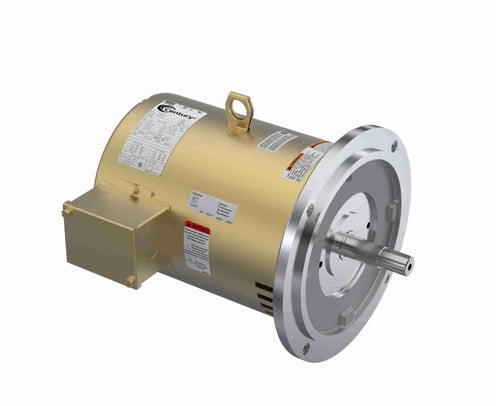

Pentair 071365S C Series 7.5HP Motor 208-220/440 Volts Three Phase

Product Description

The Pentair 071365S C Series 7.5HP Motor is designed for optimal performance in pool and spa systems. This 7.5 HP motor is a fit for the C Series pumps, providing efficient and durable performance. It operates at 208-220/440 volts and 3 phase. The motor is built with heavy-duty materials to withstand harsh pool environments.

• 40°C Ambient
• Reversible
• External Slinger

Product Highlights

High-quality 7-1/2HP motor is a perfect fit for the C Series pumps, providing efficient and durable performance.

Product Information

Standard Information

• Brand: PENTAIR
• Manufacturer Part Number: 071365S

Technical Specifications

• Model: C-Series
• Catalog No: R232M2A
• Part Description: 7.5/7.5,3600/3000,DP,184TDZ,3/60/50/220/440#190/380
• Category: Induction Motors
• Stock: Yes
• Output HP: 7 1/2 Hp
• Output KW: 5.6 kW
• Frequency: 60 Hz
• Voltage: 208-220/440V
• Current: 18.6/9.3 A
• Speed: 1 Speed (1-Spd)
• Service Factor: 1.15
• Phase: 3
• Duty: Continuous
• Insulation Class: F
• Frame: 184TDZ
• Enclosure: Drip Proof
• Overload Protector: No
• Ambient Temperature: 40 °C
• UL: Recognized
• CSA: Y
• Electrical Type: Polyphase
• Poles: 2
• Rotation: Reversible
• Mounting: Round
• Motor Orientation: Horizontal
• Drive End Bearing: BALL
• Opp Drive End Bearing: BALL
• Frame Material: Rolled Steel
• Shaft Type: Keyed
• Overall Length: 15.82 in
• Frame Length: 10.50 in
• Shaft Diameter: 1.000 in
• Shaft Extension: 3 in
• Motor Type: Pool
• Pump Part Type: Motor
• Motor Amperage: 20.3A-18.4A/9.2A
• Frame Type: 213TY
• Horsepower: 7.5hp
• Total Horsepower: 8.7thp
• Manufacturer: Pentair
• Capacitor On Top: No
• Product Type: Pool Motor
• Installation Type: Residential
