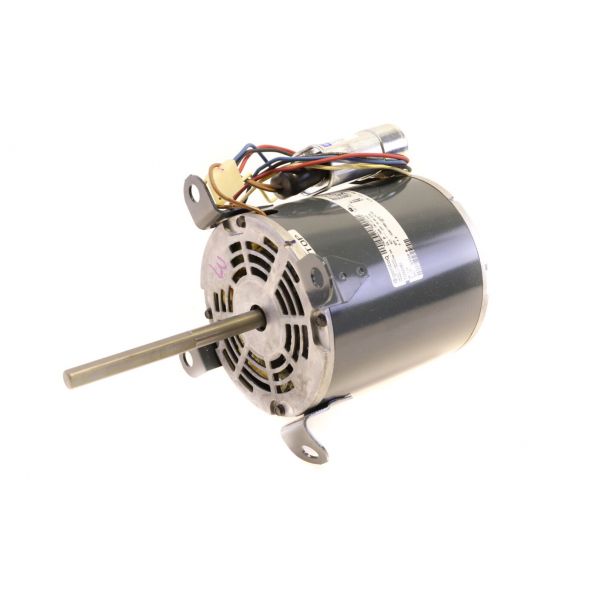

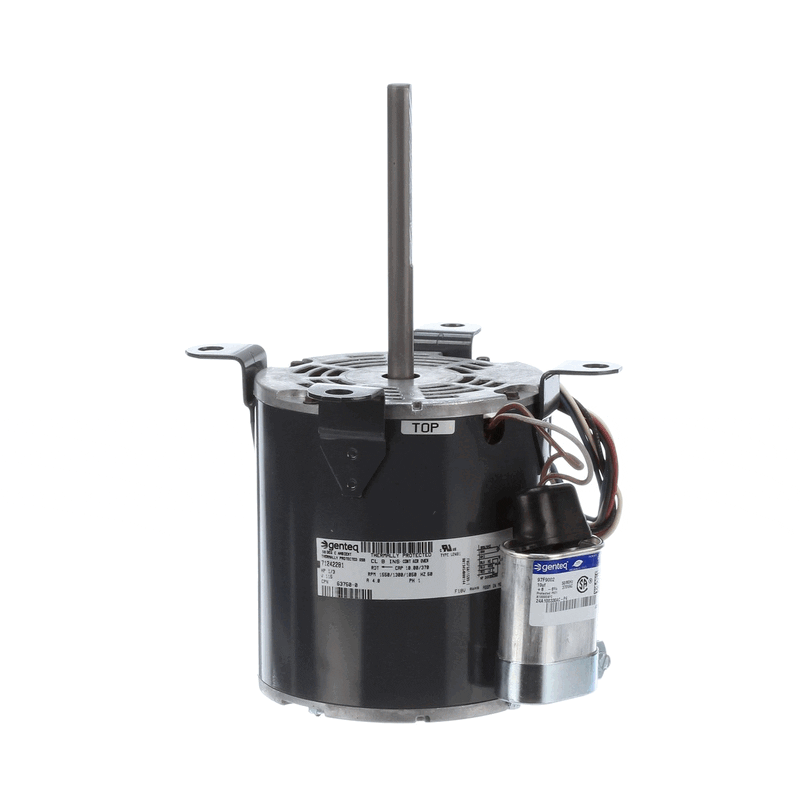

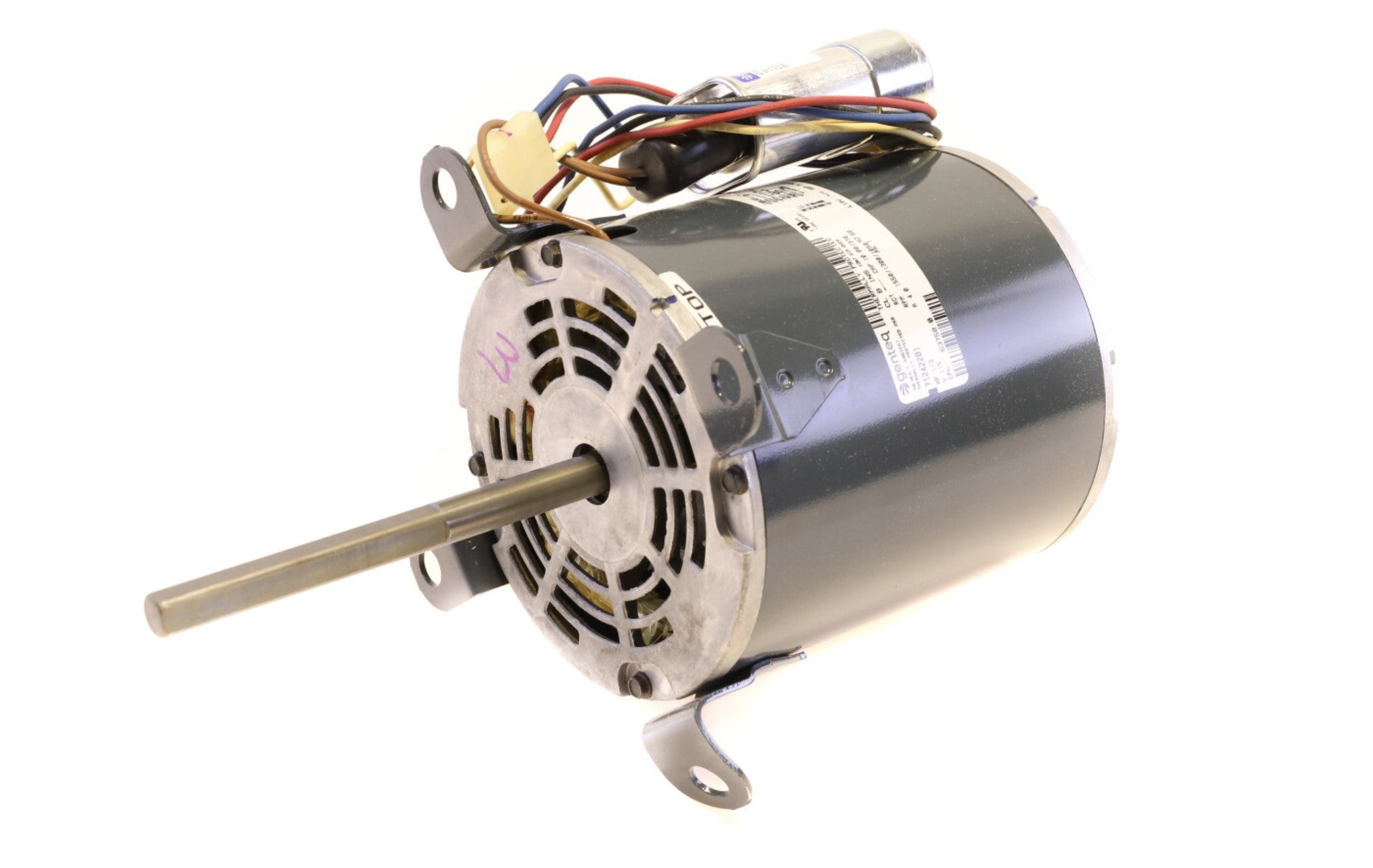

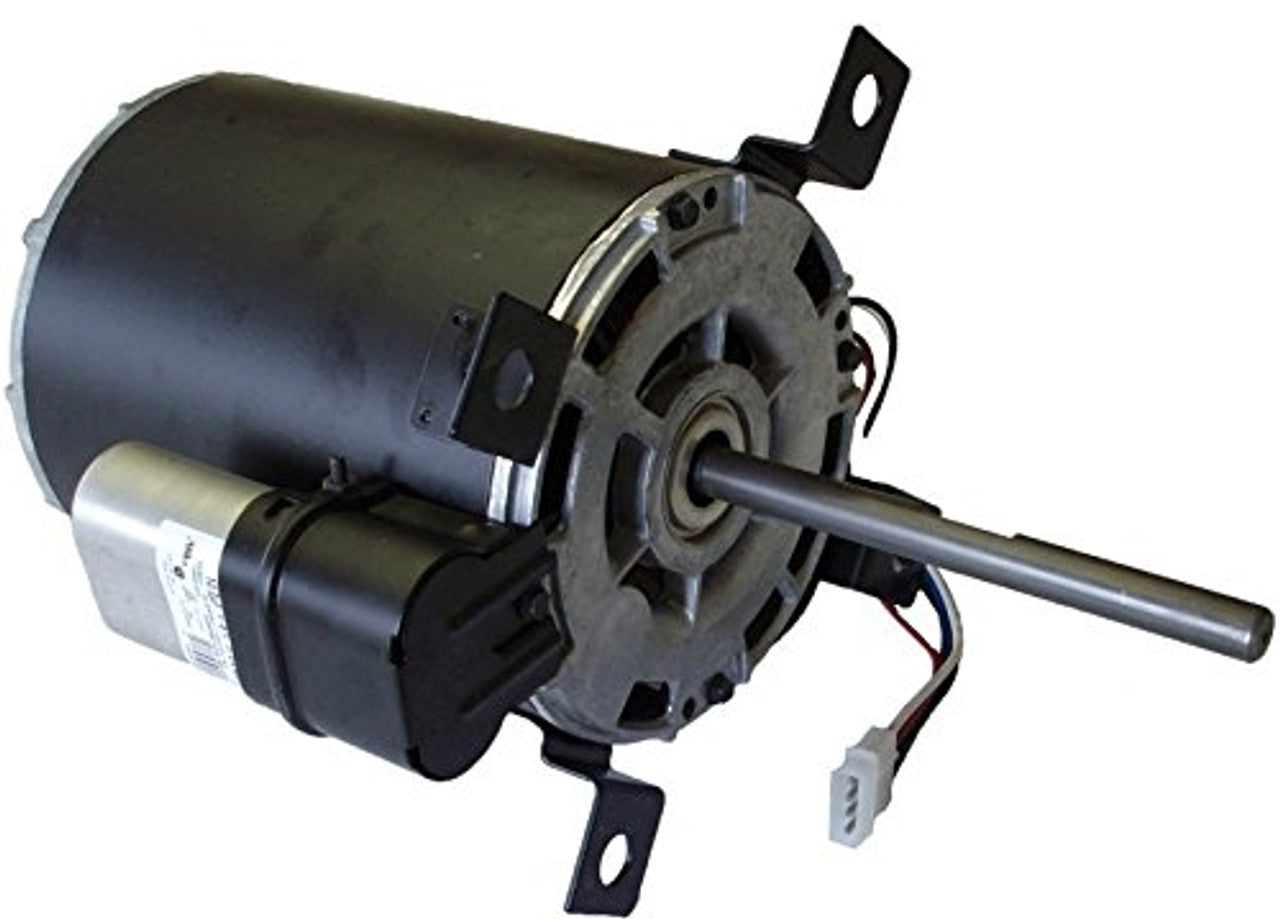

PENN VENT 63750-0 Electric Motor

Product Description

The Penn Vent 63750-0 is a reliable electric motor crafted for ventilation tasks. This PSC motor operates at 115 volts and 60 Hz, featuring three adjustable speeds: 1550, 1300, and 1050 RPM. It comes equipped with a 10MFD capacitor, making it an ideal replacement for models like SX115VSRC, DX16VSR, and FX16VSR.

• Operates at multiple speeds: 1550, 1300, 1050 RPM.
• Rated at 1/3 horsepower.
• Shaft dimensions of 1/2 x 5-1/2 inches with a 1-inch flat center.

Product Highlights

This motor is designed to handle various ventilation needs efficiently, with class B insulation and a maximum ambient temperature rating of 50 degrees Celsius.

Product Information

Standard Information

• Brand: Penn Vent
• MPN: 63750-0

Technical Specifications

• Motor Horsepower: 1/3 HP
• Motor Voltage: 115V
• Frequency: 60 Hz
• Number of Speeds: 3
• Motor RPM: 1550/1300/1050
• Motor Phase: 1 Ph
• Current: 5.8 Amps
• Insulation Class: Class B
• Ambient Temperature: 50 degrees C
• Motor Type: PSC
• Capacitor: 10MFD Included
• Shaft Dimensions: 1/2 x 5-1/2 with 1 Flat center
• Rotation: CW Shaft End
• Motor Diameter: 5 5/8 inches
• Motor Case Length: 7 inches
