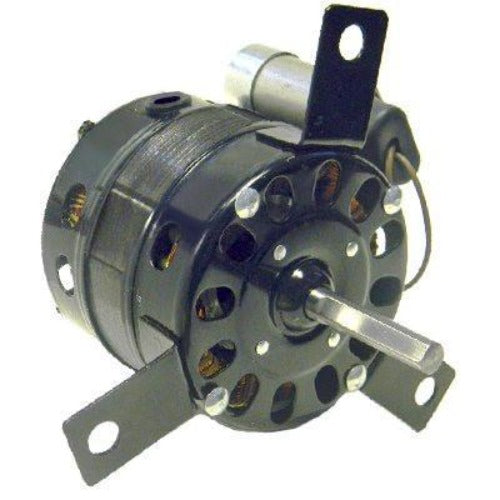

PENN VENT 63748-0 Electric Motor

Product Description

The PENN VENT 63748-0 is an electric motor designed for ventilation systems and a variety of applications. This motor is of the permanent split capacitor (PSC) type, ensuring reliable operation.

• Shaft dimensions: 1/2 inches by 2-5/8 inches
• Thermally protected with sleeve bearings
• Rotation: CW shaft end (CWSE)

Product Highlights

This motor operates at multiple speeds, making it versatile for different ventilation needs.

Product Information

Standard Information

• Manufacturer Part Number: 63748-0
• Horsepower: 1/6 HP

Technical Specifications

• Input Voltage: 115 V
• Frequency: 50/60 Hz
• Output Current: 2.1/1.9/1.4 amps
• RPM: 1550/1300/1050
• Speed: 3-Speed
• Shaft Dimensions: 1/2 x 2-5/8 inches
• Rotation: CW Shaft End
• Motor Diameter: 3.3 inches
• Bearing Type: Sleeve Bearing
• Capacitor: 10 MFD
• Weight: 13 lbs
• Enclosure: Open Drip-Proof
• Mounting Type: 3 Lug Mounting
• Thermal Protection: Thermally Protected
