Penn Vent 63747-0 Electric Motor

Product Description

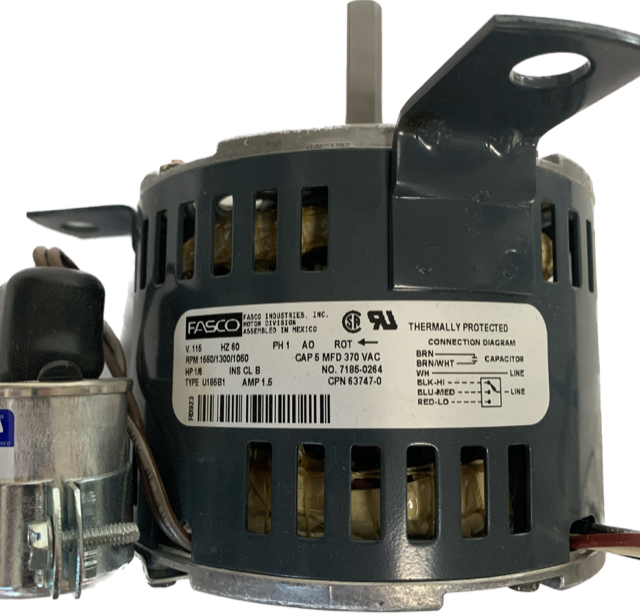

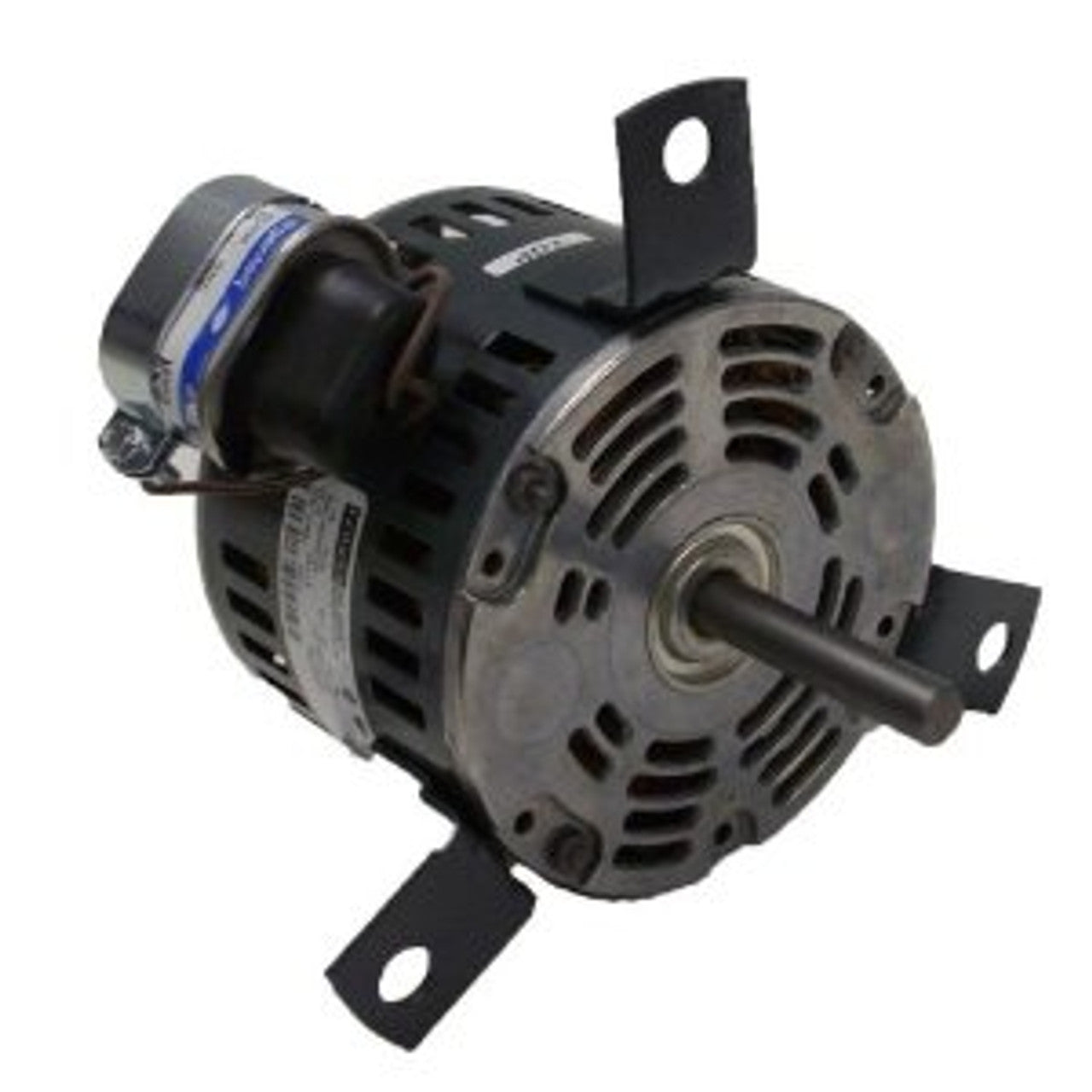

The Penn Vent 63747-0 electric motor is suitable for ventilation tasks. It operates at one hundred fifteen volts and sixty hertz, featuring three distinct speeds of one thousand five hundred fifty, one thousand three hundred, and one thousand fifty RPM. This motor is built with sleeve bearings for durability and rotates clockwise at the shaft end. It is designed for lug mount installation, accommodating specific spacing needs.

• Operates at 115V and 60Hz
• Multiple speeds of 1550/1300/1050 RPM
• Designed for lug mounting

Product Highlights

This motor is ideal for roof-mounted exhaust fans, providing reliable performance in various ventilation scenarios.

Product Information

Standard Information

• Brand: Penn Vent
• MPN: 63747-0

Technical Specifications

• Horsepower: 1/6 hp
• Input Voltage: 115V
• Frequency: 60 Hz
• Output Current: 1.5 amps
• Motor Speed: 3 Speed
• Motor RPM: 1550/1300/1050 RPM
• Shaft Dimensions: 1/2 x 2-1/2
• Rotation: CW Shaft End
• Mounting Type: Lug mounted
• Diameter: 5
• Bearings: Sleeve Bearings
• Enclosure: Open Drip-Proof
• Motor Type: Permanent Split Capacitor
• Weight: 11.00 lbs
• A Dimension: 3-3/4
• Number of Speeds: 3
