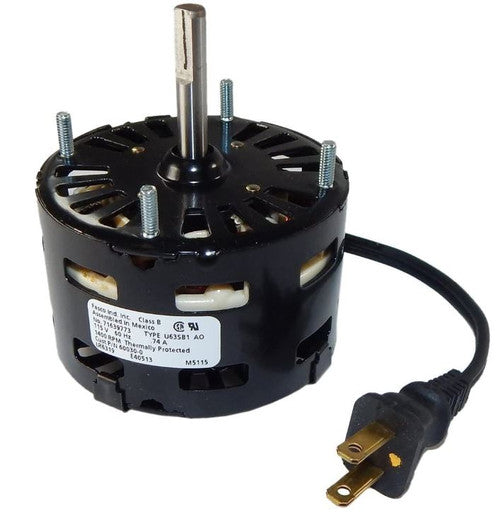

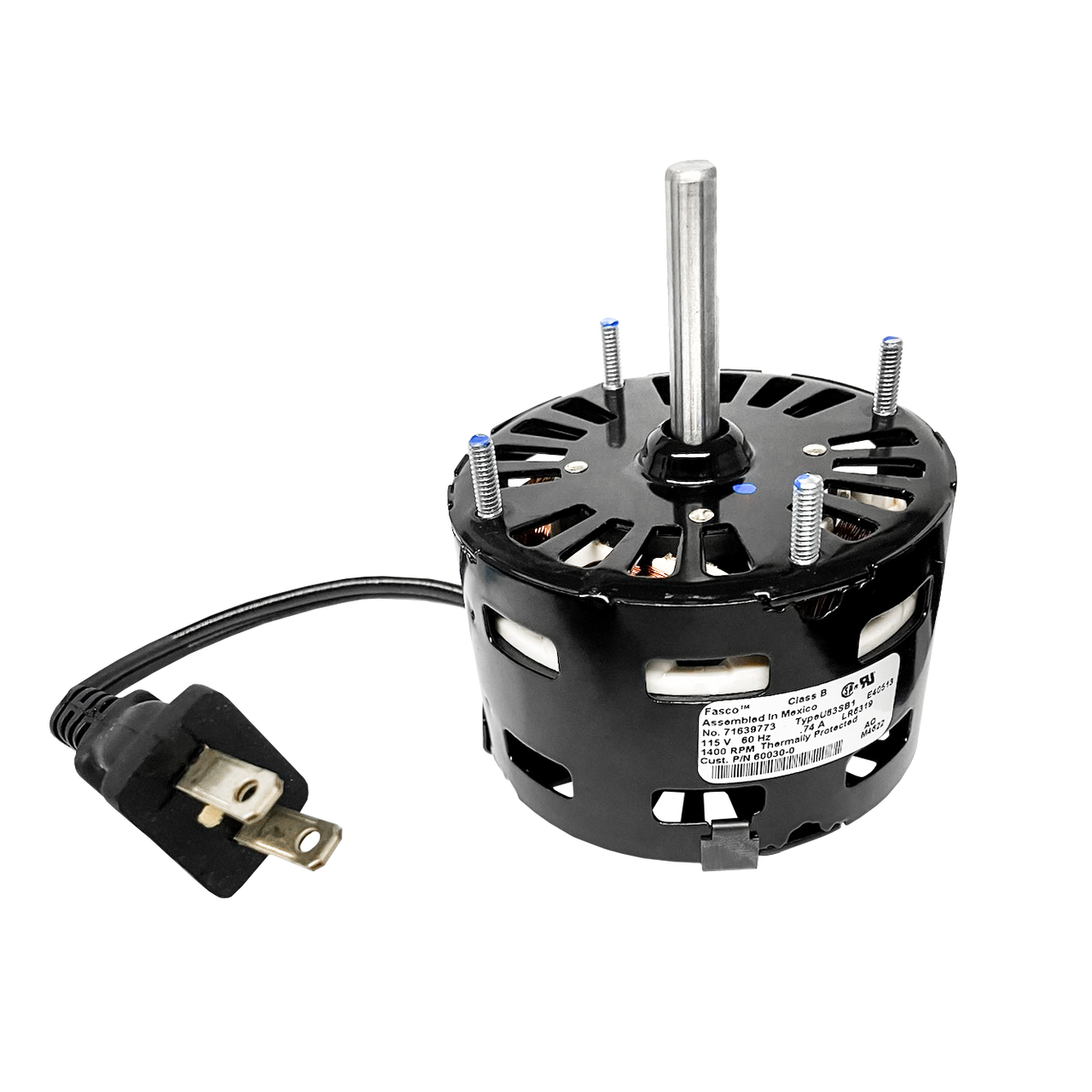

PENN VENT 60030-0 Electric Motor

Product Description

The PENN VENT 60030-0 is an electric motor suitable for ventilation applications. This single-speed motor uses one hundred fifteen volts and operates at approximately one thousand four hundred RPM. It has a shaft with dimensions of five sixteenths inches by one and nine sixteenths inches and features clockwise shaft side rotation. Included with the motor are mounting studs and a two-prong plug for electrical connection. The motor is thermally protected to enhance its operational safety.

• Single-speed design for ventilation needs
• Operates at one hundred fifteen volts
• Durable construction with thermal protection

Product Highlights

This electric motor is designed for effective ventilation in various settings, ensuring reliable operation with safety features.

Product Information

Standard Information

• Manufacturer Part Number: 60030-0
• Horsepower: 1/80

Technical Specifications

• Input Voltage: 115 Volts
• Frequency: 60 Hz
• Output Current: 0.74 amps
• Speed: 1400 RPM
• Rotation: CW shaft side
• Shaft Dimensions: 5/16 x 1-9/16
• Motor Diameter: 3.3
• Motor Case Length: 2
• Number of Speeds: 1-speed
