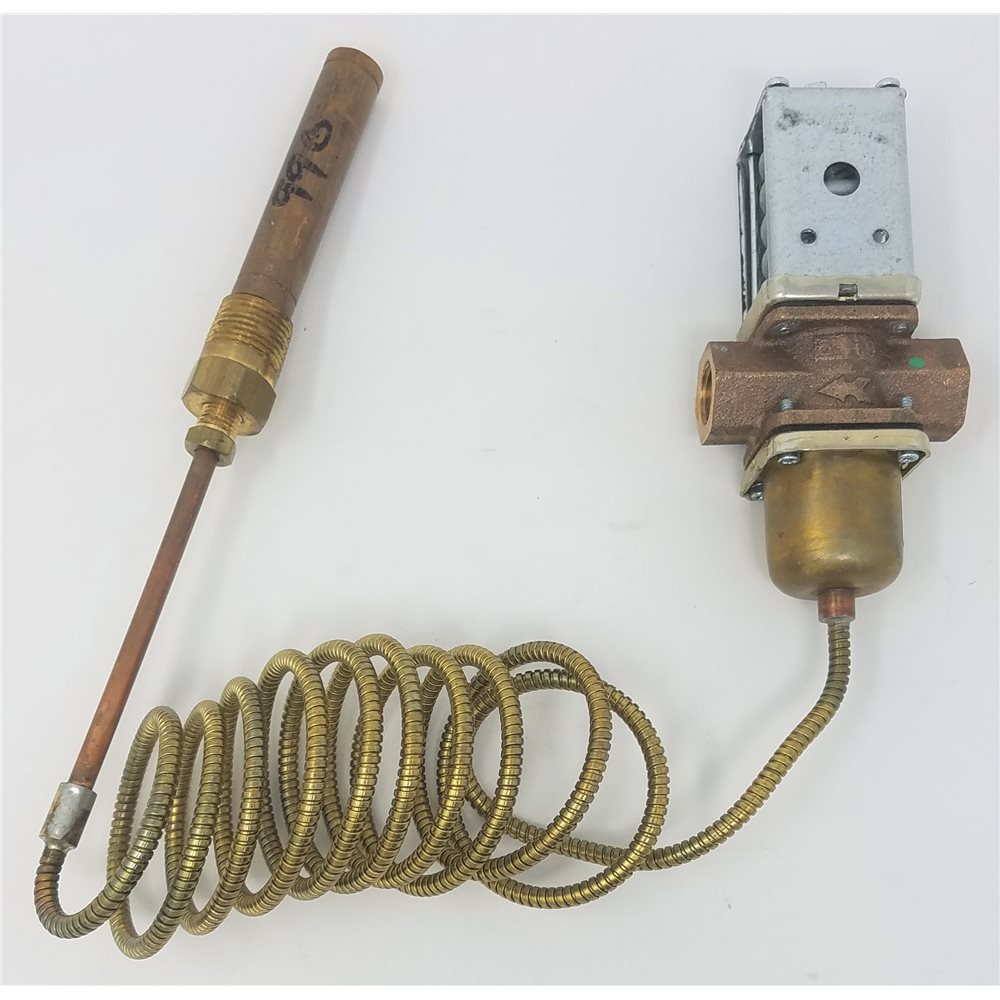

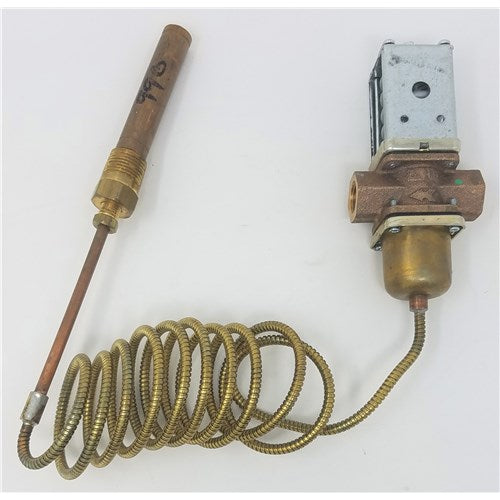

PENN V47AT-1C 2.5 115-160Dg F Temp Valve

Product Description

The PENN V47AT-1C is a two-way temperature control valve designed for commercial applications. This valve operates between 115 to 160 degrees Fahrenheit, making it ideal for heating systems. The four-hole ASME flange connection ensures a secure fit. This valve is compatible with multiple refrigerants including R12, R22, R134A, R502, R404A, and R507.

• Temperature adjustment range: 115-160 F
• Six-foot capillary for flexible installation
• Supports heating only applications

Product Highlights

The V47AT-1C regulates temperature efficiently in various HVAC applications. It is equipped with a capillary sensor to provide accurate temperature readings.

Product Information

Standard Information

• Brand: PENN
• Type: Temperature Control Valve

Technical Specifications

• Capillary: Capillary
• Pipe Size: 2.5 inches
• Item Weight: 30.94 lbs
• Valve Piping: Two-Way
• Connection Type: Four Hole ASME Flange
• Application Type: Commercial
• Refrigerant Type: R12, R22, R134A, R502, R404A, R507
• Temperature Action: Heating Only
• Opening Point Media: Temperature
• Connector Description: 6 FT capillary
• High Pressure Refrigerant: Non R410A
• Opening Point Adjustment Range: 115-160 F
