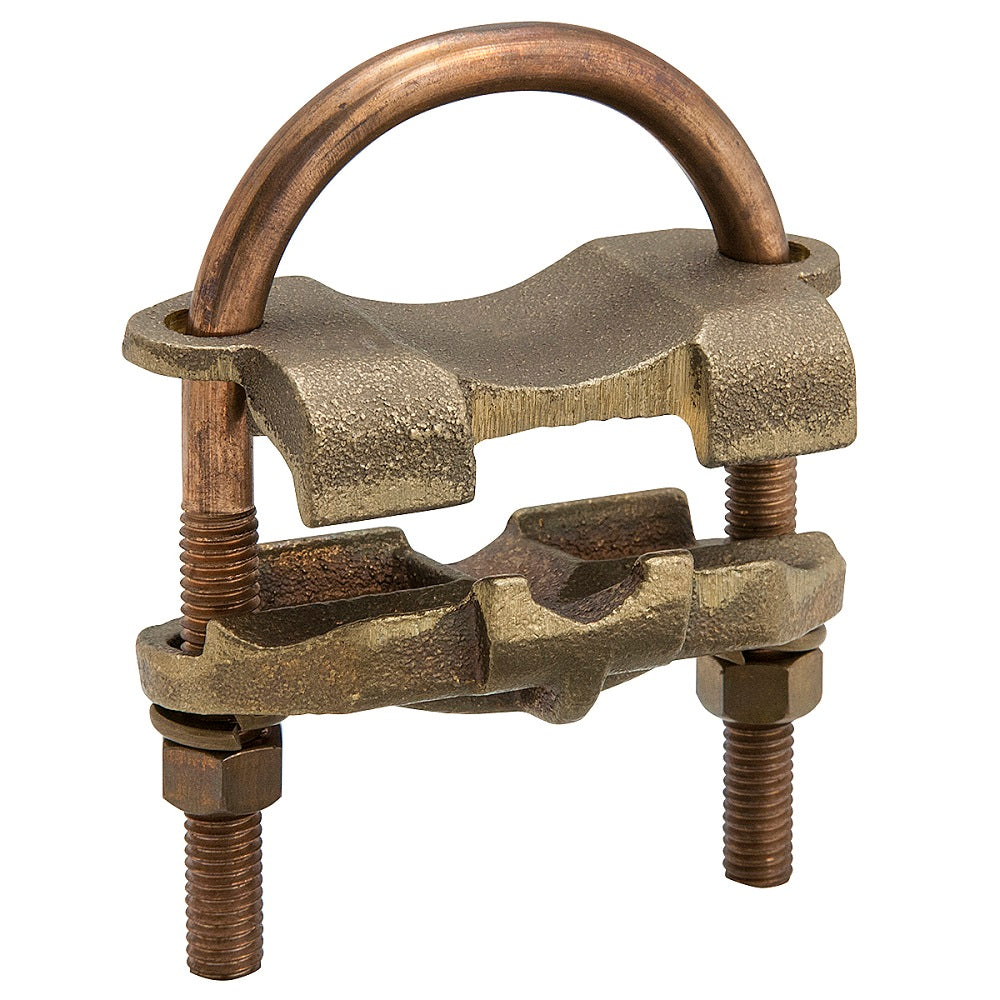

Penn-Union GPL-45 Ground Clamp Connector 4 AWG - 2/0 AWG Accommodates IPS 3 inches

Product Description

The PENN-UNION GPL-45 ground clamp connector is manufactured from high copper content alloy and used to connect a copper ground conductor to a water pipe, rod, or structured tube. It is furnished with a silicon bronze U-bolt, nuts, and lock washers for corrosion resistance. The design allows the ground conductor to run parallel to the pipe or be installed at a right angle.

• Manufactured from high copper content alloy
• Used to connect copper ground conductor to water pipe, rod, or structured tube
• Furnished with silicon bronze U-bolt, nuts, and lock washers for corrosion resistance

Product Highlights

This ground clamp is suitable for direct burial in earth or concrete and allows for single wrench installation. UL 467 listed.

Product Information

Standard Information

• Brand: PENN-UNION
• Manufacturer Part Number: GPL-45
• Country of Origin: USA

Technical Specifications

• A (in.): 1.63
• B (in.): 5.50
• C (in.): 4.75
• Bolt Size: 3/8"
• Manufacturer Part Number: GPL45
• Manufacturer: Penn Union
• Product Series: GPL
• Family Series: Penn Union Grounding, GPL Series
• Description: Bronze Ground Clamp Connector
• Number of Conductors: 1
• Conductor Size: 4 - 2/0 sol.
• Material: Bronze
• Compression Style: Split Frame U-Bolt Clamp
• For Use With: Ground Rod, Pipe
• Mounting: Direct on Pipe
• Direct Burial: Yes
• Approvals: cULus
• Connection Type: IPS
• Installation: Single wrench
• Pipe Size: 3 in
