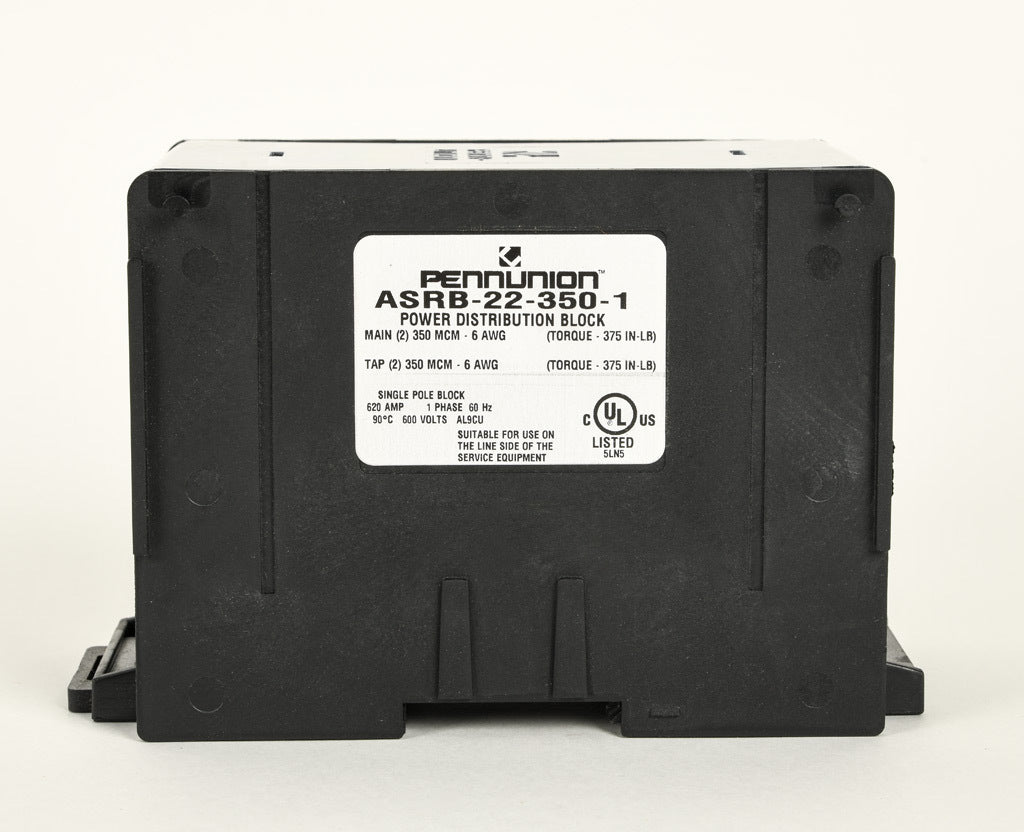

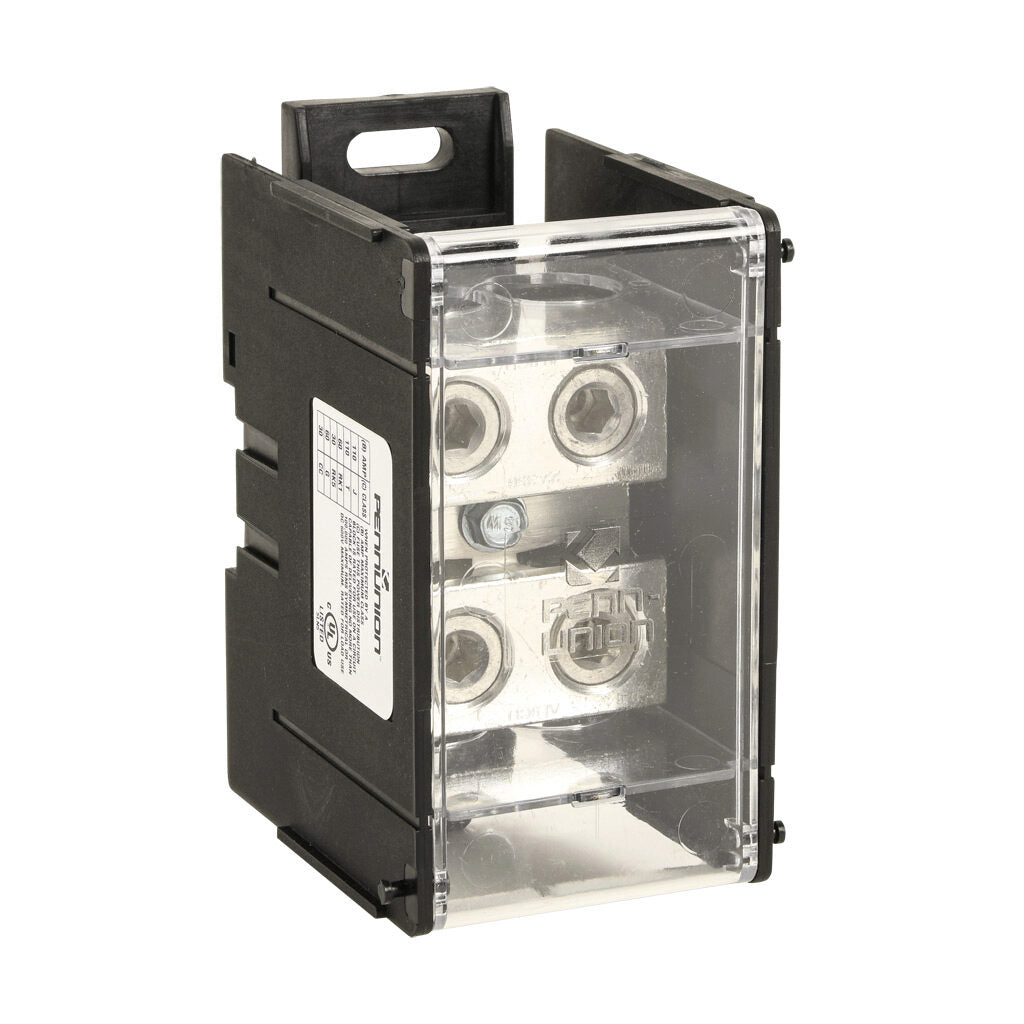

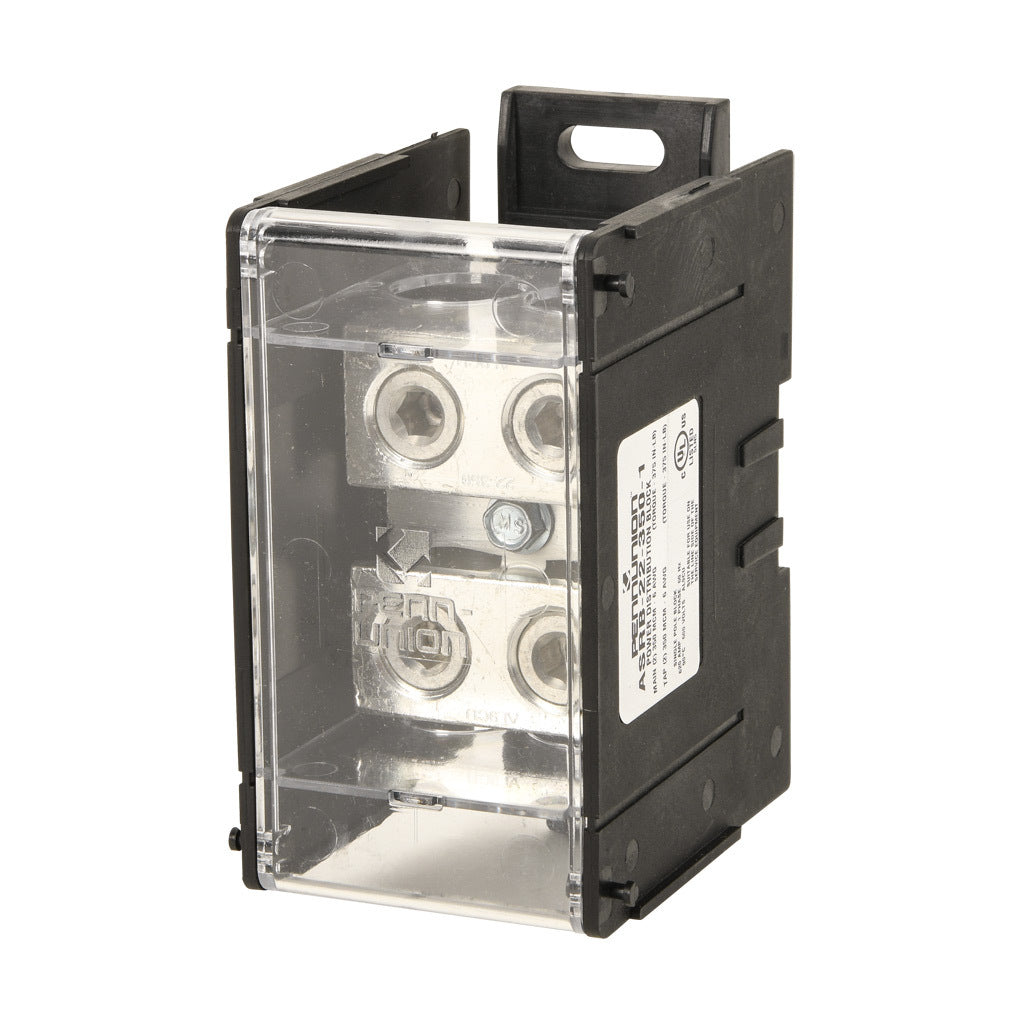

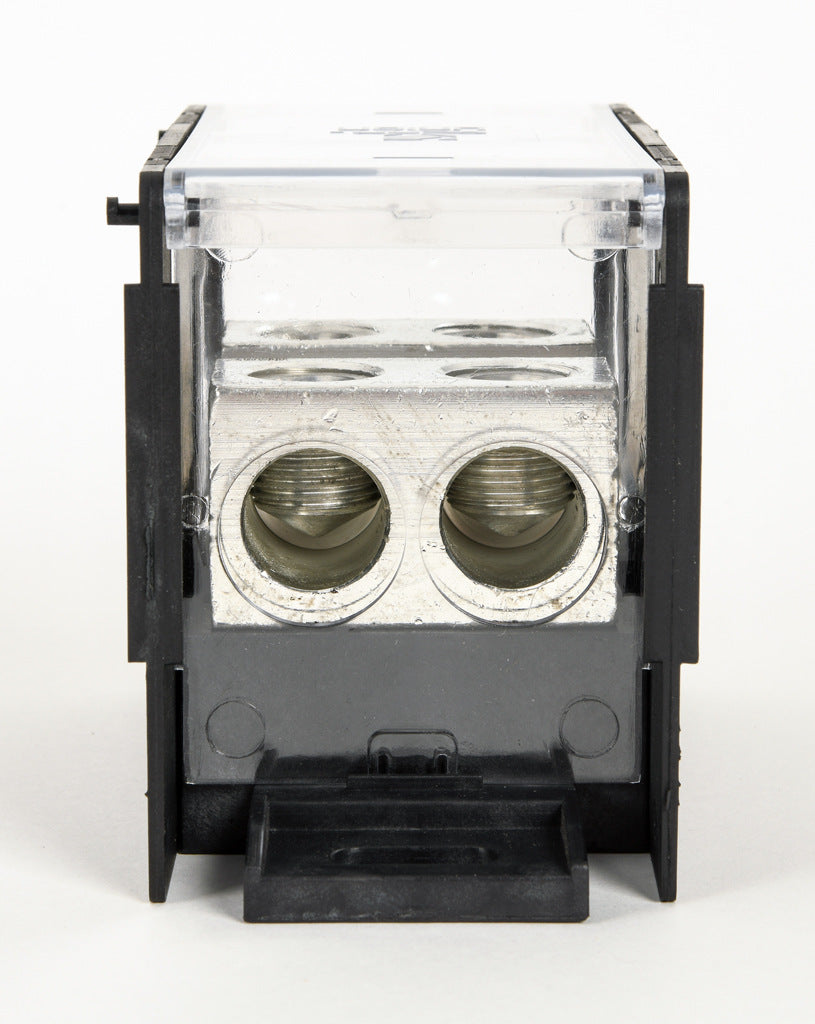

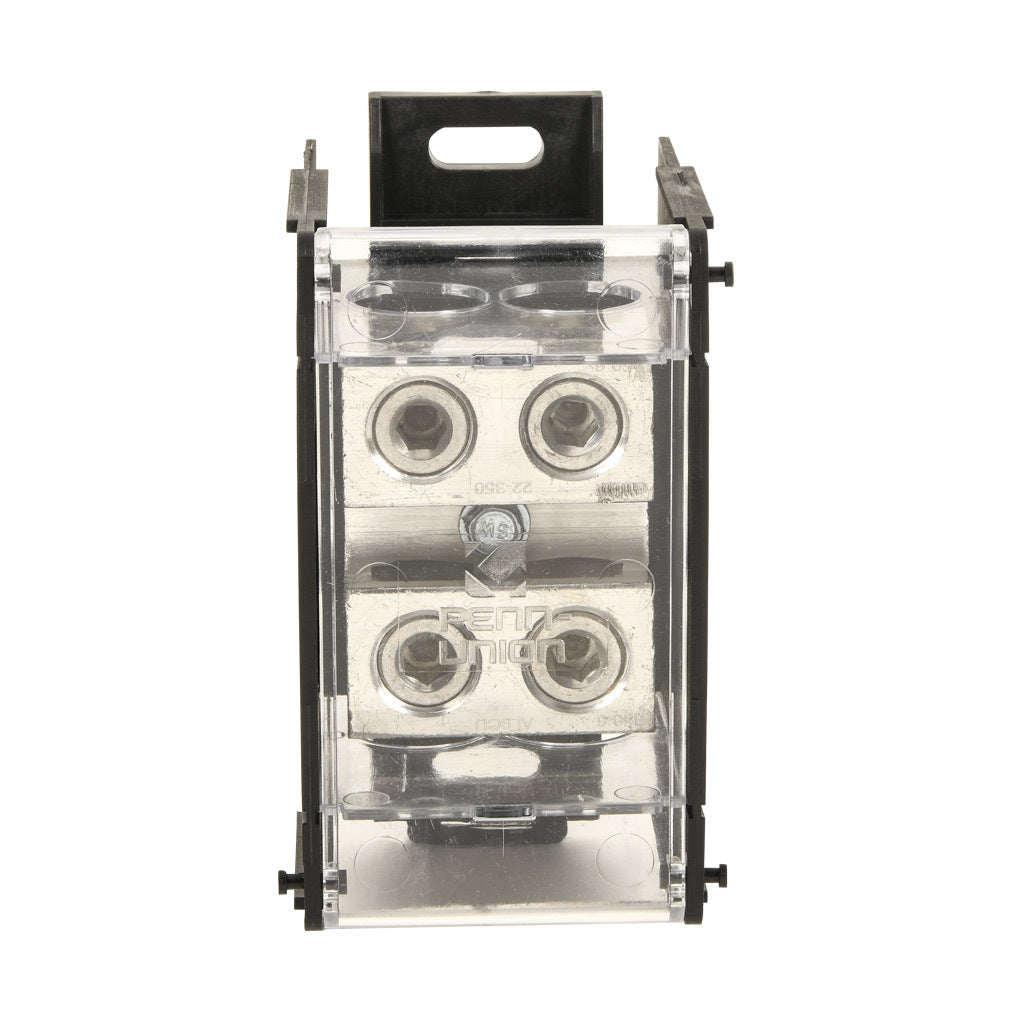

Penn-Union ASRB-22-350-1 Splicer/Reducer Block 620 A (1 Pole)

Product Description

The Penn-Union ASRB-22-350-1 is an open splicer/reducer block rated 620 A that accepts 350 MCM to 6 AWG copper or aluminum conductors on both line and load sides. It is a one-pole, finger-safe, snap-lock modular unit for multi-pole assembly, suitable for DIN rail or panel mounting. The device is UL 1953 listed, IP20 rated, and provides 100 kA SCCR when protected by an appropriate fuse for branch and feeder circuits.

• 620 A current rating; accepts 350 MCM to 6 AWG copper or aluminum on line and load sides
• One-pole, finger-safe open terminal with snap-lock modular design for multi-pole assembly
• Mounting to DIN rail or panel; UL 1953 listed, IP20 rated, 100 kA SCCR when protected by suitable fuse

Product Highlights

One-pole modular splicer for 350 MCM–6 AWG Cu/Al conductors, 620 A, UL 1953, IP20

Product Information

Standard Information

• Brand: PENN-UNION
• Manufacturer Part Number: ASRB-22-350-1
• Country of Origin: INDIA

Technical Specifications

• Brand: Penn-Union
• Manufacturer Part Number: ASRB-22-350-1
• Product Type: Splicer/Reducer Block
• Terminal Block Type: Open
• Modular: Yes
• Finger-safe: Yes
• Current Rating: 620 A
• Poles: 1
• Line Side Conductor Range: 350 MCM to 6 AWG copper or aluminum
• Load Side Conductor Range: 350 MCM to 6 AWG copper or aluminum
• Mounting Type: DIN rail or panel
• SCCR Rating: 100 kA SCCR (when protected by a suitable fuse)
• Certifications: UL 1953 listed
• IP Rating: IP20
• Application: Suitable for branch and feeder circuits
• Country of Origin: India
• Weight: 1.128 lb
• HS Code: 8536.90
