Penn MACHINE 12203015 Pipe Cap 3000 lb 1-1/2 in

Product Description

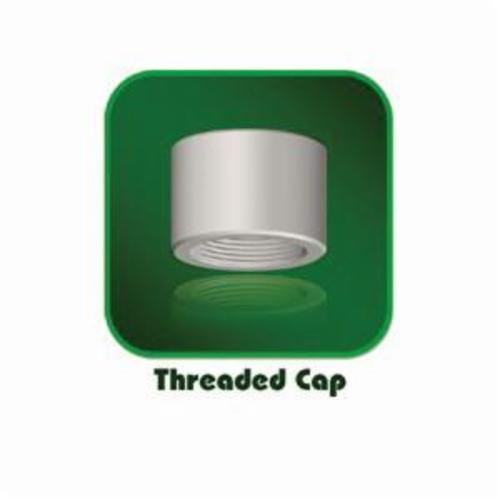

Penn MACHINE offers the 12203015 Pipe Cap. This fitting is designed for use in various piping systems. It features a nominal size of one and a half inches and is constructed from durable carbon steel. The cap has an NPT end style and a length of one and three-quarters inches. It is rated for up to 3000 lbs, making it suitable for heavy-duty applications.

• Made of forged carbon steel
• Rated for high pressures up to 3000 lbs
• Suitable for NPT connections

Product Highlights

This pipe cap is reliable for pressure applications and ideal for use in industrial piping systems.

Product Information

Standard Information

• Manufacturer: Penn MACHINE
• Part Number: 12203015

Technical Specifications

• Construction: Forged
• Dimensions: 2-1/2 in OD
• End Style: NPT
• Fitting Type: Cap
• Length: 1-3/4 in
• Material: Carbon Steel
• Nominal Size: 1-1/2 in
• Schedule Rating: SCH 160
• Standards/Approvals: ASME B16.11/B1.20.1-1983/ANSI Specified|ASTM A105|UNS K03504|PED Certified Canadian Registered in all provinces
